• Model NO.：DM260
• Transport Package：Bare Packing
• Trademark：KINGSMAN
• Origin：China
• HS Code：8401200000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. DM260 Transport Package Bare Packing Trademark KINGSMAN Origin China HS Code 8401200000 Production Capacity 20 Sets/Year

Product Description

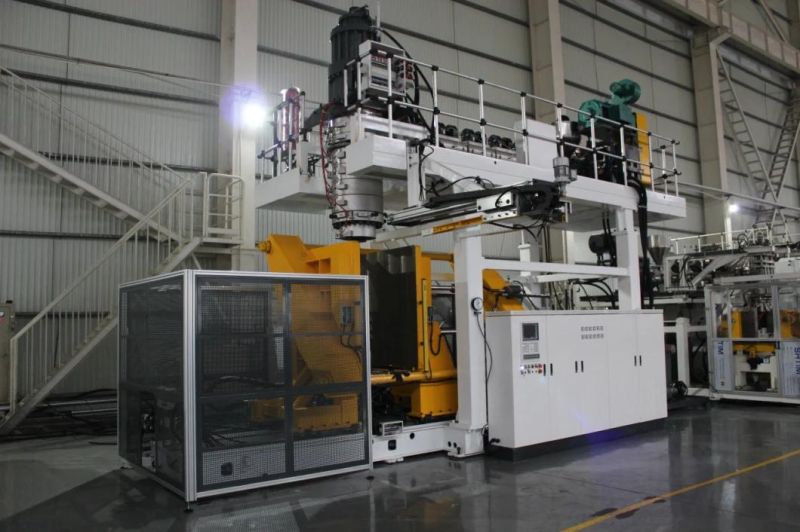

Technical Data for Blow Molding DM260
General Issues

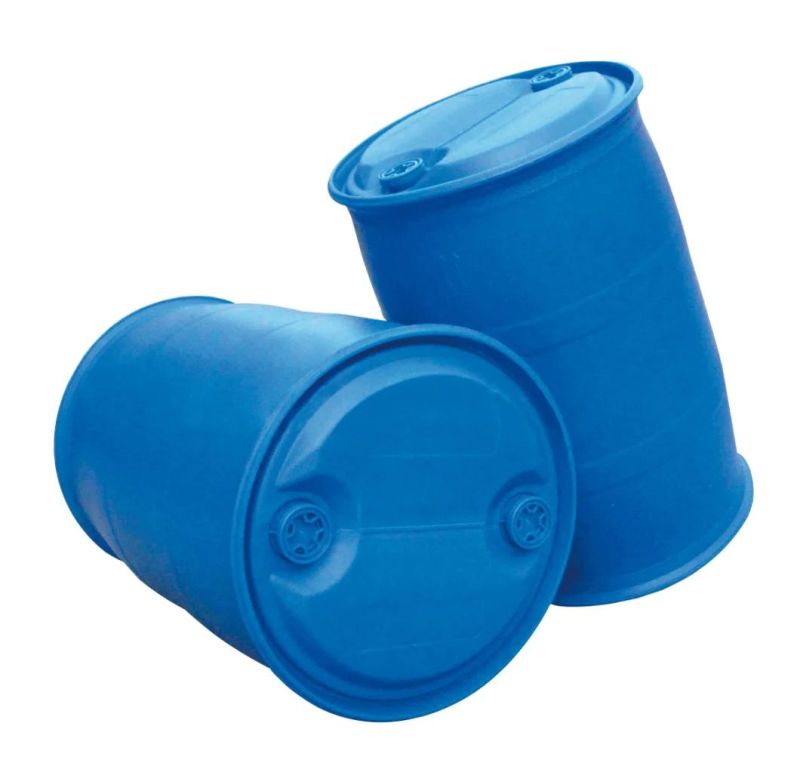

  volume of product:  single cavity 260 L
  weight 33 ton
  output :20 pcs/h

Clamping Unit
Principle: bi-direction synchronous clamping device with double axis
Linear roller guidance horizontal (HIWIN)
Clamping force: 750KN
Mold platens H x W: 1500 x 1000 mm
 Distance between the platens: 750-1750 mm
Clamping unit stroke:1000 mm

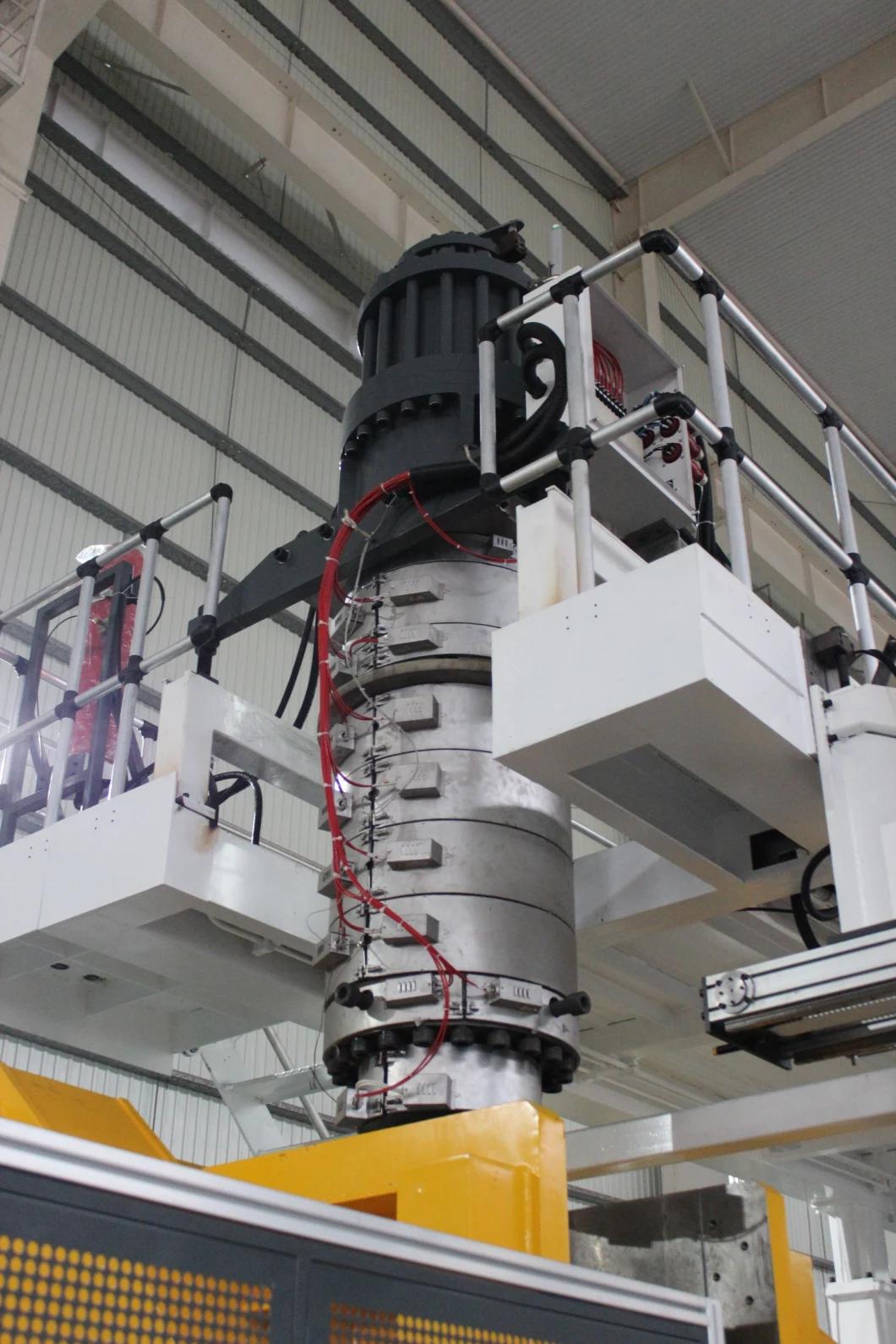

Die Head
Type of die head: accumulator. With Ceramic heater
 Max. storage volume: 20L
100 point WDS system controller
Power of heating: 52 KW

 Extruder system
Screw diameter: 120/30D
Nitride treatment barrel and screw.
Plasticizing efficiency: 400kg/h (HDPE)
AC motor drive: 132KW
Cooling by five cooling fans.

Blow System(optional)
 Blow system mounted on linear guide under mold
 Height adjustment mechanism 250 mm
 Blow pin up/down stroke: 150 mm, controlled by hydraulic cylinder.
 Parison close
 Mechanical adjustment for left and right

Take out system
Take out stroke 1000mm
 Adopt Linear Guide and Synchronous belt transmission of motor to advance and retreat
Gripper with the function :auto cooling water

Servo Hydraulic System
Servo system REXROTH Servo Pump (200L)+ Servo Motor  (22KW)  Or DAIKIN brand
Hydraulic valves: YUKEN
Oil Temperature sensor showing the screen
Motor power: 22 KW+7.5KW
Servo valve:REXROTH

Pneumatic System
Pneumatic cylinders AIRTEC
Pneumatic valves : AIRTC
Max. pressure of gauge: 10 bar
Air consumptions: 3 m³/min

Control System
Control System: B&R
Servo WDS control system: B&R 100 points
Total rated power: 250 KW
 Average energy consumption: 110 KW
Main components (Air switch, Contactor): SCHNEIDER  ; intermediate relay: SCHNEIDER
Servo Driver: DAIKIN


for more informations, pls visit web: kingsmantech.en.made-in-china.com

KINGSMAN Company is the leadership of Extrusion blow moulding machine manufacturer Which had long-Term cooperation with KUATEX TEXTRON company from year 2010-2013 for 6 layer fuel tank machine.
KINGSMAN Company is espeicalized in Automatic Blow Moulding machine with High production.and now focus on Servo hydraulic machine for energy saving.
