• Model NO.：PNHS
• Certification：ISO9001:2008, CE
• Size：Variable
• Color：Optional
• Weight：Variable
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：WANROOETECH
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：84778000
• Production Capacity：200-800kg,H

Basic Info.

Model NO. PNHS Certification ISO9001:2008, CE Size Variable Color Optional Weight Variable Transport Package Standard Export Packing Specification CE Trademark WANROOETECH Origin Zhangjiagang, Jiangsu, China HS Code 84778000 Production Capacity 200-800kg/H

Product Description

Waste PP PE Film Bag Recycling Plastic Granule/Pellet Squeezer Dryer Making/Squeezing/Dewatering/Pelletizing/Granulating Machine by Chinese Factory

Applications:

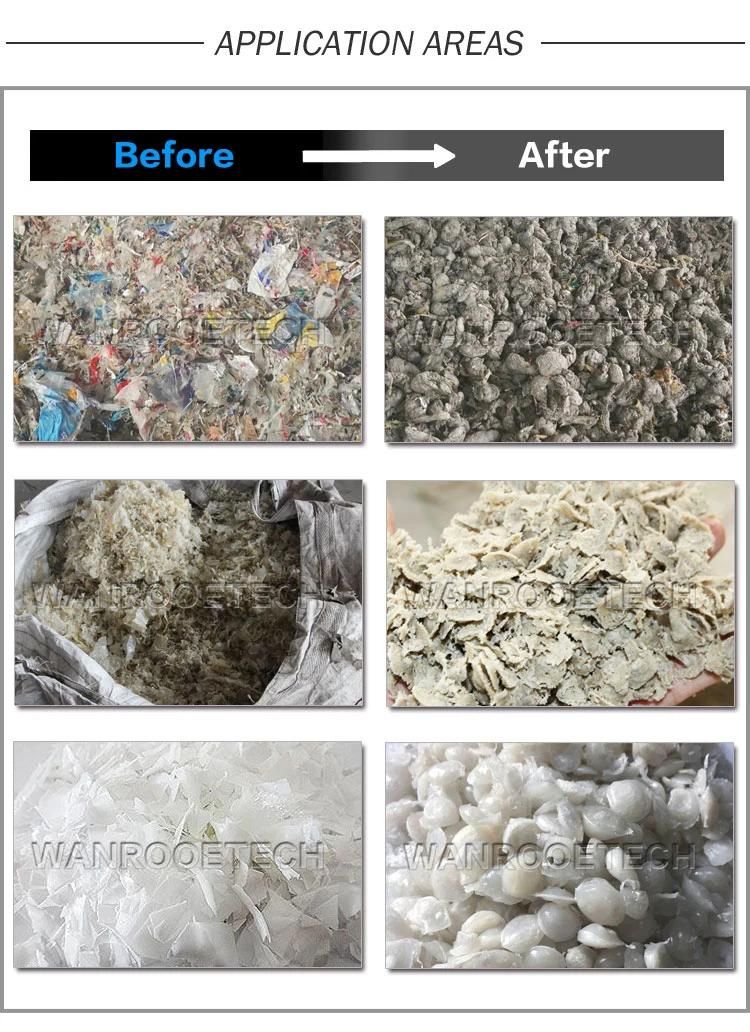

Plastic film squeezing pelletizing machine is used for squeezing and re-pelletizing plastic film, PP film, PE film, agricultural film, industrial film, BOPP plastic film, printed film and etc. it's equipped with advanced screw extrusion system, squeezing efficiency could reach 95%. Also can work on the accordance with washing and pelletizing line with stable capacity and whole process automation.

Description:
Plastic Film Squeezing & Pelletizing Machine is used for drying those washed film, woven bags etc. and make it like granules. After that, the granules can put into the extruder directly.
plastic film squeezing pelletizing machine is a full automatic Squeezing & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.
In the waste plastic film recycling industry, the washed films retain more than 30% water content as usual. With such high moisture content during the plastic recycling process, it would become inefficient and difficult to granulate the washed films with good quality. The lower moisture, the higher quality and efficiency for pelletizing. So a dewatering machine with good efficiency is very important. That's why WANROOETECH launched the plastic film squeezing pelletizing machine.

Features:

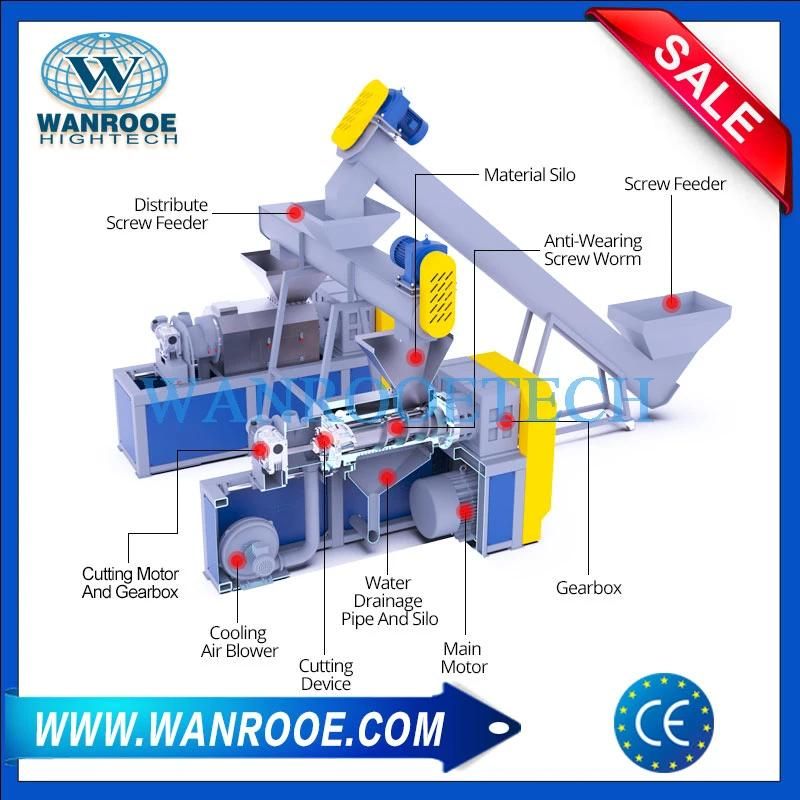

1. plastic film squeezing pelletizing machine is our new designed machine, made by the advanced Italian techniques, especially screw pressing design;
2. plastic film squeezing pelletizing machine is equipped with an electric control cabinet, feeder mouth is easy to control the drying effect;
3. plastic film squeezing pelletizing machine is especially for plastic film, plastic bags, woven bags, jumbo bags, solve the drying problem in the past.
4. Instead of the dewatering machine, the hot blower in the recycling line, and energy-saving equipment.
5. Easy to operate, the drying effect can reach 97%-98%.
6. More power saving, low moisture, less required area and long life.
7. with die-face hot cutter. It can make the films be granules shape to reduce the volume for storage and transportation.
Product Detail

Technical Parameters:

Specification	PNSP-250	PNSP-300	PNSP-350	PNSP-500
Main Motor Power	75kw	90/110Kw	110/132kw	113/6kw
Cutting Power	4kw	5.5Kw	7.5kw	7.5Kw
Capacity(kg/h)	200-300kg/h	300-500kg/h	400-800kg/h	500-1000kg/h
Air Blower	5.5kw	7.5kw	7.5kw	7.5kw
Moisture	1%-3%	1%-3%	1%-3%	1%-3%

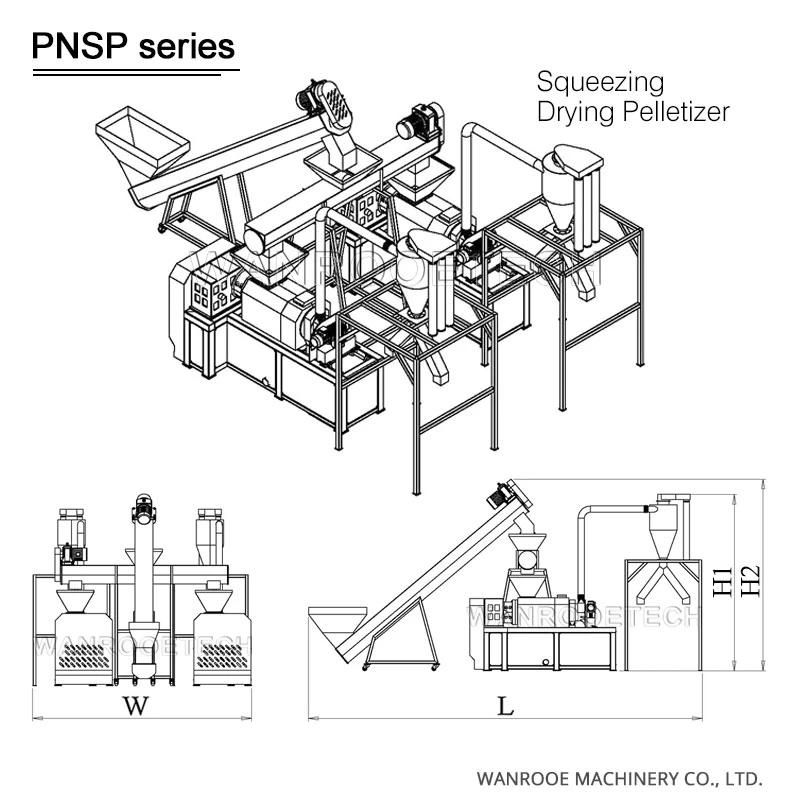

Dimensions(L*W*H)	4260*8240*4033mm	4660*8520*4160mm	5060*8800*4287mm	5460*9080*4414mm

 Factory Show :

Our Service 1. One year guarantee for the whole machine.
2.24 hours of technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food, and the hotel is to the customer's account.
4. After a year, we can instruct you on how to maintain the machine, and spare parts are provided at the best price.
5. We also can provide training services which help operators handle the machine well.
