• Model NO.：TSK40,55,65,75,85
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Condition：Brand New
• Coating：Powder Coated
• Certification：ISO, CE, SGS
• Transport Package：Pallet, Wooden Box
• Specification：TSK 22,30,35,40,55,65,75,85
• Trademark：Jatchen
• Origin：China
• HS Code：84779000
• Production Capacity：120 Pieces,Year

Basic Info.

Model NO. TSK40/55/65/75/85 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Condition Brand New Coating Powder Coated Certification ISO, CE, SGS Transport Package Pallet, Wooden Box Specification TSK 22/30/35/40/55/65/75/85 Trademark Jatchen Origin China HS Code 84779000 Production Capacity 120 Pieces/Year

Product Description

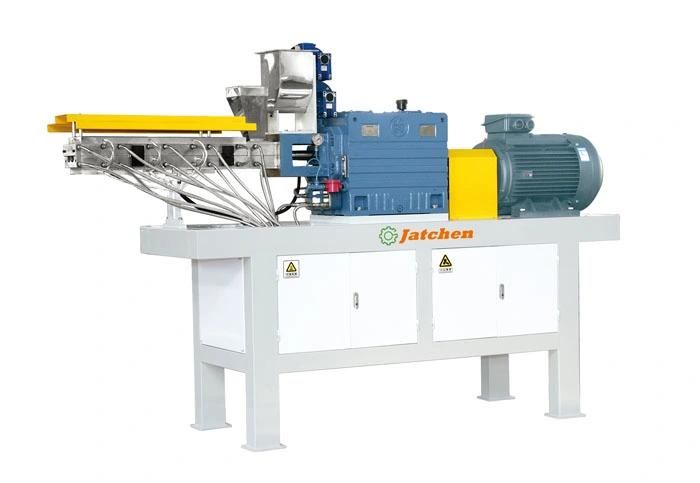

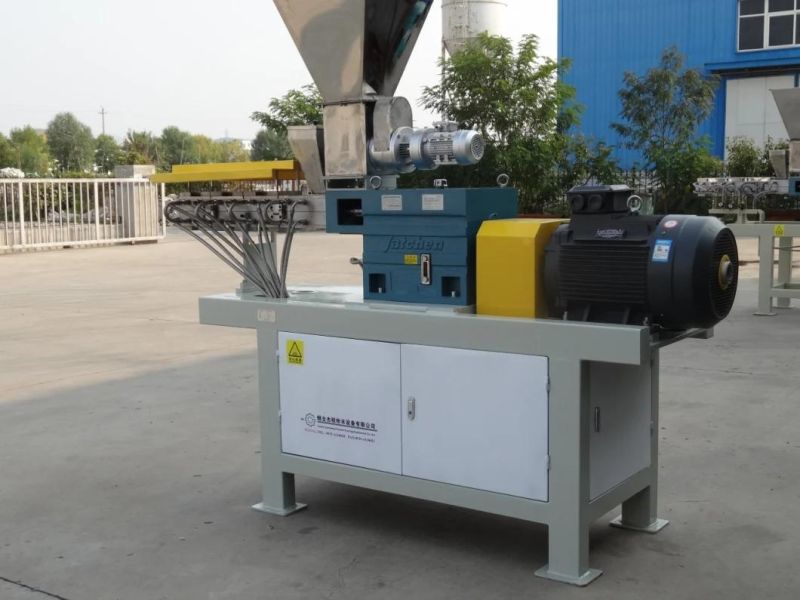

High Speed Twin Screw Extruder of TSK series

Twin Screw extruder of series TSK is designed with co-rotating twin screws with two independent lubrication system . The raw materials in barrel is perfectly dispersed and homogenizing under melted state by precisely meshing between two screw bushes and mixing blocks. Screw are made of high-grade alloy materials, processed precisely, assures a long working lifetime.




Features:


1. High speed of screw shafts resulting high throughput and perfect dispersion.

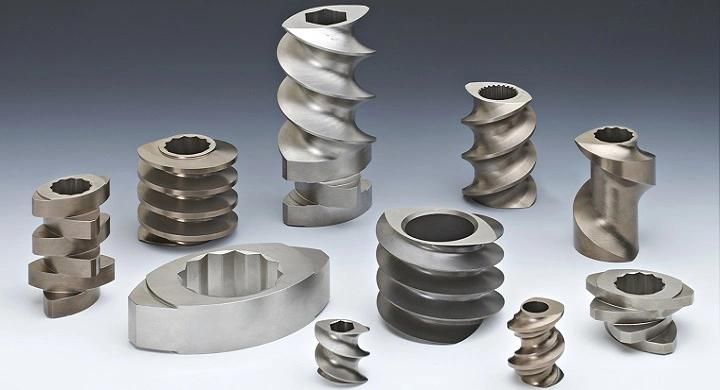

2. Easy to change the configuration of kneading blocks
3. shearing and kneading actions are excellent with strong self-cleaning capability.

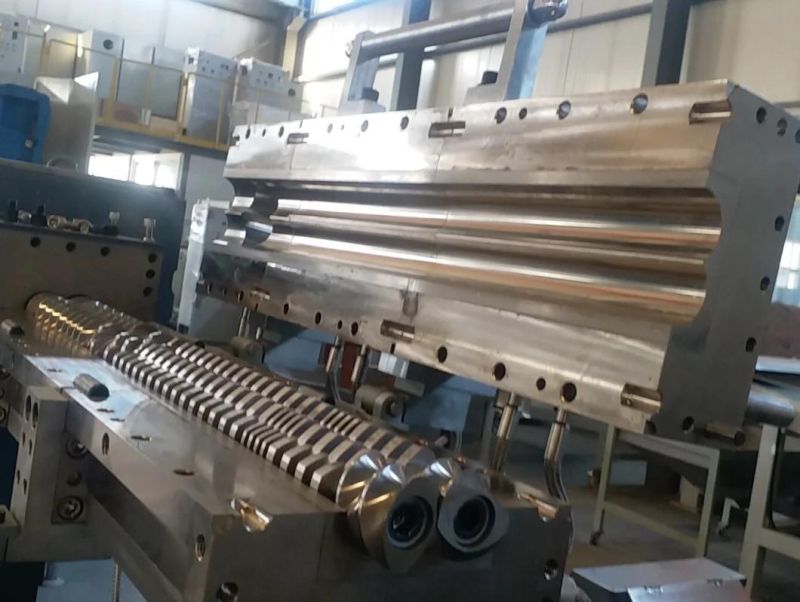

4. Barrel is designed as openable two-half parts with liner inserts for easy cleaning and maintenance.
5. High efficient heat-exchanging system of barrel and automatic temperature control system.
6. Feeding volume controlled automatically.
7. Three models of electric control system for option, and easy to operate:

           7.1 Touch screen computer
           7.2 PLC control
           7.3 Normal control      8. The series of TSK is configured with a high-torque, low-noise, high-efficiency gearbox, lubrication and           cooling system are independent for gearbox.      9. Adopt elastic torque protection      10.Excellent self-clean ability      11. Easy to maintenance
      12. Safe to operate.




Technical Parameters:

Model	Thoughput (Kg/h)	Screw Diameter (mm)	Screw Length  (L/D)	Main Motor  (KW)	Screw Speed  (rpm)	Feeder Motor  (KW)	Heating/Cooling Zone	Dimension (m*m*m)
TSK40H	150-200	40	16D	18.5	600	0.55	3/1	2.2*0.6*1.7
TSK55A/55H	300	55	16D	30	750/600	1.1	3/1	2.8*0.8*1.8
TSK55B/TSK55BH	400	55	16D	37	750/600	1.1	3/1	2.8*0.8*1.8
TSK65A/TSK65AH	500	65	16D	45	700/600	1.5	3/1	3.3*0.8*2.3
TSK65B/TSK65BH	600	65	16D	55	700/600	1.5	3/1	3.3*0.8*2.3
TSK75/75H	600/800	75	16D	55/75	600/800	1.5	3/1	3.6*1.0*2.8
TSK85/85H	1000/1500	85	16D	90/110	600/800	2.2	3/1	4.5*1.0*2.8



Company Introduction

Yantai Jatchen Powder Coating Processing Equipment Co., Ltd, established in 2011, which specialized in researching and manufacturing of powder coating processing equipment with strong technical team and rich experience. We passed CE certification approval and ATEX explosion resistant test, etc. international standards, "Quality first, Credit first and customer first" is our eternal pursuit. We are committed to provide commissioning and installation support, formulation guidance and 24-hour after-sale service.
Our products have been successfully exported to many countries and regions. like America, Brazil, Canada, India, Turkey, etc. We sincerely welcome you to our company for business visit. we'll try our best to provide the best equipment and solutions to our customers.

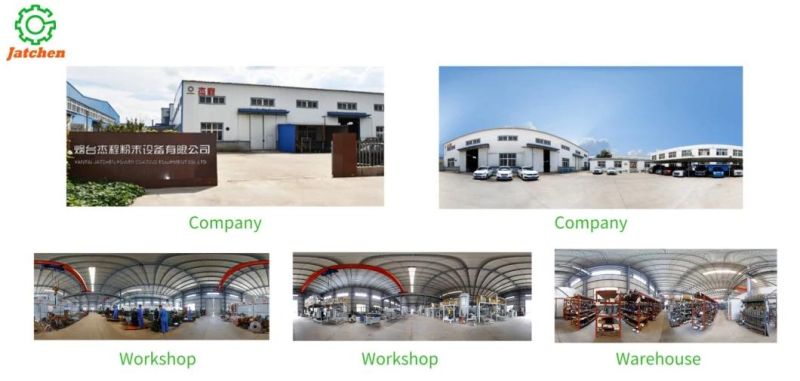

Workshop

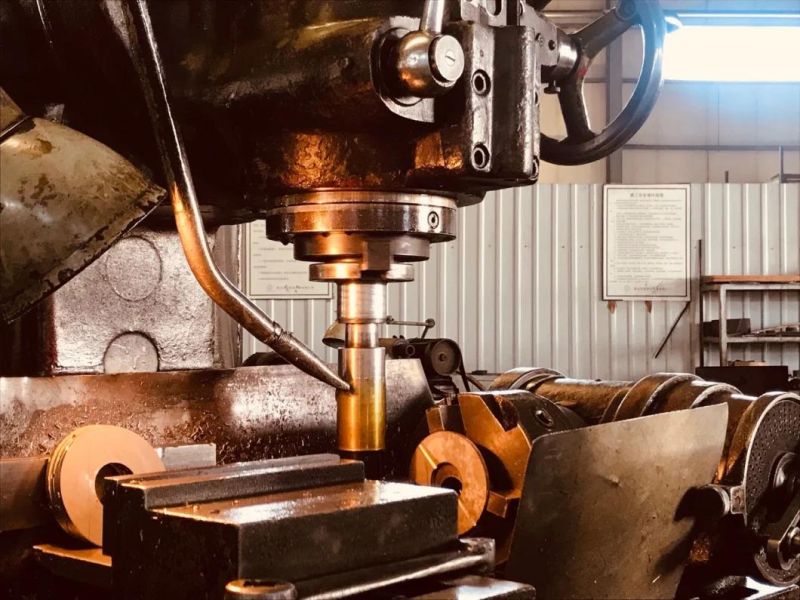

1. With highly advanced & precise machining center
2. With well-trained & experienced workers
3. With strict quality control system
4. With EHS & 6S management system





Patent & Qualification:



Why choose us?

"Leading design" + "Excellent performance" + "Best service" = Jatchen's advantages

       1. Leading design: the richest experienced R&D team, more than 20 years only keeping eyes on powder coating industry.
       2. Excellent performance : the miracle particle distribution result, the biggest savings of materials and labor for your clients.

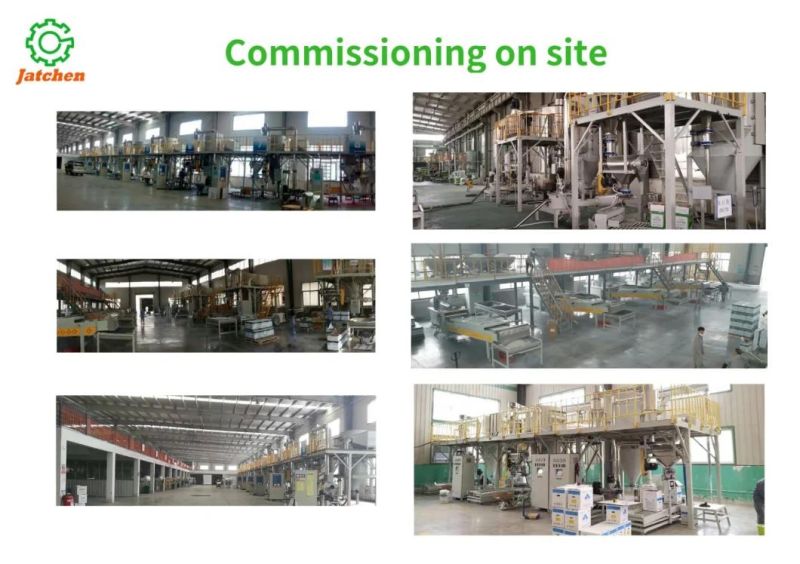

       3. Best service: we are committed to 24-hour service, including video technical support, online support, commissioning on site etc.

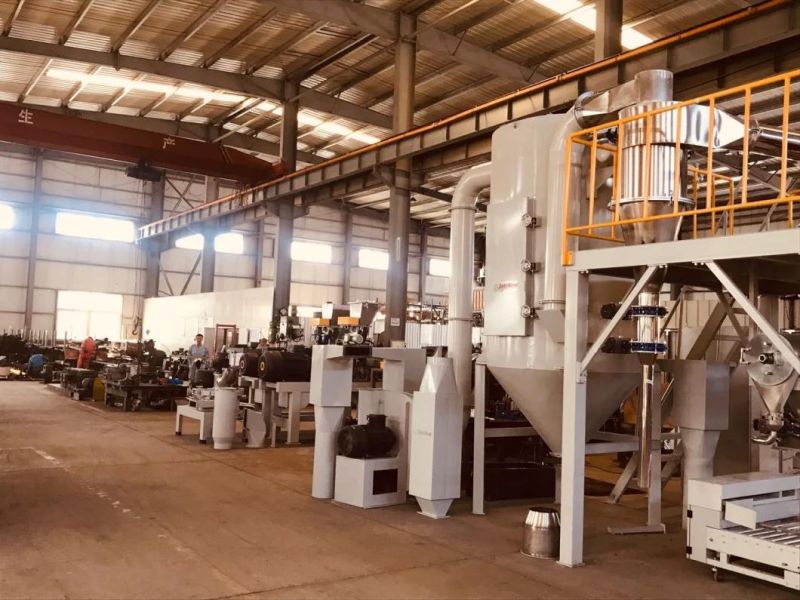

Successful Cases:
