• Model NO.：YRF-Plastic pipe production line
• Customized：Customized
• Condition：New
• Name：PPR Pipe Extruder Machine
• Pipe Diameter：16mm-1100mm
• Capacity：190kg,H
• Gearbox：High Torque
• Screw Barrel：Bimetalic
• Main Motor：Siemens Origional
• Motor Power：75kw
• Inverter：ABB
• Main Electrical Parts：Siemens Schneider
• Transport Package：Wood Case
• Specification：SGS CE
• Trademark：YUREFON
• Origin：Jiangsu, China
• HS Code：84772090
• Production Capacity：200sets,Year

Basic Info.

Model NO. YRF-Plastic pipe production line Customized Customized Condition New Name PPR Pipe Extruder Machine Pipe Diameter 16mm-1100mm Capacity 190kg/H Gearbox High Torque Screw Barrel Bimetalic Main Motor Siemens Origional Motor Power 75kw Inverter ABB Main Electrical Parts Siemens Schneider Transport Package Wood Case Specification SGS CE Trademark YUREFON Origin Jiangsu, China HS Code 84772090 Production Capacity 200sets/Year

Product Description

Plastic PPR/PP/PE Pipe Production Line Dia. 16-1200mm

is mainly used to produce the PPR water supply pipe,
The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

PPR Pipe Application Area:
1. Urban tap water supply, direct drinking water supply and different quality water supply.
2. Coal gas, liquefied gas and natural gas distribution and transportation.
3. Corrosive water drainage.
4. Water conservancy and farm irrigation works.

Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler


Plastic PPR/PP/PE Pipe Production Line Dia. 16-1200mm Main Featrures:
- 30m/min of maximum lineal extrusion speed For 20mm diameter, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
- The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running       of extruder.
- Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
- Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
- High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length     of extrusion line, and improve quality of inner pipe surface;
- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
- Chip-free cutter ensuing flat and smooth cutting surface of pipe.

Main Technical Parameter:

Model	Pipe range (mm)	Capacity (kg/h)	Haulling speed (max.a/min)	Total power (kw)	Line length(m)	Control system
PP-R53A	16-63	100-120	15	15	35	Microcomputer controlled
PP-R53B	16-63	100-120	10	15	35	Electric equipment controlled
PP-R110A	40-110	180-220	6	145	38	Microcomputer controlled
PP-R110B	40-110	180-220	6	145	38	Electric equipment controlled
PP-R160A	50-160	200-250	6	150	38	Microcomputer controlled
PP-R160B	50-160	200-250	6	150	38	Electric equipment controlled

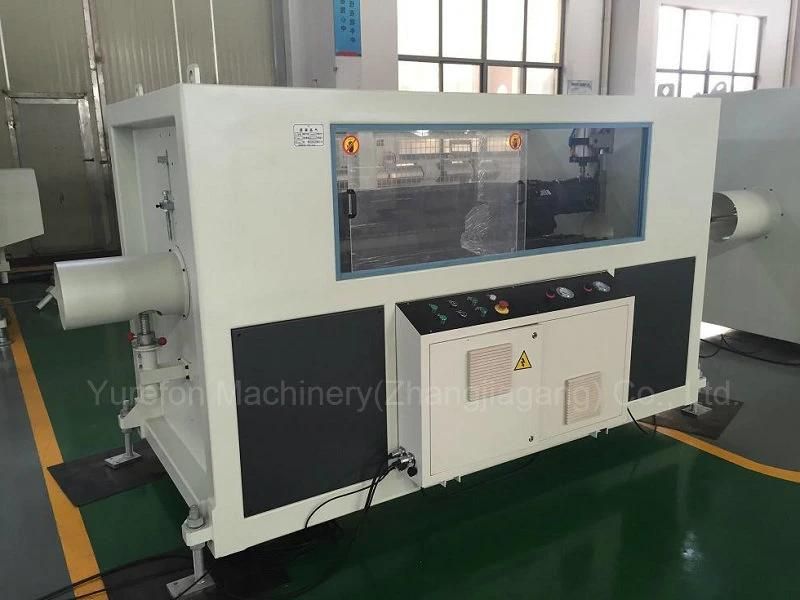

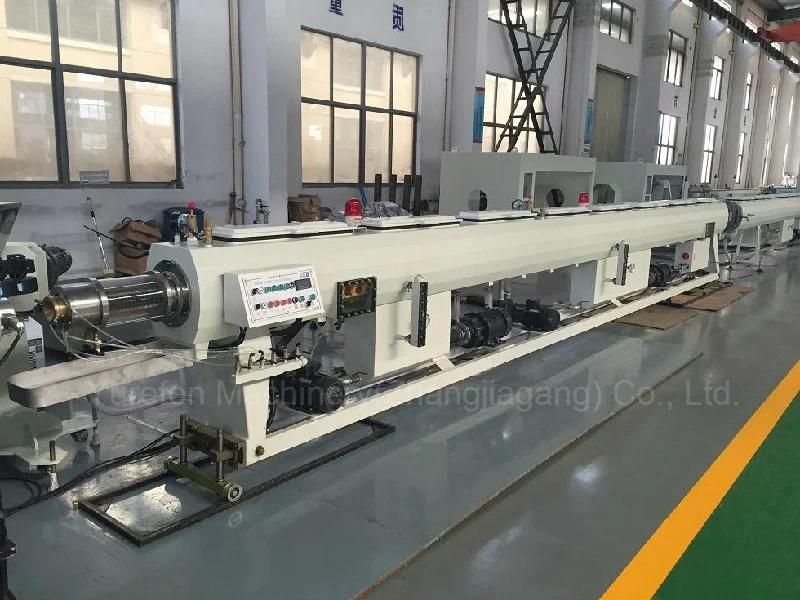

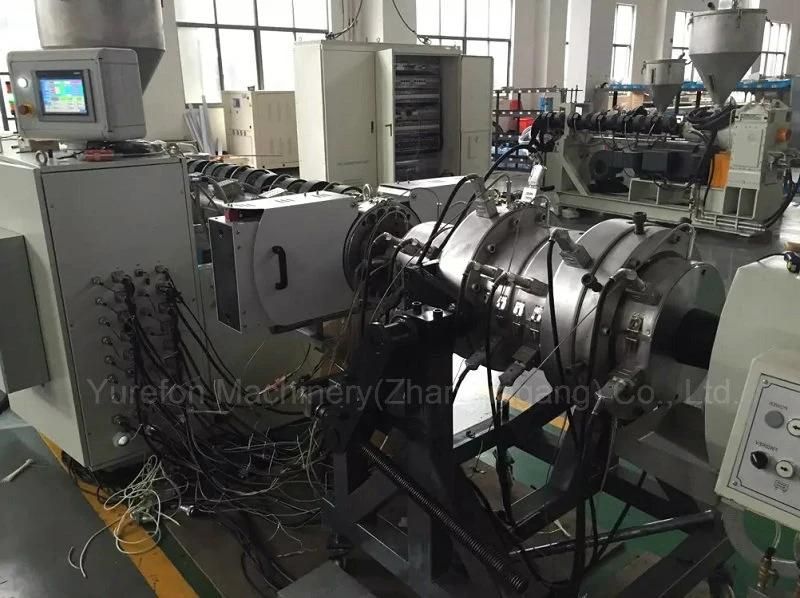

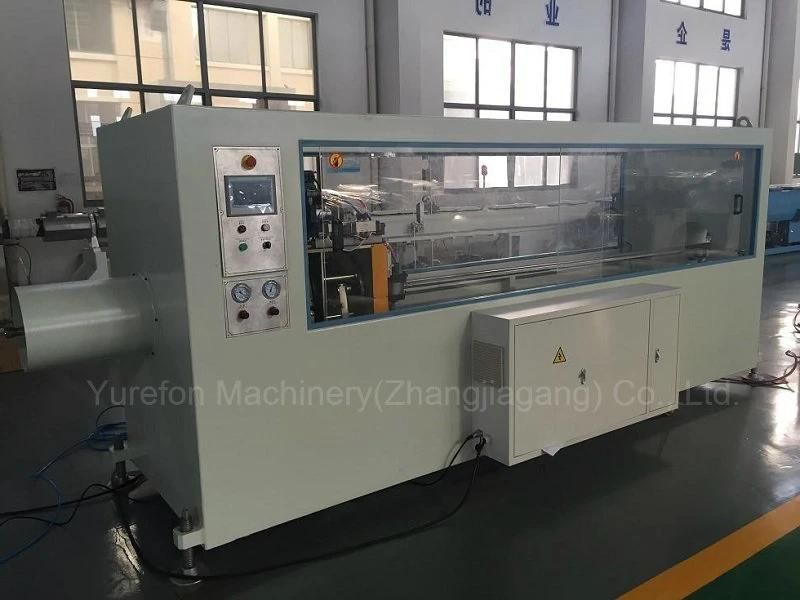

Machine picture:






For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What the pipe diameter you want to produce ?
2). What capacity do you want? (kg/h )
3). What is yout voltage requirement?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
Any question, Please contact us.
