• Model NO.：LSJ-120,33
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Width：1220-2100mm
• Sheet Thickness：1-8mm
• Extruder Model：180,33
• Application：Internal Bladder of Regrigerator,Washing Machine
• T-Die Head：Jc-Times Brand
• Machine Dimension：22m*5m*3.8m
• Delivery Time：90 Days
• Guaranteed Time：12 Months
• Transport Package：Wooden Pallets,Cases with Streching Films
• Specification：LMSB180,33
• Trademark：leader machinery
• Origin：China Qingdao
• HS Code：8477209000
• Production Capacity：18 Sets,Per Year

Basic Info.

Model NO. LSJ-120/33 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Sheet Width 1220-2100mm Sheet Thickness 1-8mm Extruder Model 180/33 Application Internal Bladder of Regrigerator,Washing Machine T-Die Head Jc-Times Brand Machine Dimension 22m*5m*3.8m Delivery Time 90 Days Guaranteed Time 12 Months Transport Package Wooden Pallets/Cases with Streching Films Specification LMSB180/33 Trademark leader machinery Origin China Qingdao HS Code 8477209000 Production Capacity 18 Sets/Per Year

Product Description

PMMA+ABS bathtub sheet/board co-extrusion line

PART 1 INTRODUCTION
This line is used to produce pmma bathtub/sanitary ware sheet. This kind of sheet has such characteristics as high intensity, good temperature resistance, good rot proof, ect. It can be produced with additives to different requirements such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting etc.

PART 2 APPLICATIONS

Compound by pmma-abs co-extrusion, it is very glossy with the property of pmma sheet and it has the advantages of resistance to impact as abs, which is widely used on bathtub, shower room, steam room etc,

PART 3 SPECIFICATIONS
Thickness: 1-8mm, width: 1220-2100mm

Extruder Model	LSJ-120/36, 65/33	LSJ-130/36, 75/33
Suitable material	ABS, PMMA	ABS, PMMA
Co-extrusion layer structure	A/B/C, A/B/A, A/B	A/B/A
Sheet width	1200-1700mm	1800-2100mm
Sheet thickness	1-6mm,	2-8mm
Max capacity	500kg/h	700kg/h

PART 4 DELIVERY, PAYMENT AND AFTER SALE SERVICE:

1. Delivery time: 90 days after receiving the deposit
2. Payment terms: 40% for the prepayment by T/T and 60% for the downpayment by T/T or irrevocable L/C at sight can be available,
3. After sale service:
Guaranteed time: 18 months for the machenical parts, 12 months for the eletrical parts
We'll send our 1-2 engineers to go to your factory to install and test the machines and also train their workers.

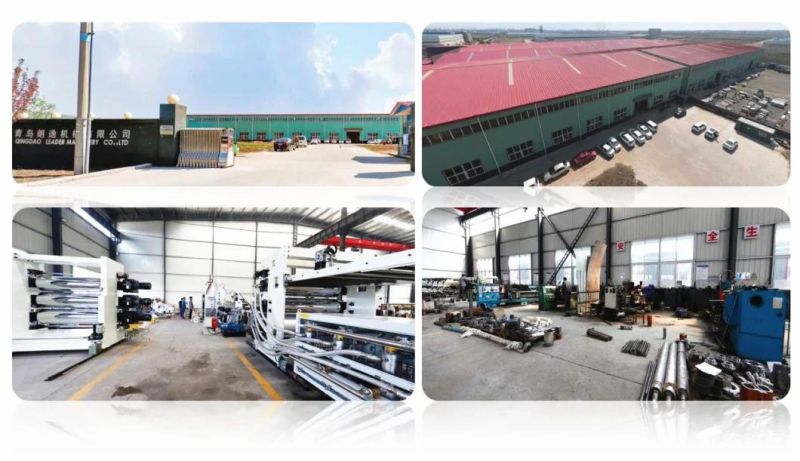

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:



PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS

OUR COOPERATED SUPPLIER LIST
