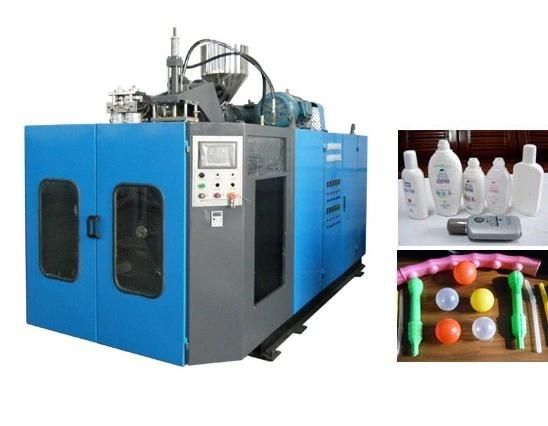

2L Automactic Plastic Bottle Blow Molding Machine
Zhangjiagang Apollo Machinery Co., Ltd.- Type:Extrusion Blow Molding Machine
- Raw Material:PE
- Making Method of Parison:Extrusion-Blow Molding
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
Base Info
- Model NO.:ABLB45II
- Max.Product Volume:2L
- Output of HDPE:30kg,H
- Dry Cycle:1550PC,H
- Application:Bottle
- Transport Package:Film Packing
- Specification:CE, ISO9001
- Trademark:APOLLO
- Origin:Zhangjiagang City, Jiangsu Province, China
- HS Code:8477301000
- Production Capacity:1550PC,H
Description
Basic Info.
Model NO. ABLB45II Max.Product Volume 2L Output of HDPE 30kg/H Dry Cycle 1550PC/H Application Bottle Transport Package Film Packing Specification CE, ISO9001 Trademark APOLLO Origin Zhangjiagang City, Jiangsu Province, China HS Code 8477301000 Production Capacity 1550PC/HProduct Description
2L Automactic Plastic Bottle Blow Molding Machine (ABLB45II)ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles,medical bottles,oil bottles,plastic balls ,suction tubes and other small plastic containers not over 2L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 2L.
(2)Single station double die design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment,high efficiency,quick and safe operation,easy for maintenance.Suitable for making:
Technical Parameters: ( ABLB45 )
Max. Product volume | 2L |
Out put capacity | 500~600pcs/h |
Screw diameter | 45mm |
Screw L/D ratio | 24:1 L/D |
Screw drive power | 10 KW |
Screw heating capacity | 2.6 KW |
No.of heating zone | 3 zones |
Output of HDPE | 35 KG/H |
Oil pump drive power | 4.8 KW |
Clamping force | 32KN |
Max.size of mold | 80-350mm |
Mold stroke | 250 X 320mm |
Max.die diameter | 80mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.4M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 30 L/MIN |
Size of Machine | 2.6x1.4x2.2m |
Weight of machine | 2.8 ton |
