• Model NO.：SJSZ 45,90 51,105 55,113 65,132 80,156
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• First Name：Extruder
• Second Name：Extruder Machine
• Third Name：Plastic Extruder
• Fourth Name：Extrusion Machine
• Twin Screw Extruder：Single Screw Extruder
• Capacity Range：80kg,H-800kg,H
• Gearbox：Jiangyin Vertical Design
• Screw and Barrel：Bimetallic
• Motor：Siemens
• Inverter and Main Electrical Part：ABB Siemens Schneider
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：Sino-Tech
• Origin：China
• HS Code：8477209000
• Production Capacity：200sets,Year

Basic Info.

Model NO. SJSZ 45/90 51/105 55/113 65/132 80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized First Name Extruder Second Name Extruder Machine Third Name Plastic Extruder Fourth Name Extrusion Machine Twin Screw Extruder Single Screw Extruder Capacity Range 80kg/H-800kg/H Gearbox Jiangyin Vertical Design Screw and Barrel Bimetallic Motor Siemens Inverter and Main Electrical Part ABB Siemens Schneider Transport Package Wooden Case Specification CE, ISO Trademark Sino-Tech Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

2017 best sale machine High Capacity  PVC Conical Twin Screw Plastic Extruder for pipe profile extrusion production machine line Extruder

Introduction of twin screw extruder:
Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate&sheet, and pelletizing. The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system

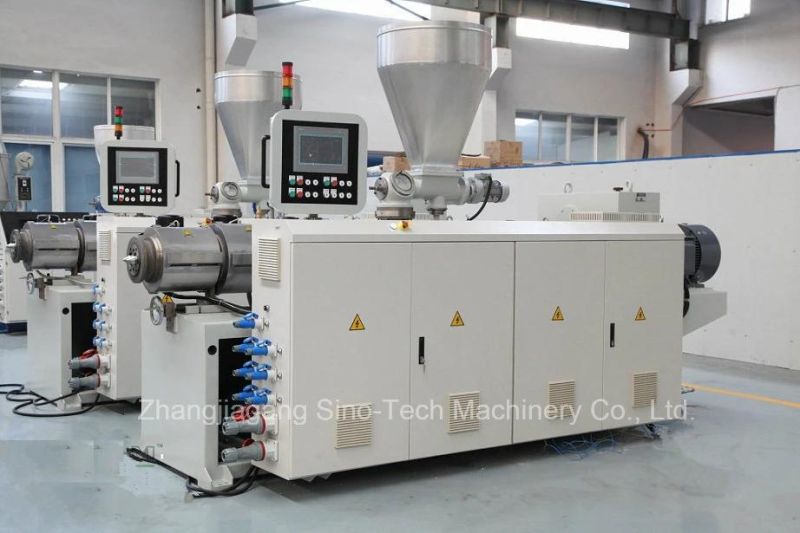

conical twin screw extruder
Specification/Model	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter	45/90	51/105	65/132	80/156	92/188
Ratitional speed of screw	1-45rpm	1-45.5rpm	1-38rpm	1-36.9rpm	1-34.5rpm
Main motor power	15kw	22kw	37kw	55kw	110kw
Barrel heating power	9.6kw	11.5kw	24kw	36kw	88kw
Production capacity	70kg/h	120kg/h	250kg/h	360kg/h	1000kg/h
Net weight	2500kg	3000kg	4000kg	5000kg	5500kg

Single Screw Extruder is mainly used to process PP, PE, PP-R, ABS and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation. This Single Screw Extruder has the advantage of simple production technological process, high output, stable quality and low cost.

Single screw extruder
Model	L/D	Output	Speed of Screw Rotationl	Power	Center Height
SJ-30	10-33	10-25kg/h	20-120r/min	3-5.5kw	1000mm
SJ-45	10-33	10-35kg/h	20-120r/min	7.5-18.5kw	1000mm
SJ-50	10-33	20-80kg/h	20-120r/min	22-37kw	1000mm
SJ-65	10-33	80-150kg/h	20-120r/min	37-55kw	1000mm
SJ-75	10-33	120-280kg/h	20-120r/min	55-90kw	1000mm
SJ-90	10-33	150-450kg/h	20-120r/min	90-160kw	1200mm
SJ-120	10-33	300-600kg/h	20-120r/min	160-260kw	1200mm
SJ-150	10-33	450-700kg/h	20-120r/min	260-315kw	1200mm
