Plastic Coffee Cup Lid Thermoforming Machine
Ruian Donghang Packing Machinery Co., Ltd.- After-sales Service：1 Year
- Certification：CE, SGS
- Column number：Four Column
- Molding Method：Hydraulic and Servo
- Automatic Grade：Automatic
- Forming Area：260X450
Base Info
- Model NO.：DHBGJ-450L
- Raw Material：Pet
- Shaping Mode：Die Molding
- Application：Machinery & Hardware, Food & Beverage
- Driven Type：Pneumatic
- Computerized：Computerized
- Transport Package：Wooden Packagintg
- Specification：SGS
- Trademark：DONGHANG
- Origin：China
- HS Code：8477409000
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. DHBGJ-450L Raw Material Pet Shaping Mode Die Molding Application Machinery & Hardware, Food & Beverage Driven Type Pneumatic Computerized Computerized Transport Package Wooden Packagintg Specification SGS Trademark DONGHANG Origin China HS Code 8477409000 Production Capacity 50 Sets/MonthProduct Description
Feature:it's a new type one that combines hydraulic and servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It can provide PVS,PS,PET etc.All kinds of covers.
Technical Parameter:
| Punching Frequency | 20-35time/min |
| Max.Forming Depth | 50mm |
| Max.Forming Area | 260*450mm² |
| Air-compressor | Less than 0.2m³/min |
| Pressure | 0.4-0.7MPa |
| Power | 20Kw |
| Overall Dimension | 4200*850*1700mm |
| Weight | 2000KG |

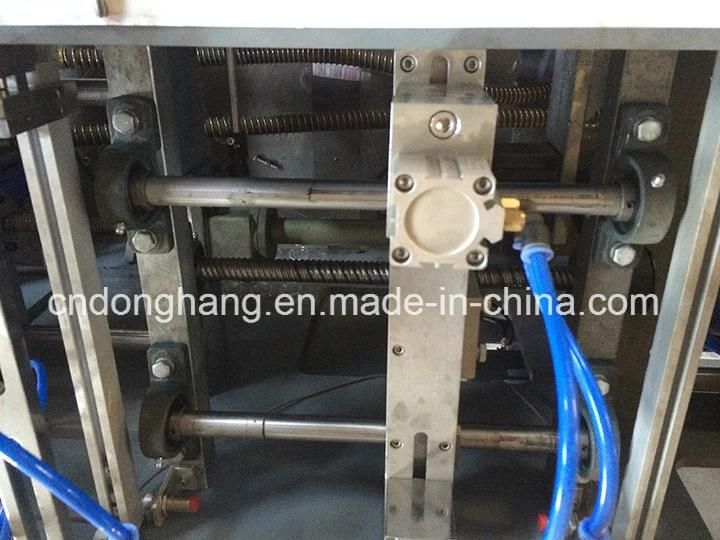

Machine Image:

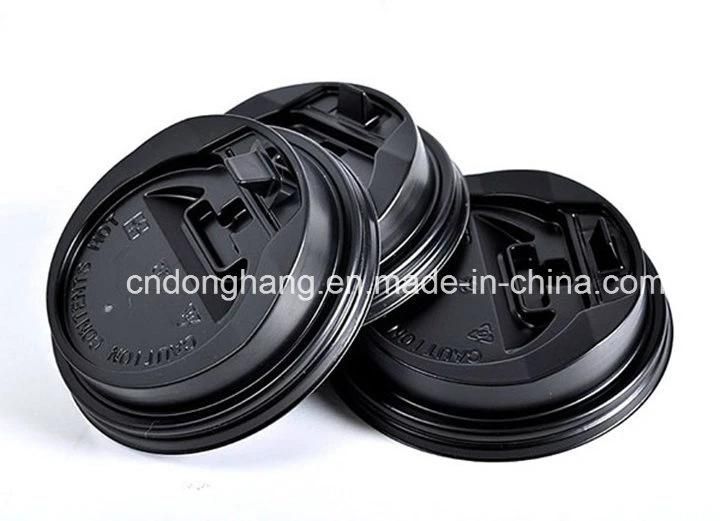

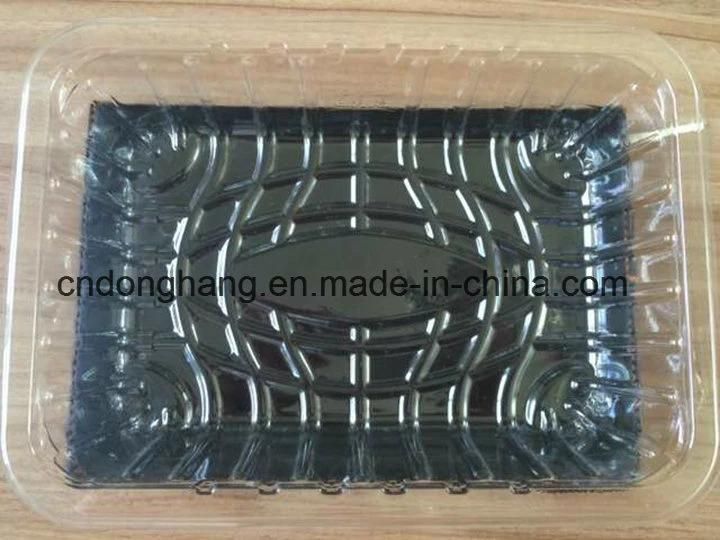

Sample reference:
Packing and shipping:
