• Model NO.：sj-pe
• Condition：New
• Brand：Xdc
• Material：PE PP PVC
• Quantity of Mould：40,70,90 Pairs
• Transport Package：Wooden Case
• Specification：CE
• Trademark：xindacheng
• Origin：China
• Production Capacity：10PCS,Year

Basic Info.

Model NO. sj-pe Condition New Brand Xdc Material PEPPPVC Quantity of Mould 40/70/90 Pairs Transport Package Wooden Case Specification CE Trademark xindacheng Origin China Production Capacity 10PCS/Year

Product Description

Product description:

Single wall corrugated pipe can be widely used in golf courses, sports fields and other light loads such circumstances drainage, flooding; interior wire casing; automotive wire casing; prestressed cable casing; air conditioner drainage pipes. Double-wall corrugated pipe can be widely applied highways, slopes, golf courses and other heavy load conditions drainage, flooding; municipal sewage; communications, power supply cable casing and other occasions.

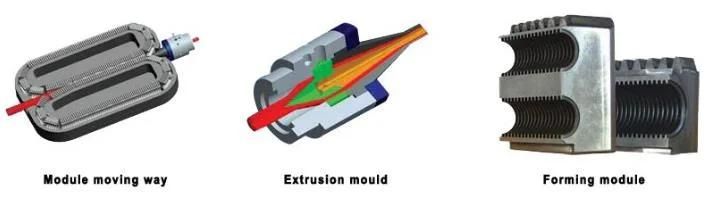

1.Close type corrugator and vacuum for forming

2.Forming module is moving in a tunnel

3.Forming tunnel is clod by water

4.Forming module is made of hard alloy steel and anti-corrosion and abrasion.

5.No any connection between forming module, the reduce time to change.

6.Provide single sand double wall corrugation pipe head die.

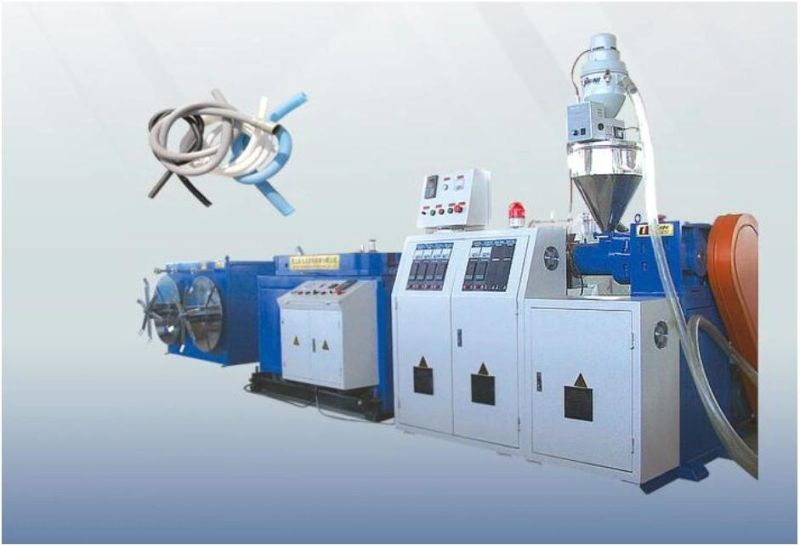

PE Single Wall Corrugation Pipe Production Line:

----Close type corrugator and vacuum for forming
----Forming mould is moving in a tunnel
----Formng tunnel is clod by water
----Forming mould is made of hard alloy steeel and anticorrosion and abrasion
----No any connection between forming mould, then reduce time to change
----Provide single and double wall corrugation pipe head die

Technical parameter:

Specification	4-32mm	8-58mm
Quantity of mould	40, 70, 90	40, 70, 90
Main machine	SJ-45/30	SJ-65/30
Max. speed of line	40m/min	40m/min
