Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch

Nanjing Kairong Machinery Tech. Co., Ltd.
  • After-sales Service：Engineers Available to Service Machinery Overseas
  • Warranty：1 Year
  • Type：Twin Screw Extruder
  • Plastic Processed：PP PE PVC Pet ABS PA LDPE,etc.
  • Product Type：Granulating Extruder
  • Feeding Mode：Twin Screw Extruder

Base Info

  • Model NO.：TSE
  • Assembly Structure：Integral Type Extruder
  • Screw：Twin-Screw
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Keyword：Plastic Recycling Extruder
  • Capacity：200-300kg,H
  • Screw Design：Double
  • Voltage：220V,380V
  • Color：Requiremet
  • Brand Name：Kairong
  • Material：PP PE PVC Pet PC

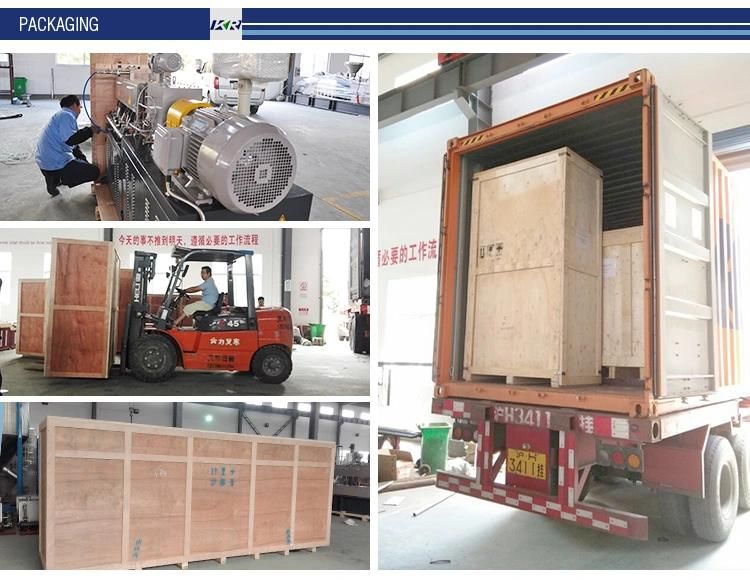

  • Transport Package：Wooden Case
  • Specification：TSE
  • Trademark：kairong
  • Origin：Nanjing, Jiangsu, China
  • Production Capacity：200-500kg,H

Description

Mode

Diameter

(mm)

L/D

speed

(r/min)

Motor power

(kw)

Torque

(N.m)

Capacity

(kg/h)

TSE-20

2232-446005.5430.5-10

TSE-30B

3132-48600151195-40

TSH-35B

35.632-52600-80015-2211930-70

TSE-40B

4132-5260045-5543790-150

TSH-40B

4132-5260045-55437150-220

TSE-50B

50.532-5250045-55430180-270

TSH-52B

51.532-6060090-132682270-400

TSE-65B

62.432-6460090716250-360

TSH-65B

62.432-64600-800110-160875350-500

TSE-75B

7132-646001321050350-500

TSH-75B

7132-64600-800200-2501365600-800

TSE-95B

9332-646003152560800-1200

TSH-95B

9332-64600-800400-45025061200-1600

TSE-135

13332-6450055071621500-2250
Application
 a. For high filling masterbatch : PE/PP/EVA ,+ Caco3, Tio2, Talc,Carbon Black , etc; b. For fiber reinforcement: PP/PA/PBT/ABS/AS/PC/POM/PPS/PET +glass fiber, carbon black ;
 PE + 85% Caco3;
Including High speed mixer for mixing PE+85% Caco3+ addictives; Screw loader for loading materials ; Extruder for extrusion;  Air cooling hot face cutting  pelletizing line for cooling and cutting ;

 PP +70% Caco3 ;  High speed mixer for mixing PE+ Caco3+ Addictives; Screw loader for loading materials , Extruder for extrusion; Water ring hot face cutting pelletizing line for cooling and pelletizing ;
  Glass fiber reinforce : PP/PA/PA66/PA6+ Glass fiber with side feeding Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch 1.The gearbox·  New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.2.The feeding system· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.

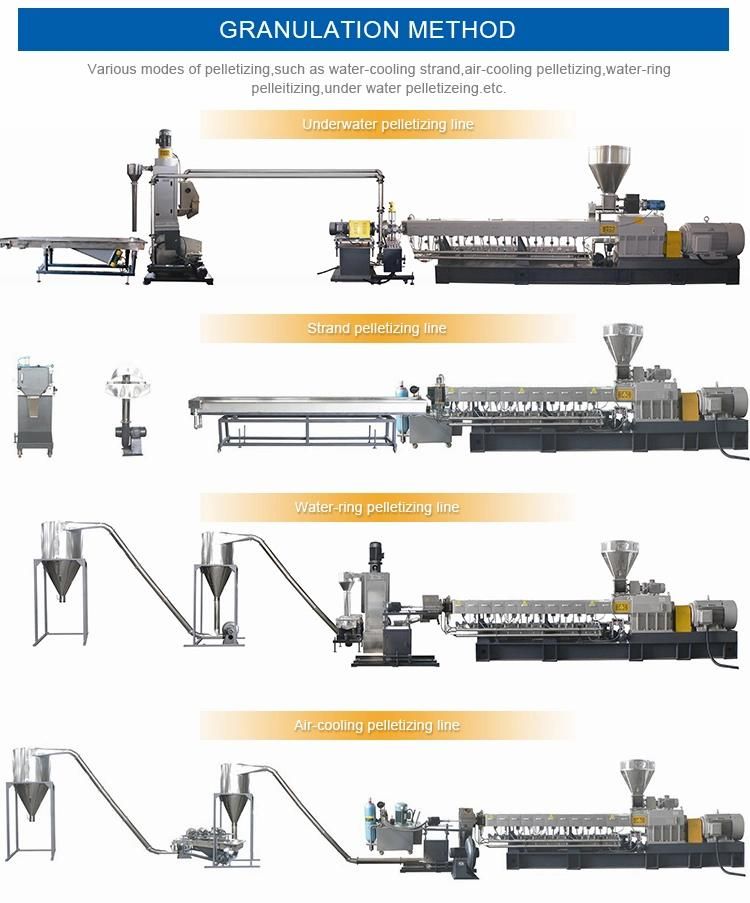

 3.Screw                  · The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.4.The barrel       · Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.5.The heater· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.6.Pelletizing· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.
Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch Our service
 Before-saleIntroduce products in detailsRecommend suitbale solutionOffer test During  manufacturing:Provide layout and engineering conditionsOffer screw plan and related documentsInform the project processing statusInsure the product designed in accordance with technical document After-sale:Provide installation,commissiong and trainingOffer spare partsProvide necessary technical support and update information 1.Quality guaranteed 2.Support  factory visit 3.Technology supports

Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch
Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch
Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch
Tse-65 Desiccant Masterbatch Pelletizing Line for Color Masterbatch

FAQ1. Q: How can we go to your factory?      R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company   2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company             All our clients, from domestic or abroad, are warmly welcome to visit us!    2. Q: Why chose us? R: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours.          2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.          3) Before delivery, the machine will be tested to ensure every part is ok.          4) Wooden case package to ensure no damage during shipping.   3.Q:What is the payment?     R: 1) T/T payment;   2) LC;
