• Model NO.：SJ-60,MC1000
• Machine Weight：2500kg
• Certification：CE
• Screw Diameter (mm)：65
• Film Width(mm)：600-1200
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：90
• Die Size(mm)：100,200
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Guarantee：One Year
• Delivery Time：20 Days
• Transport Package：Wooden Plate
• Specification：600mm
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ-60/MC1000 Machine Weight 2500kg Certification CE Screw Diameter (mm) 65 Film Width(mm) 600-1200 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 90 Die Size(mm) 100/200 Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Guarantee One Year Delivery Time 20 Days Transport Package Wooden Plate Specification 600mm Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

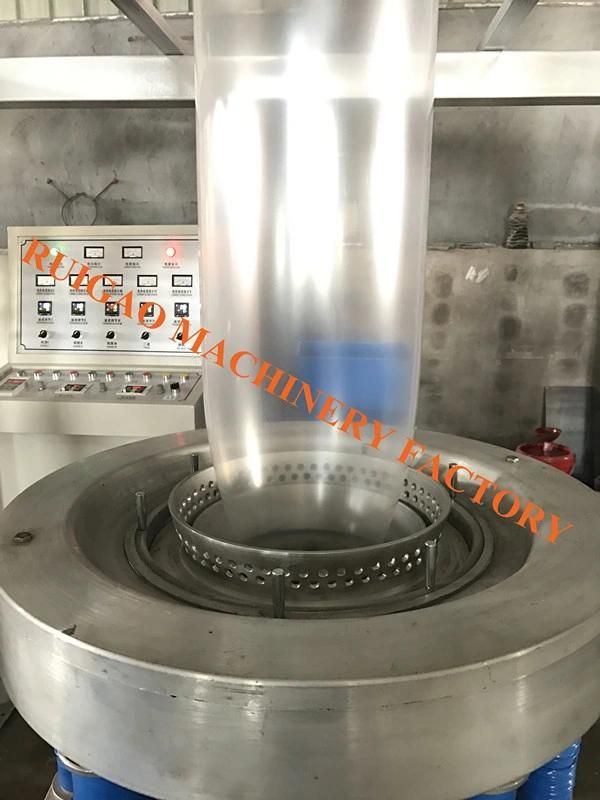

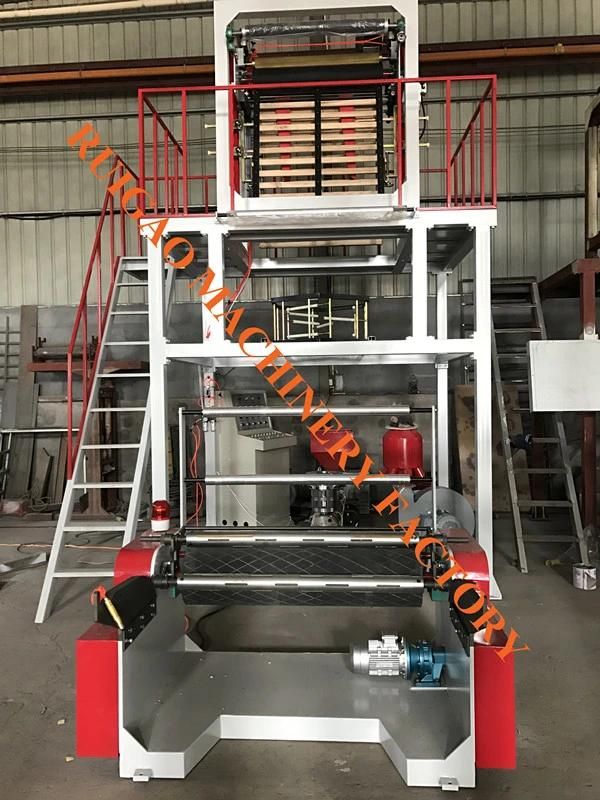

High Quality Simple Film Blowing Machine


Machine Introduction
Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
 in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw
 is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing
 the plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density
 polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag
 and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life. Siemens brand
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7, Inverter: LG Brand
8, Temperature controller: Omron Brand

Machine Parameters

Model	SJ-50/MC600	SJ-55/MC800	SJ-60/MC1000	SJ-65/MC1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	300-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max.Extrusion Output(kg/h)	60	70	80	90
Cylinder Cooling (Kw)	0.25	0.25	0.25*2	0.25*2
Driving Motor(kw)	15	18.5	22	30
Temperature Control	3	3	3	4
Average Power-consume(kw)	14	22	26	37
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Winding Speed(m/min)	10-100	10-100	10-100	10-80
Take-up Motor(kw)	0.75	0.75	1.1	1.5
Weight of machine(kg)	2500	2600	3000	3200
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5









1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.

Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
