• Model NO.：YRF-C
• Color：Green of Customation
• Foam Cold Pressing Compactor Recycling M：Plastic Recycling Machine
• Motor：Siemens, Wanan
• Contactor：Schneider Brand
• Object：EPS Plastic
• Inveter：ABB Brand
• Warranty：16 Months
• Capacity：150kg,H-200kg,H
• Name：Recycling Machine, EPS Compressor
• Type：Cold Pressing
• Compression Ratio：50:1
• Method：Screw
• Crushing：Shaft with Blade
• Pressing：Hydraulic
• Control：PLC
• Transport Package：Wooden Base, Film Packing
• Specification：150kg,h
• Trademark：YUREFON
• Origin：China
• HS Code：84778000
• Production Capacity：5 Sets Per Months

Basic Info.

Model NO. YRF-C Color Green of Customation Foam Cold Pressing Compactor Recycling M Plastic Recycling Machine Motor Siemens, Wanan Contactor Schneider Brand Object EPS Plastic Inveter ABB Brand Warranty 16 Months Capacity 150kg/H-200kg/H Name Recycling Machine, EPS Compressor Type Cold Pressing Compression Ratio 50:1 Method Screw Crushing Shaft with Blade Pressing Hydraulic Control PLC Transport Package Wooden Base, Film Packing Specification 150kg/h Trademark YUREFON Origin China HS Code 84778000 Production Capacity 5 Sets Per Months

Product Description

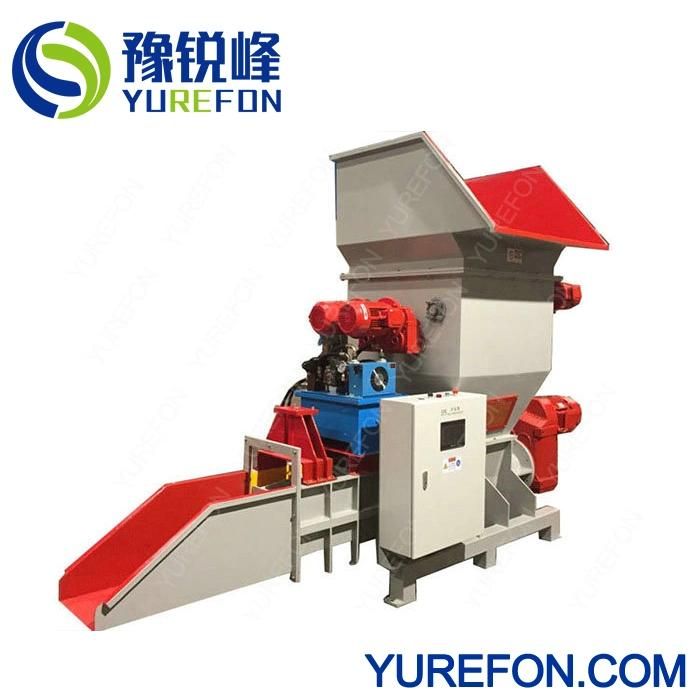

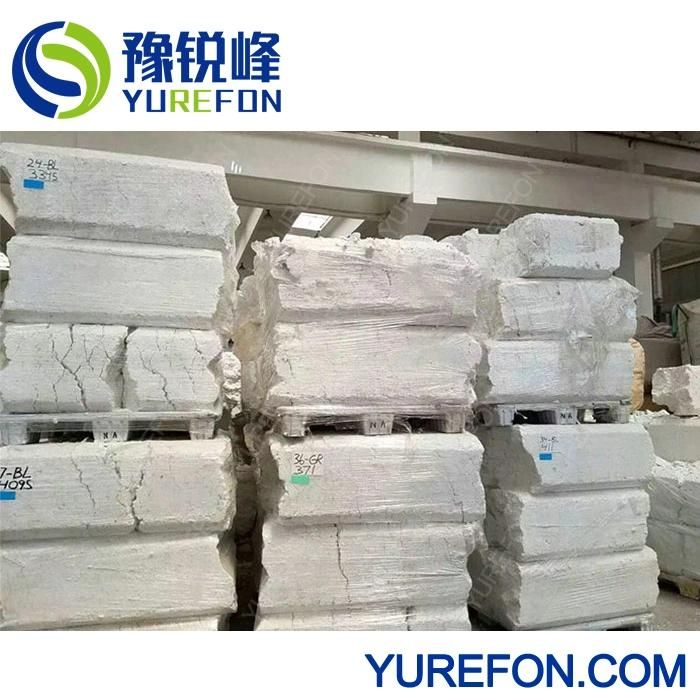

Styrofoam compactor machinery eps foam press recycling machineYurefon EPS plastic foam compactor cold pressing recycling machine is a Styrofoam recycling machine, which can smash the waste Styrofoam materials into small pieces by the blades and gears, and then it could be easily compressed into tight foam ingots at a ratio of 50:1. After compaction, the waste Styrofoam can be reused to make other products, such as frame products and construction moldings.

In addition, the applicable materials also include XPS, EPP, food trays and cups. Yurefon EPS recycling machine is able to eliminate all your waste foam recycling concerns.

EPS recycling machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also called EPS densifier and EPS compactor. It is widely used in sea food processing plant, electronic factories, White goods and black goods stores, and the supermarkets.










Description of Styrofoam compactor machinery eps foam press recycling machine:
1.Twin shaft crushing blades. This machine adopts manual feeding, the material will be crushed by blades on the  twin shaft, then through the screen conveyed into the barrel of the main machine.
 2.The screw of the main machine can compression, then extruding them and hydraulic blade cut them to pieces for easy storage and transportation.
 3.The shapes of the products can be designed according to customers' requirements.

Working principle:
The twin shaft are two parallel shafts with blades, they running in different rotation direction. Each shaft has blades and driven by the gear box, to crushing the EPS material then the material will get throught the sreen into  the barrel. The material will be processed by the high speed rotary screw to the barrel, then the high press to reduce the volume density.

For the environment:
1.EPS is uniquely recyclable - all manufacturing waste can be fully reprocessed as can the products at end-of-life.
2.EPS is comprised of 98% air and therefore only 2% polystyrene making it a highly efficient use of raw material.
3.Although EPS is derived from a non-renewable resouce - oil, it represents less than 0.1% of crude oil usage.
4.As EPS is highly energy efficient - the energy saved over the lifetime of an insulation panel.

Parameters of Styrofoam compactor machinery eps foam press recycling machine

model	YRF-C-200
Yield	150kg/h
Screw diameter	Φ350mm
Feed port size	1000mmx600mm
Screw speed	36rpm
Crusher blade	Four axes 10+11+10+11
Crusher speed	120rpm
Main motor	11kw
Crusher motor	2.2kw X 4
Hydraulic pump motor	1.5kw
Product Size	380x380mm
Machine dimensions	4800x1500x2500
Weight	1800kg


We are professional Packaging Foam Plastic Board EPS EPE EPP EVA Cold Pressing Machine manufacturers.
