• Model NO.：SBM
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, QS, UL, GMP
• After-sales Service：24 Month
• Keywords：Bottle Blow Molding Machine
• Bottle Sizes：0.1L ~ 20L
• Capacity：2000 ~ 8000bph
• Bottle Material：Pet Preform
• Application：Water , Juice , Beverage Bottle
• Control：PLC (Siemens)
• Pneumatic Parts：Airtac (Taiwan)
• Function：Pet Stretch Blowing
• Advantage：Stable Preformance
• Transport Package：Wooden Case
• Specification：8CBM
• Trademark：Alps
• Origin：Zhangjiagna City, China
• HS Code：84774010
• Production Capacity：30 Sets Per Month
• Package size per unit product：1500.00cm * 1850.00cm * 2500.00cm
• Gross weight per unit product：1500.000kg

Specification for bottle blow molding machineModelBL800BL1500BL9ABL12Bottle sizes0.1L-2L0.1L-2L1L-5L10L-20LCapacity(bottles/hour)800 bph800 bph300~600 bph60~120 bphApplicationbottle blow molding machineTotal power15kw25kw35kw35kwMax bottle height<310mm<310mm<<400mm<500mmHp air compressor1.0 m3/min 30kg1.2 m3/min 30kg1.2 m3/min 30kg1.6m3/min 30kgLP air compressor1.0 m3/min1.6 m3/min2.0 m3/min2.0 m3/minMachine sizes1.9*1.3*2m2.2*1.3*2m2.2*1.3*2m2.2*1.3*2mWeight500kg800kg1000kg1200kg

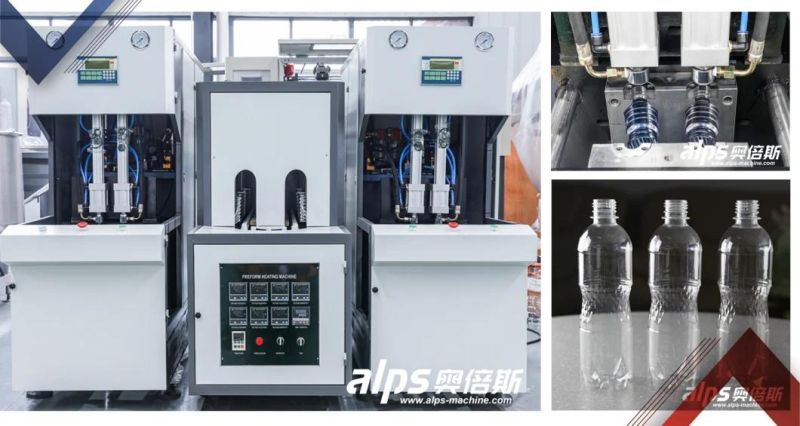

Main Features
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .

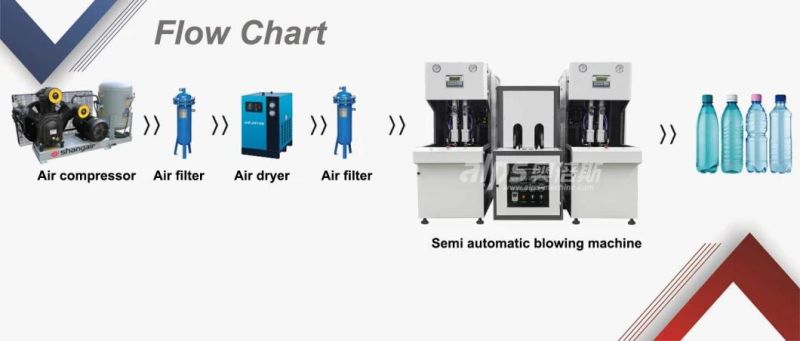

Auxiliary equipment description
High Pressure Air Compressor Function :To provide air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure
Air Cooling Dryer Function :To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
Air filter Function: To clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.

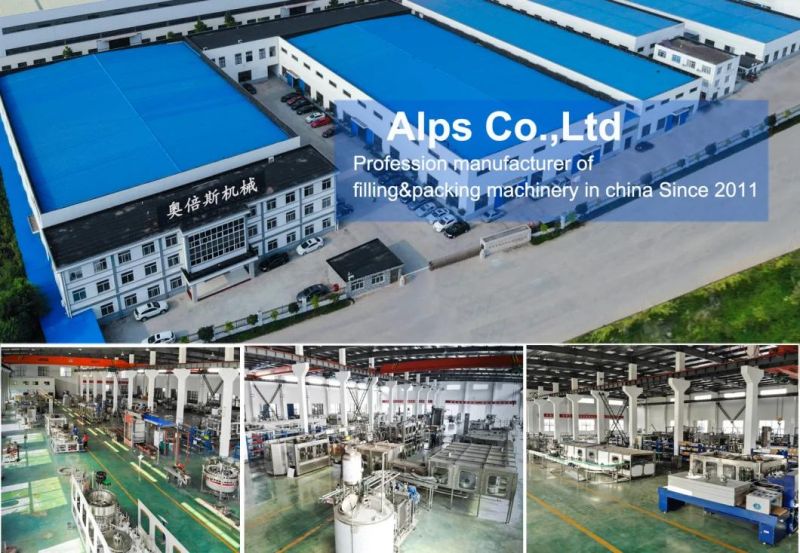

Company introduction

Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

Certification :
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.
