HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)

Qingdao Leader Machinery Co., Ltd.
  • After-sales Service：Available
  • Warranty：18 Months
  • Product Type：PE Board
  • Board Layers：Single Plate
  • Screw No.：Single-screw
  • Automation：Automatic

Base Info

  • Model NO.：LMSB-150,33
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Customized：Customized
  • Condition：New
  • Sheet Width：1000-8000mm
  • Sheet Thickness：0.5-3mm
  • Raw Material：PE Virgin and Recycle Material
  • Extruder Model：Sj150,33
  • T-Die Head：Jc-Times Brand
  • Three Roller Calendar Material：45# Forging Steel, 40cr or Alloy Steel
  • Capacity：400-800kg,H
  • Quality Control：Customers Come to Our Factory to Test
  • Application：Housing Waterproof, Architecture Engineering
  • Transport Package：Wooden Pallets and Cases and Films
  • Specification：LMSB120,33
  • Trademark：Leader Machinery
  • Origin：Qingdao of China
  • HS Code：8477209000
  • Production Capacity：10 Sets,Per Year

Description

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1Automatic vacuum feeding machine1 set2High efficiency single screw extruder (120/33)1 set3Hydraulic exchanging unit +melting gear pump1 set4T-type /hanger type die head (JC-Times brand)1 set5Three Roller Calendars (alloy steel material )1 set6Rollers thermoforming machine1 set7Cooling frame and edge cutting unit1 set8Haul off machine1 set9Plastic cutting machine-guillotine1 set10Twin position sheet winder1 set11Stacker1 set12Electrical cabinet (ABB,Omron, Siemens etc) 13Spare parts1 set PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)1Air compressor1 set2Industrial water chiller1 set PART 3 SHEET SPECIFICATIONS1Sheet width2000-4000-8000mm2Sheet thickness0.5-3mm3Typesingle layer/multi layer sheets 4Raw materialPE recycle material PART 4 SHEET APPLICATIONS1widely used in construction, such as highway, railway, bridge, dyke, etc. PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time100 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

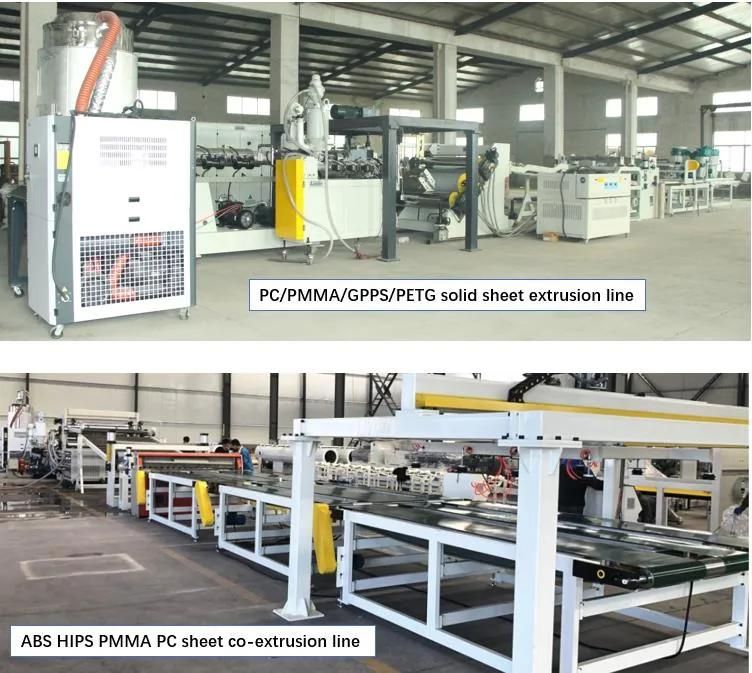

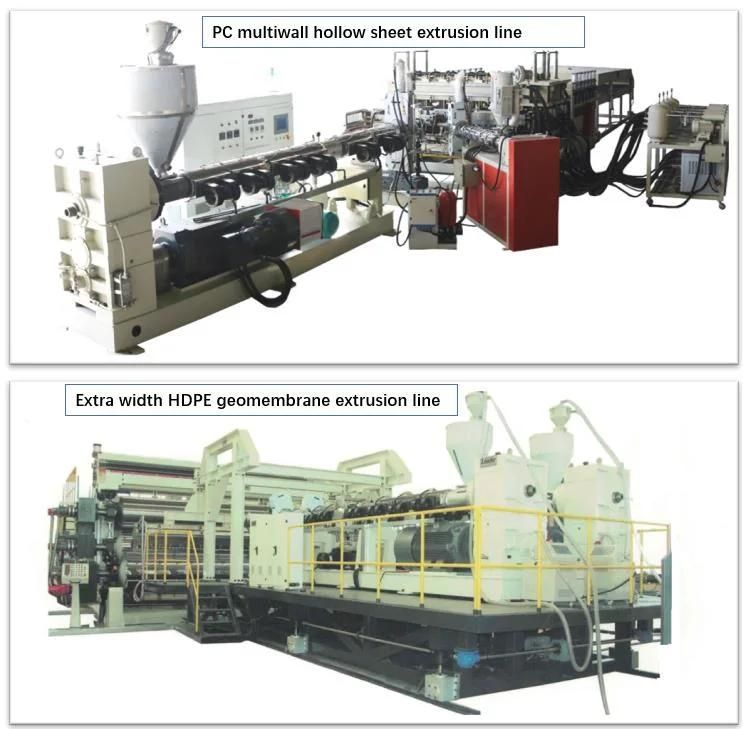

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)
PART 6 OUR RELIABLE SUPPLIERS:
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)

PART 7 COMPANY CERTIFICATIONS:
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)

PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)
HDPE PE Geomembrane Extrusion Extruder Machine (8000mm width)

PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
