• Model NO.：SJSZ80,156
• Customized：Customized
• Condition：New
• Name：PVC Foam or Decortaion Sheet Extrusion Line
• Sheet Width：1220mm
• Sheet Thickness：1-10mm
• Application：Sandwich Panels, Packing, Edge Banding
• Extruder Model：Conical Twin Screw 80,156
• Max Capacity：300kg,H
• Main Electrical Parts：ABB, Omoron, Delix, Schnider, Rkc etc
• Guaranteed Time：12 Months
• Transportation：1 Set of 40gp and 1 Set of 20gp Containers
• Outer Dimension：24m*3.5m*2.9m
• Transport Package：Wooden Cases with Vacuum Film
• Specification：SJ80,156
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：8477209000
• Production Capacity：25sets,Year

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1Automatic spring feeding machine1 set2Conical twin screw extruder1 set3T-type /hanger type die head (JC-Times brand)1 set4Three Roller Calendars (alloy steel material )1 set5Rollers thermoforming machine1 set6Cooling frame and edge cutting unit1 set7Haul off machine1 set8Plastic cutting machine-Guillotine1 set9Twin position winder1 set10Spare parts1 set PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)11High speed hot and cold mixer1 set12Plastic crusher1 set13Plastic pulverizer1 set14Air compressor1 set15Industrial water chiller1 set PART 3 SHEET SPECIFICATIONS1Sheet width1220mm2Sheet thickness1-10mm3TypeRigid pvc, untransparent PART 4 SHEET APPLICATIONS1architecture, decoration, ceiling, kitchenware, cleaning application, computer lettering, ad-sutcheon, chenical antiseptics engineering, thermoforming and environment plate etc. PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time60 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable6ContactMs Lilly Zhou (mob: 0086-15266238607)
  PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

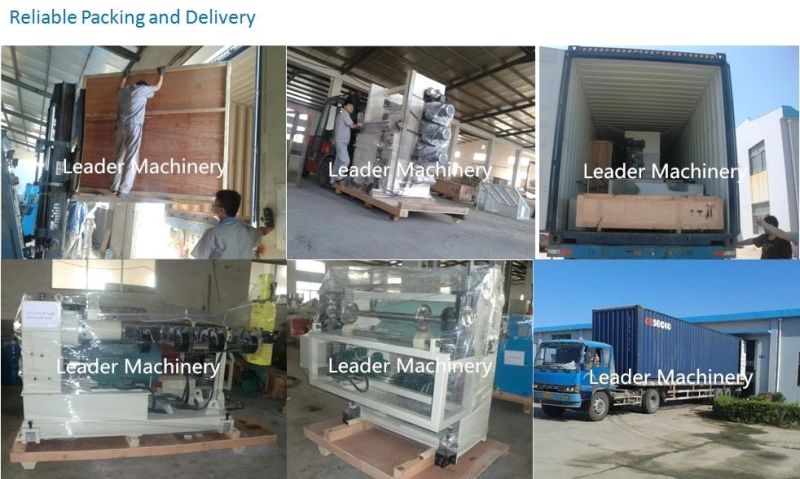

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
