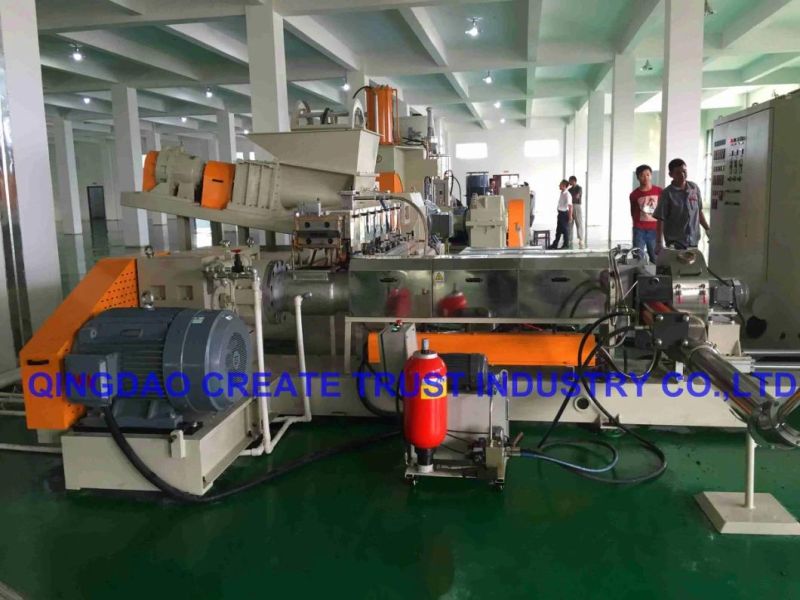

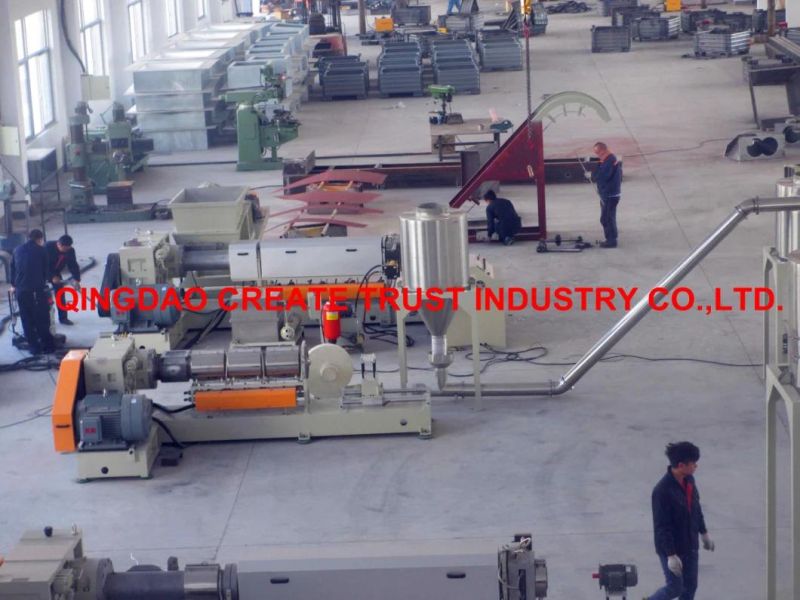

New Advanced Technology PE/PP/LLDPE/ABS/Carbon Black Masterbatch Granulating Machine
Qingdao Create Trust Industry Co., Ltd.- After-sales Service：Whole Life Use
- Warranty：Two Years
- Raw Material：PE
- Screw：Single-Screw
- Inverter：Inverter
- Electromagnetic Heater：Electromagnetic Heater
Base Info
- Model NO.：CX180A
- Automation：Automatic
- Computerized：Computerized
- Customized：Customized
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Condition：New
- Range of Products：All Kinds of Masterbatch
- Control System：Simens Centralization of Control
- Cooling Method：Water or Air as Your Requests
- Material Touching：Stainess Steel Welded
- Design of This Line：Efficient Output and Economic
- Other Features of This Line：Easy Operate and Maintaince
- Transport Package：Wooden Case Safety Packing
- Specification：CE, ISO9001: 2008
- Trademark：CX
- Origin：China
- HS Code：8477800000
- Production Capacity：30 Sets,Month
Description
Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.75mm, surface is chrome plated,high wear-resistant.
Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover . Heating of barrel is made by Cast aluminum heater.
Oil circle cooling system : cooling water pump is 0.55kw,automatic Water control solenoid valve. All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince
0.75m3 condenser- 2 sets
Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.
Hot cutting head : with temperature testing device and pressure testing.
Air cooling mould surface hot cutting system:
Air cooling mould surface hot cutting pelletizer.
Motor power 1.5KW,one set of blade,four pieces.INVT frequency converter.
Diced cover is made by stainless steel,with brake device
First grade cyclone seperator: diameter is 800 mm. The fas is 5.5 kw
Second grade cyclone sperator : diameter is 800mm, the fans is 4 kw

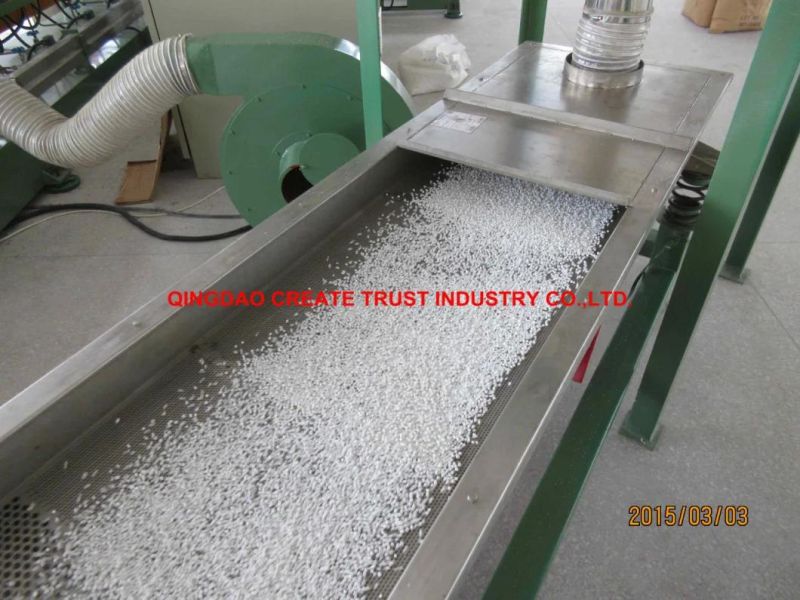

Long svibrating screen, one set. Power is 0.55kw. Big hole size is 8mm,smaller is 0.5 mm diameter.
Air blow bin : 1 m3 capacity, power of fan is 4 kw.
The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.
The electric parts we used is DELIXI brand,contactor is from SIMENS.
SERVICE :
We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
All we do is for longterm cooperation , " CREATE TURST" !
