• Model NO.：QSS4080G
• Raw Material：PP PE PVC Pet Cars Woods etc
• Warranty：One Year
• Using Life：>25 Years
• Transport Package：Film and Wooden Case
• Trademark：QE
• Origin：China
• HS Code：847780000
• Production Capacity：3000

Type QSS2260QSS3280QSS32100QSS4080QSS40100QSS40120QSS40150Motor Powerkw18.5303737455575Rotating diametermm220320320410410410410Rotor operation lengthmm6008001000800100012001500Rammm500650650815815815815Rotating bladespcs23+442+442+442+454+466+490+4Fixed bladespcs2+22+22+22+22+22+23+3Hopper inletmm790*6001100*8001100*10001300*8001300*10001300*12001300*1500Discharge heightmm450550550565565565565Screen mesh manualmanualmanualhydraulichydraulichydraulichydraulicPump motor powerkw1.52.22.22.23.755.55.5Screen sizemmΦ40Φ40Φ40Φ40Φ40Φ40Φ40Weightkg16502400      Type QSA48160QSA48200QSA65220QSA65250QSA80300Motor Powerkw45+4555+5590+90110+110160+160Rotating diametermm480480650650800Rotor operation lengthmm16002000220025003000Rammm12501250125012501500Rotating bladespcs84+498+4158+4225+4284+6Fixed bladespcs3+34+44+44+45+5Hopper inletmm1600*17002000*17002200*26502500*26503000*3300Discharge heightmm780780820820820Screen mesh hydraulichydraulichydraulichydraulichydraulicPump motor powerkw1111151522Screen sizemmΦ40Φ40Φ40Φ40Φ40Weightkg1030014000175002150027500

Detailed Images

Machine parts

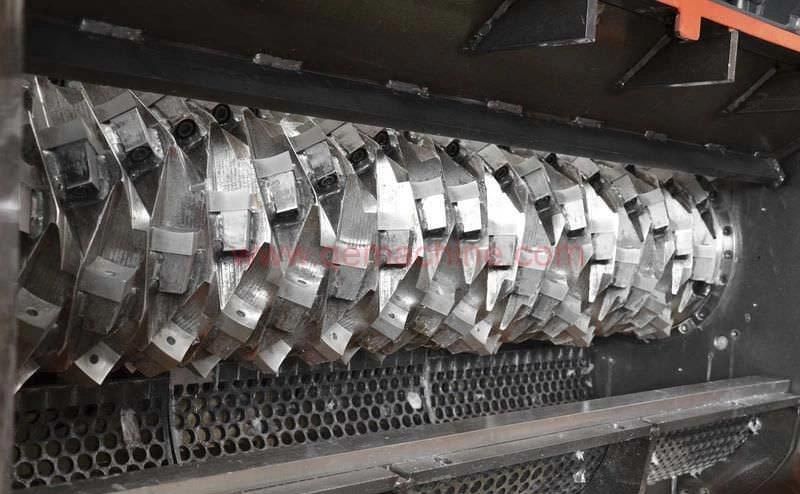

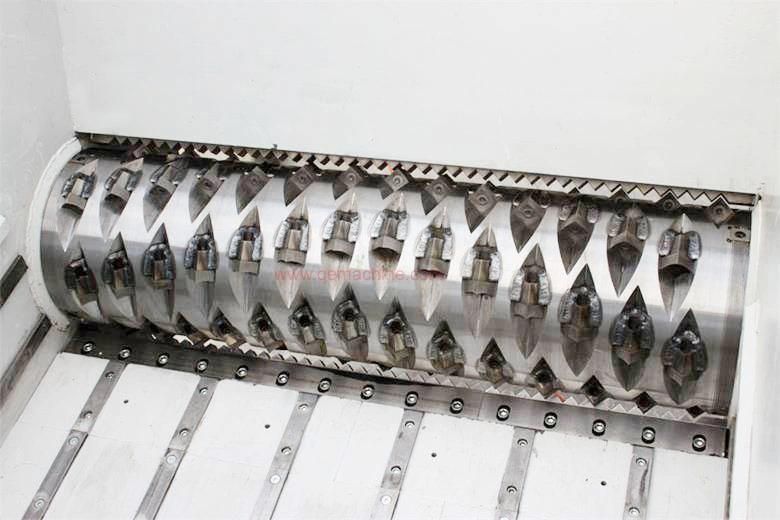

Name: Rotor
Feature: V type rotor design,energy efficient and maximum cutting force
Knives are made of imported material DC53,through special manufacture process and heat treatment,the knives become more durable.Adjustable knives can be rotated and rsed on four edges before replacement.
Optional weld on hard facing is available for abrasive applications.




Machine parts
Name: Ram
Feature:Quick change screens for accuate particle size contorol.
Safety limit switch fitted to screen access door-prevents machine form running when the acess door is open.
Manual and hudraulic change screen mesh.
Star screen optional-for flexible material like film.





Machine Parts

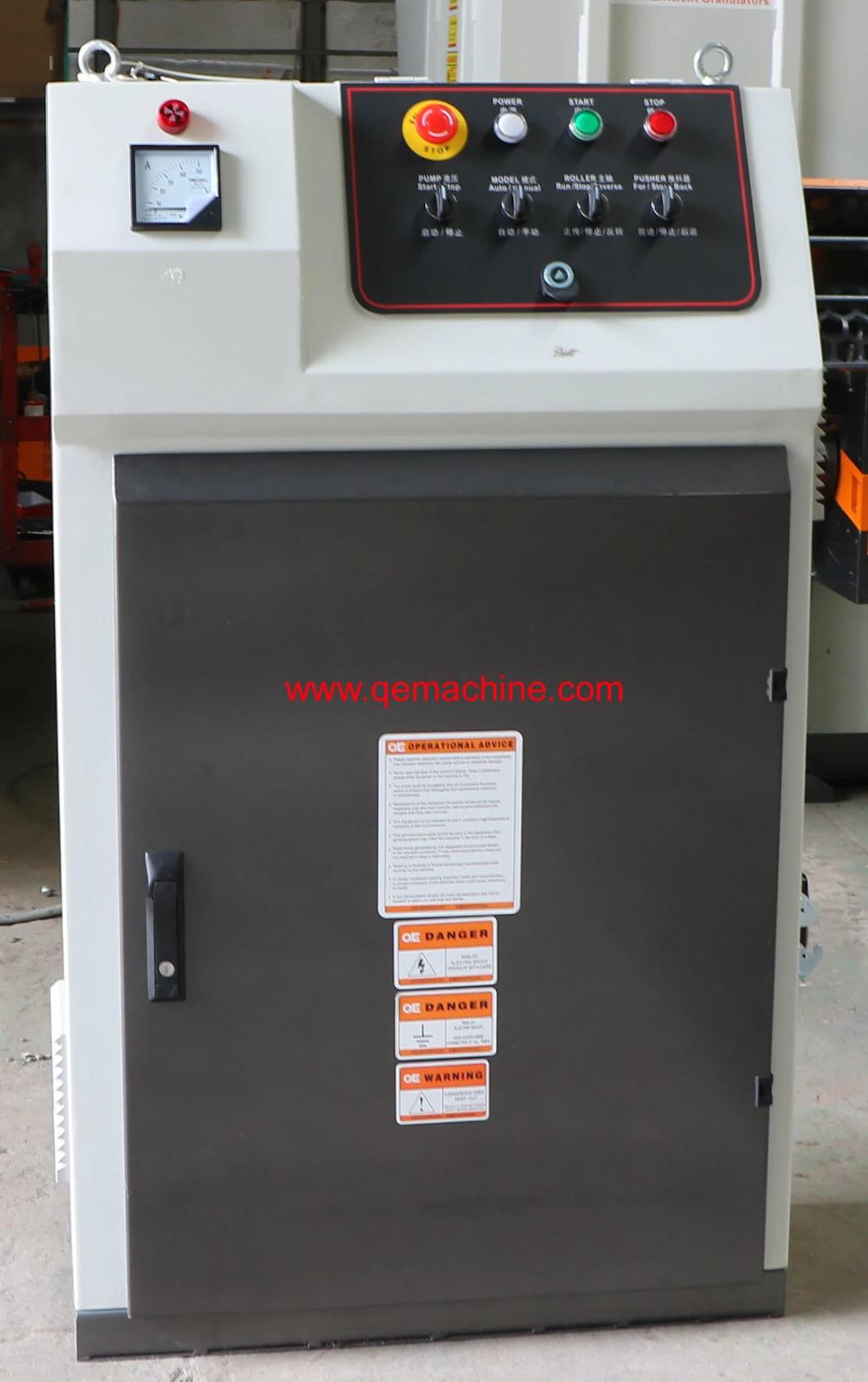

Name: Control panel
Feature: Equipped with independent electrical control pandl.Famous PLC control system and electrical component.
Manual & automatic operational modes to choose,quite flexible and safe.
Intelligent program motor auto reverse for overloadmstop when machine idles.
The shredder of this series has the motor overload protection.



Machine Parts
Name: Hydraulic system
Feature: Twin speed hydraulics can be adjustde to achieve optimum production
Integrate oil / air cooler:maintain the temperature for continuous operation.
Cover insrlator optional:for applications e.g wood shredding to avoid explosion.



Our Service

 Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
