Blowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle Machine

Taizhou Jiansheng Machine Co., Ltd.
  • Raw Material：PET
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE
  • Semi-Automatic：Main Machine:2.0*0.65*1.8 Oven:1.7*0.65*1.5

Base Info

  • Bottle Liter：0.2-5L
  • Model NO.：JS-5
  • Machine Cavity：1,2
  • Transport Package：Wooden Case
  • Specification：Bottle Blowing Machine (1 Cavity)
  • Trademark：JS
  • Origin：Huangyan, Taizhou, Zhejiang, Pr. China
  • HS Code：84773090
  • Production Capacity：400PCS,H for 5L Bottle and 700PCS,H for 2L Bottle

Description

Blowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle MachineSemi-Automatic Blowing Machine JS-5II ( 2 cavity )blow moulding shaping machine can produce PET containers, including bottles for wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, the machine has no noise It is easy to maintain It's the equipment for producing PET bottles. Mold gathering strength (kN)90Mold traveling distance (mm)235Pulling rising traveling distance (mm)450Bottle spacing140-180Mold hole number (cavity)2Max. Bottle capacity (L)5Max. Tooth part size (mm)120Max. Bottle diameter (mm)180Max. Bottle body height (mm)450Theoretic production capacity (bph)400-800Total power consumption (kW)14Thermal rating (kW)12.8Operating pressure (kg/cm2)8Low pressure gas consumption (L/min)300Bottle blowing pressure (kg/cm2)25High-pressured gas consumption (L/min)350Machine size (m)2 x 0.65 x 1.75Machine weight (MT)0.71

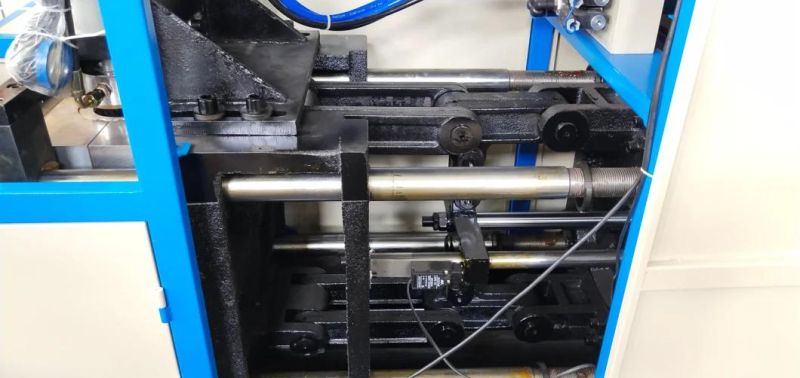

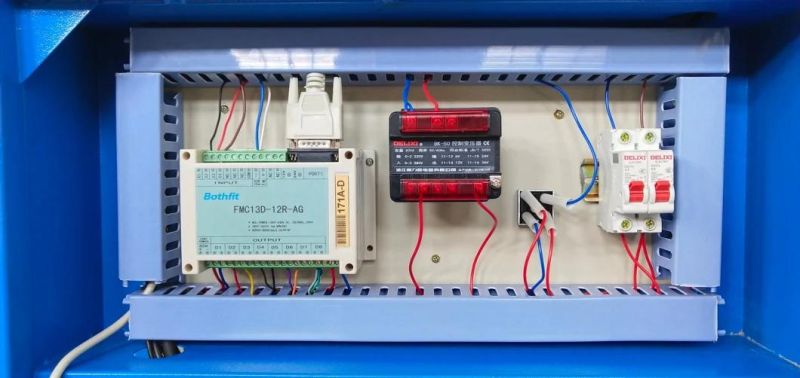

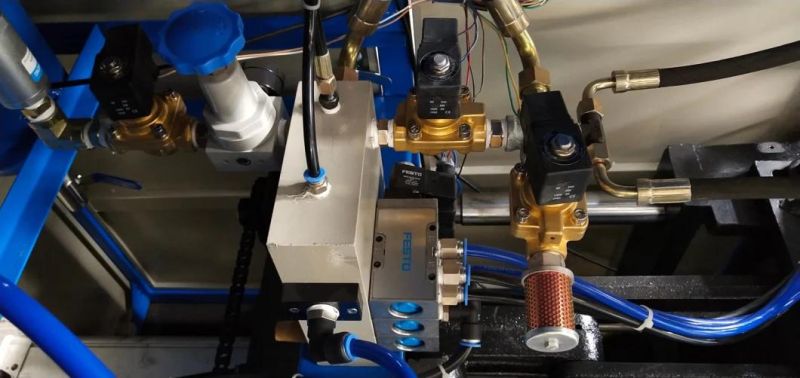

Internal details of the MachineBlowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle MachineBlowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle Machine Blowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle MachineBlowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle Machine

Blowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle MachineBlowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle MachineBlowing Machine Semi-Automatic Blowing Mold Machine with CE Water Bottle Machine
