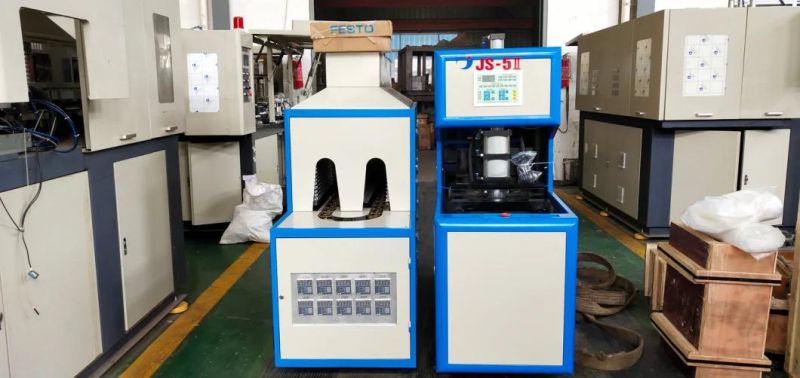

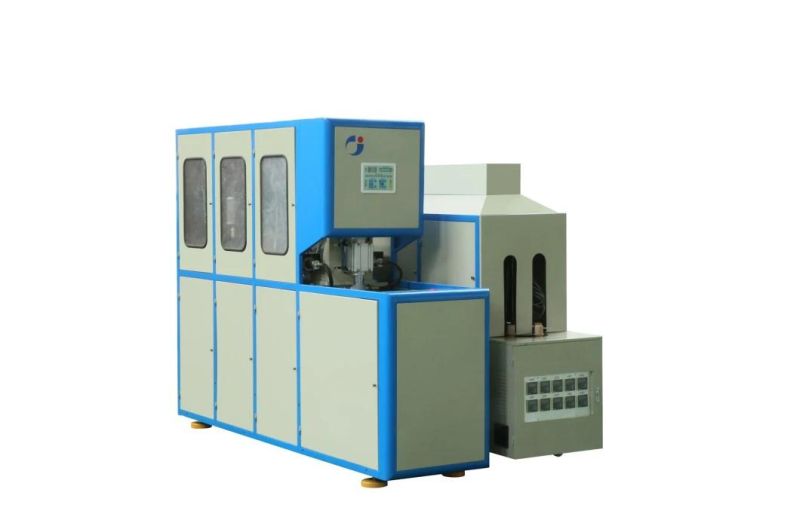

Pet Blow Molding Machine CE Approved Blowing Mould Machine (JS-5ll)
Taizhou Jiansheng Machine Co., Ltd.- Raw Material:PP
- Making Method of Parison:Stretch Blow
- Automation:Automatic
- Computerized:Computerized
- Certification:CE
- Bottle Liter:0.2-5L
Base Info
- Model NO.:JS-05
- Machine Cavity:1,2
- Transport Package:Wooden Box
- Specification:CE, SGS
- Trademark:JS
- Origin:Taizhou
- HS Code:84773090
- Production Capacity:400-700PCS,H
Description
Semi-Automatic Blowing Machine JS-5II ( 2 cavity )blow moulding shaping machine can produce PET containers, including bottles for wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, the machine has no noise It is easy to maintain It's the equipment for producing PET bottles. Mold gathering strength (kN) 90 Mold traveling distance (mm) 235 Pulling rising traveling distance (mm) 450 Bottle spacing 140-180 Mold hole number (cavity) 2 Max. Bottle capacity (L) 5 Max. Tooth part size (mm) 120 Max. Bottle diameter (mm) 180 Max. Bottle body height (mm) 450 Theoretic production capacity (bph) 400-800 Total power consumption (kW) 14 Thermal rating (kW) 12.8 Operating pressure (kg/cm2) 8 Low pressure gas consumption (L/min) 300 Bottle blowing pressure (kg/cm2) 25 High-pressured gas consumption (L/min) 350 Machine size (m) 2 x 0.65 x 1.75 Machine weight (MT) 0.71

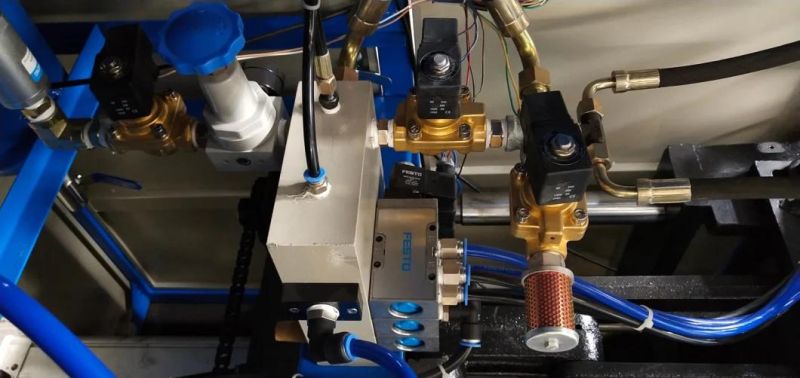

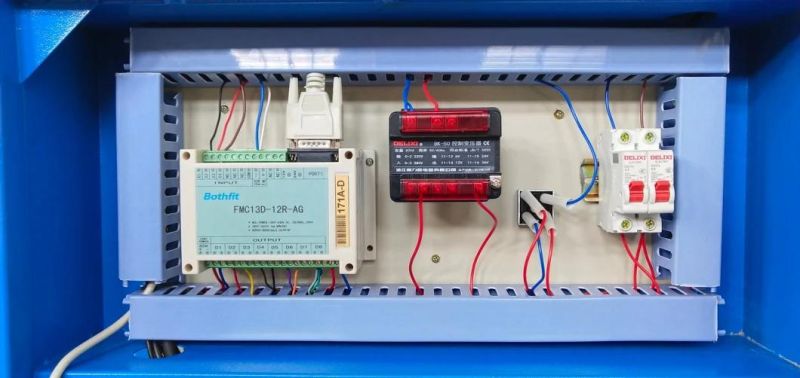

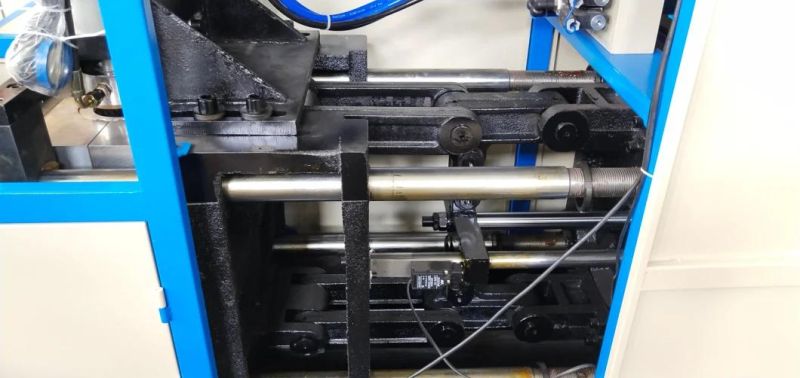

Internal details of the Machine
Internal details of the Machine
