• Model NO.：3SJ-G
• Origin：Ruian China
• HS Code：8477309000
• Production Capacity：20set,Month

Basic Info.

Model NO. 3SJ-G Origin Ruian China HS Code 8477309000 Production Capacity 20set/Month

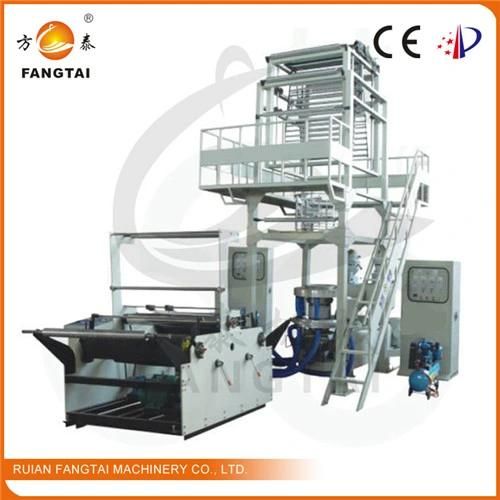

Product Description

Characteristics:
1. Die head is layer type spiral mandrel, continuous 3600 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter Screen easier.
3. Various functional parts may be installed to the lies., such as length counting Device, vertical cutting device, cooling water row pipe, film spreading roller, Scrap collecting device.

Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.

It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain, anti-rost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.


OPTIONAL EQUIPMENT
1)HYDRAULIC NET CHANGER

Main Technical Variables:

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Screw Diameter	Φ50*2   Φ60*1	Φ60*2   Φ65*1	Φ65*2   Φ70*1
Screw Ratio L/D	28:1	28:1	28:1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	15kw*2   18.5kw*1	18.5kw*2   22kw*1	22kw*2   30kw*1
Extrusion Output(Single)	50kg/h	80kg/h	100kg/h
Range of Die	Φ150 Φ120	Φ200 Φ250*1	Φ250 Φ300*1
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max.Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	76kw	88kw	102kw
Overall Dimension	6600*4100*5000mm	6800*4300*6000mm	7000*4800*7500mm
Weight of Machine	4T	5T	6T
