Plastic Sheet Extruder / PVC Film Extrusion Line
Qingdao Huashida Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：HSD
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Product Width：800-3000mm
- Product Thickness：0.2-3mm
- Transport Package：Standard Package
- Specification：ISO9001: 2008
- Trademark：HSD
- Origin：Qingdao
- HS Code：8477209000
- Production Capacity：30 Units,Year
Description

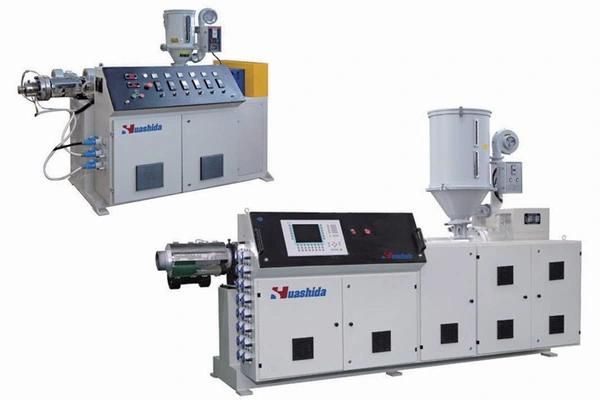

The single screw extruder with AC motor. L/D 30:1.
digital controls, vacuum venting, screen changer, gear box, and a flexible lip die.

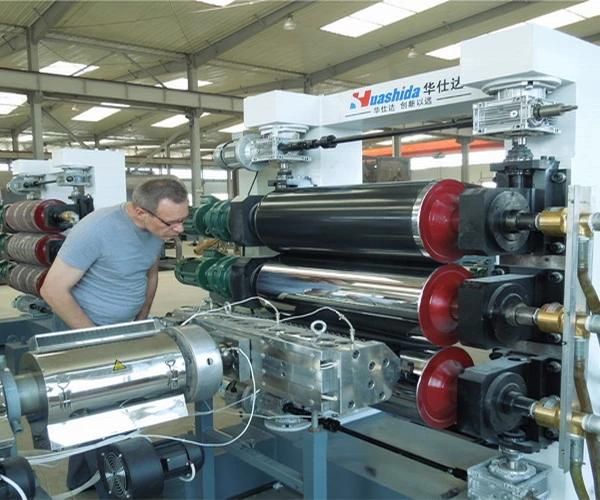

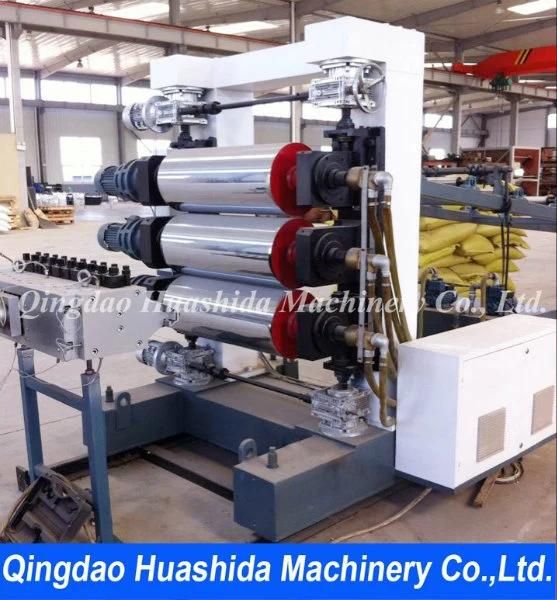

The sheet take-offs (Three rolls calender) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.
The extrusion line also can be equipped with the PLC/PCC control system instrument control system, the specially design screw for HIPS, PP, and PET.
| Extruder | Sheet Width | Sheet Thickness | Capacity | Total Power | Dimension |
| SJ65/30 | Max. 800mm | 0.2-3mm | 150Kg/h | 100Kw | 18× 2× 2.5 |
| SJ90/30(33) | Max. 1200mm | 3-15mm | 280-300Kg/h | 150Kw | 24× 2× 2.5 |
| SJ120/30(33) | Max. 3000mm | 0.5-2.0mm | 500Kg/h | 250Kw | 20× 4× 2.5 |
