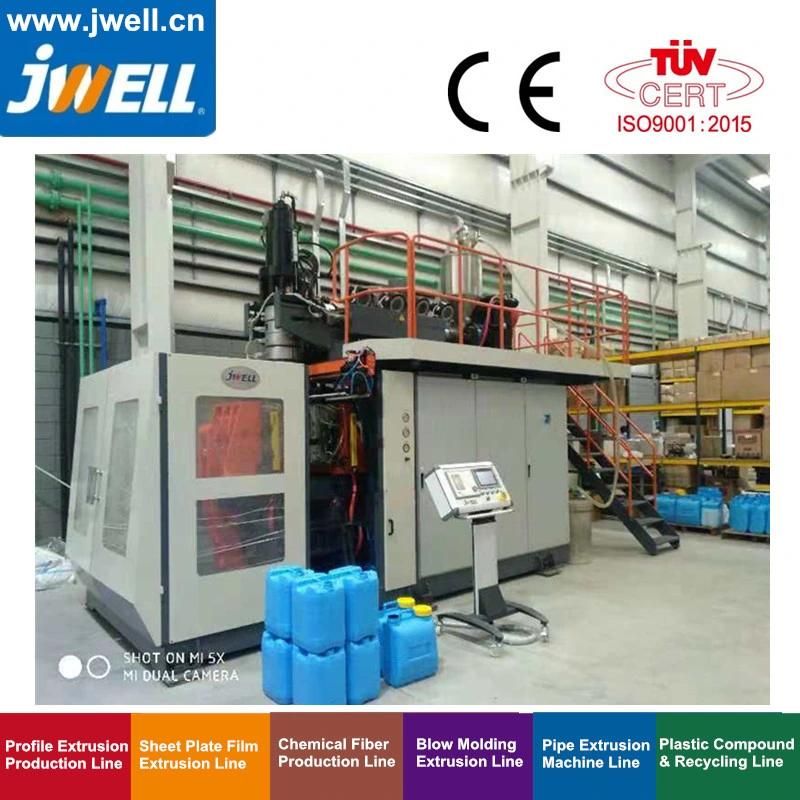

Plastic Extrusion 25L Chemical Packaging Jerrycan Making Blow Molding/Made in China
ZHEJIANG JWELL PIPE EQUIPMENT CO., LTD.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：JWZ-BM30SN-C Blow Molding Machine
- Die Head Structure：Accumulate Type
- Main Screw Diameter：100mm
- Max Product Volume：30L
- Dry Cycle：240PC,H
- Max Plasticizing Capacity(PE)：180 Kg,H
- Driving Motor：55kw
- Oil Pump Motor Power：22kw
- Clamping Force：250kn
- Platen Size W*H：600*640mm
- Station Number：Single
- Machine Dimension L*W*H：5.6*4.8*4.5 M
- Machine Weight：22t
- Total Power：125kw
- Screw Brand：Jinhailuo
- Material：HDPE,PE
- Transport Package：Exported Standard Packing
- Trademark：JWELL
- Origin：China
- HS Code：84774010
- Production Capacity：20pieces
Description
Note: information listed above are for reference only, the production line can be
designed by customer's requirements.
Control system
Control system

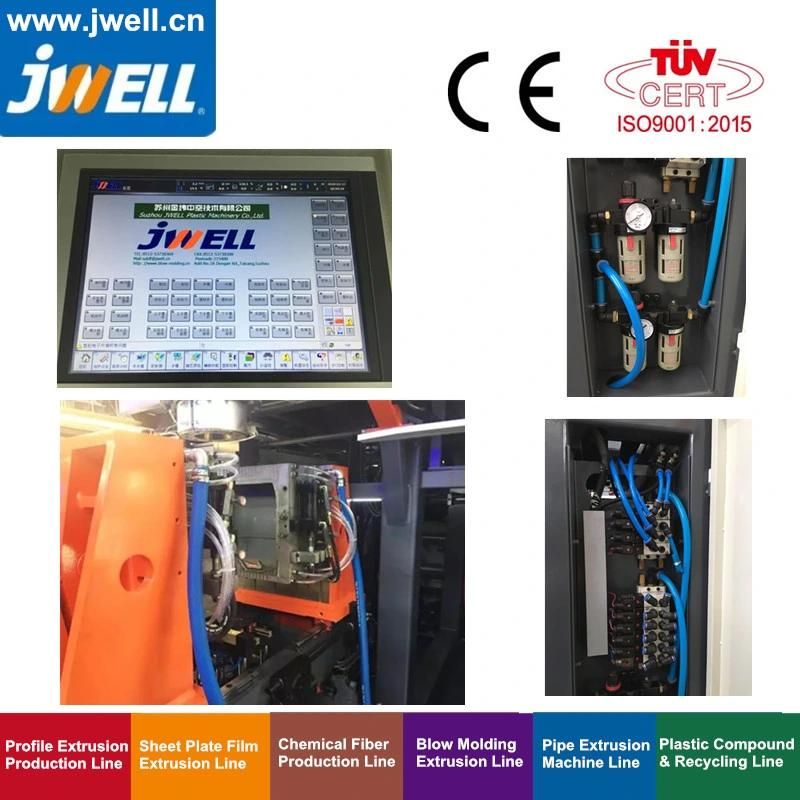

SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on
the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head

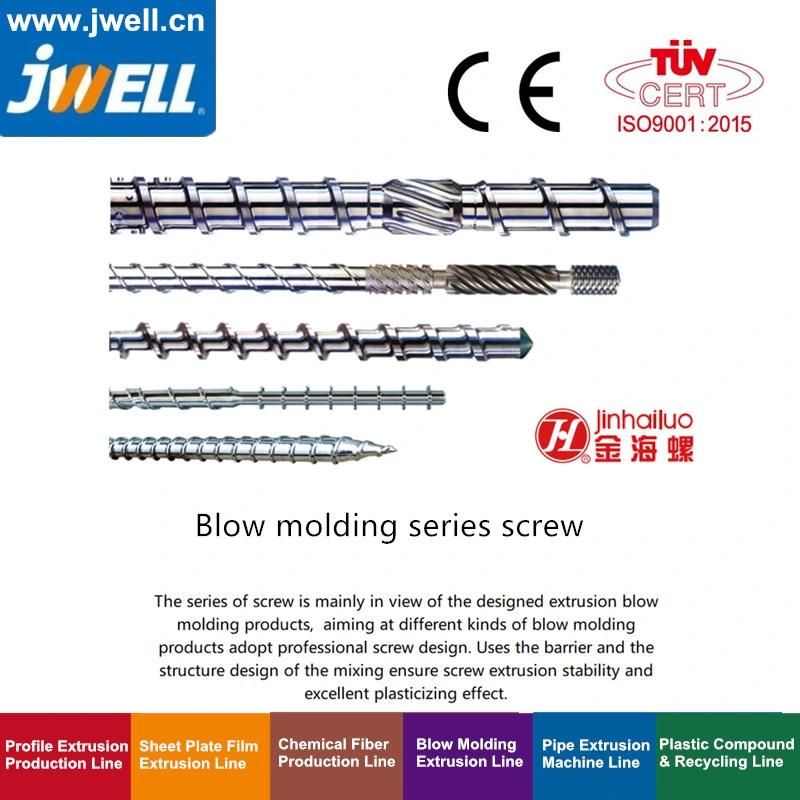

The extruder uses screw and barrel, which is a famous brand
all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
- SIEMENS CPU unit
- SIEMENS temperature-control unit
- SIEMENS digital-output unit
- SIEMENS analog-output unit
- MITSUBISHI CPU unit
- JWELL invertor revolving speed-control
- Schneider electric components
