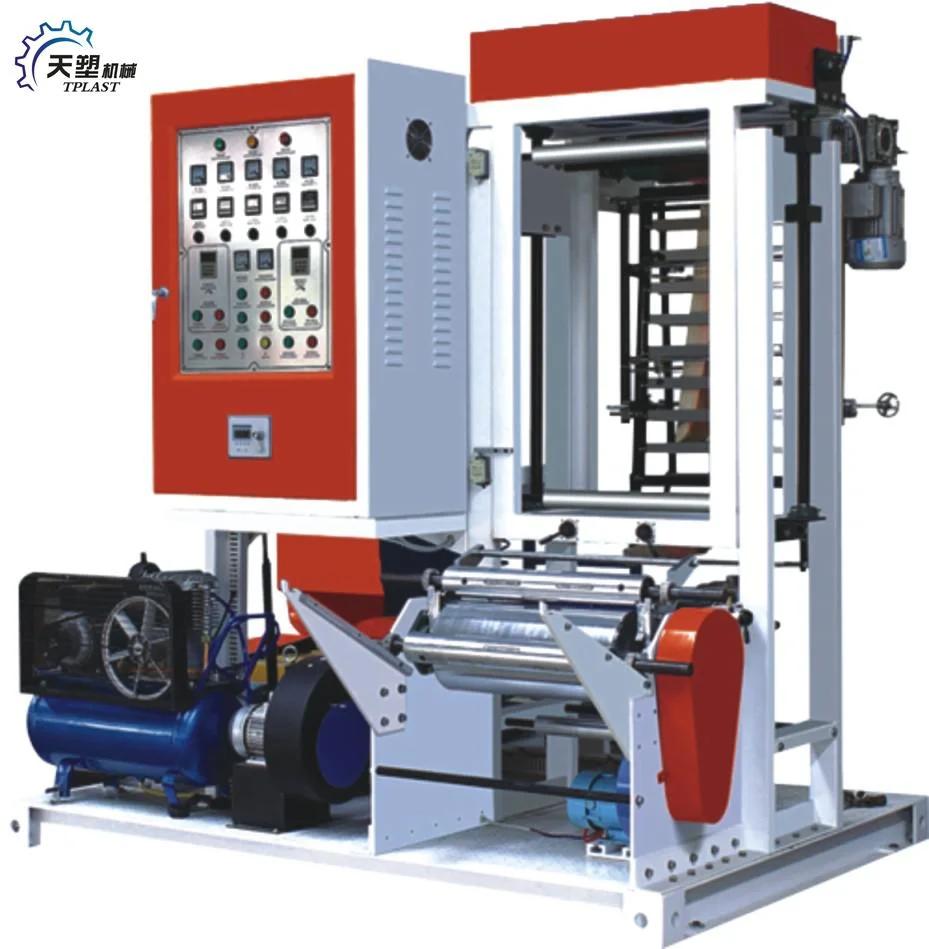

Plastic HDPE Mini Extruder Making Small Film Blowing Machine

RUIAN TPLAST MACHINE CO.,LTD
  • After-sales Service：24h Online Service
  • Warranty：1 Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：500mm
  • Screw Diameter：45mm

Base Info

  • Model NO.：Tp45
  • Automation：Automatic
  • Computerized：Non-Computerized
  • Machine Weight：1800kg
  • Certification：CE, ISO9001:2008
  • Screw Diameter (mm)：45
  • Film Width(mm)：100-500
  • Film Thickness(mm)：0.006-0.10
  • Max. Extrusion Output (Kg/H)：50
  • Die Size(mm)：60,100 High Speed Type
  • Main Motor：Siemens Brand
  • Inverter：LG Brand
  • Temperature Controller：Omron Brand
  • Screen Changer：Yes
  • Stronger Structures：4.5mm Thickness Steel Tube and 12mm Thickness Stee
  • Material：LDPE,LLDPE
  • Motor：Chaoyue Brand China
  • Blower：1.5kw
  • Air Ring：Single Lip
  • Switch and Button：Chint
  • Transport Package：Wooden Plate
  • Specification：500mm
  • Trademark：RuiGao
  • Origin：Ruian Zhejiang China
  • HS Code：847730900
  • Production Capacity：20 Sets,Month

Description

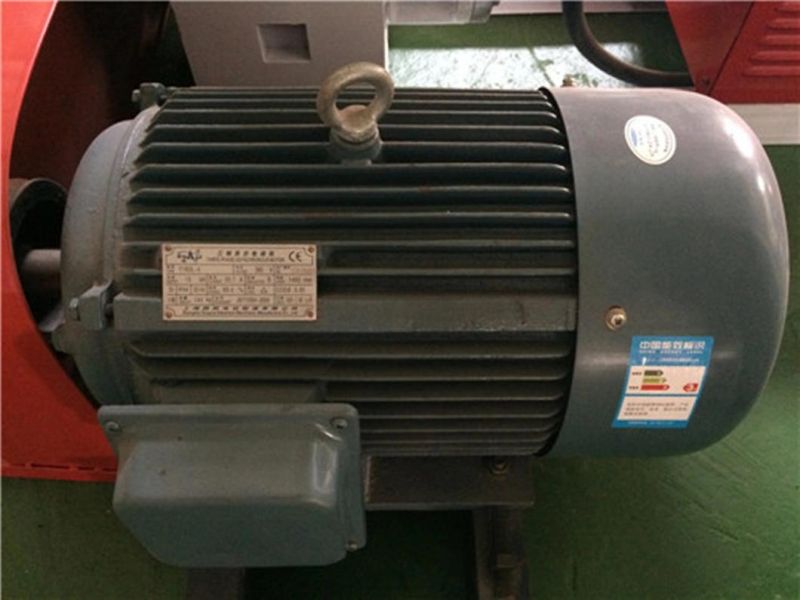

Plastic HDPE Mini Extruder Making Small Film Blowing MachineMain motor:
1, It is Chaoyue brand Main motor, CE standards
2, Speed is 1400rpm, 6pole type, bigger power.
 Air ring:
1 Single Lip air ring, Aluminum materials. 6 air inlet.
2, High speed blower to cool the film, cooling fast.

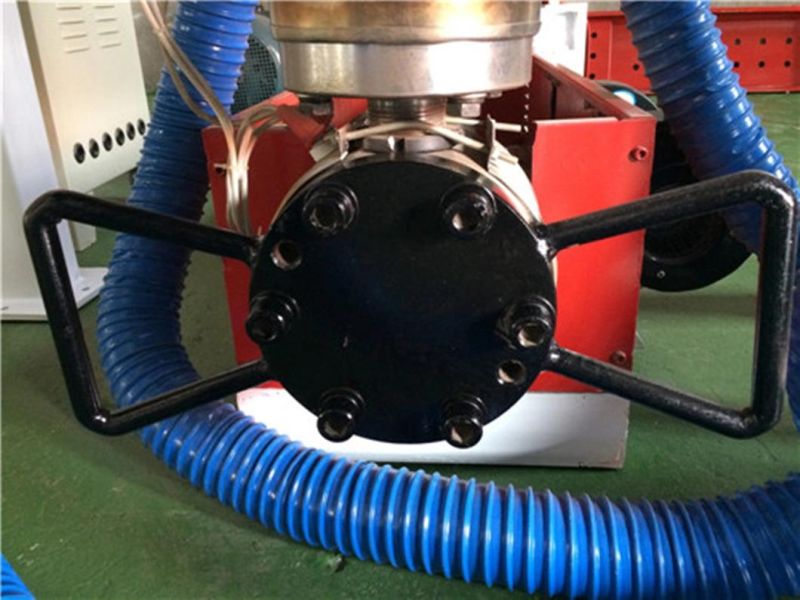

 Plastic HDPE Mini Extruder Making Small Film Blowing MachinePlastic HDPE Mini Extruder Making Small Film Blowing MachineScreen change:
1, T Type, we need change the filter by Manual. No Leakage
2, Filter size: 50LPI, stainless or steel.
 Gusset part with lifting system
Gusset copied from Taiwan
1,Gusset parts is copy from taiwan, easy to adjust.   2, Wooden gusset parts is make
Traction motor:  1, 1.5kw,1400rpm running speed   2, Gearbox: 7.5:1 running speed

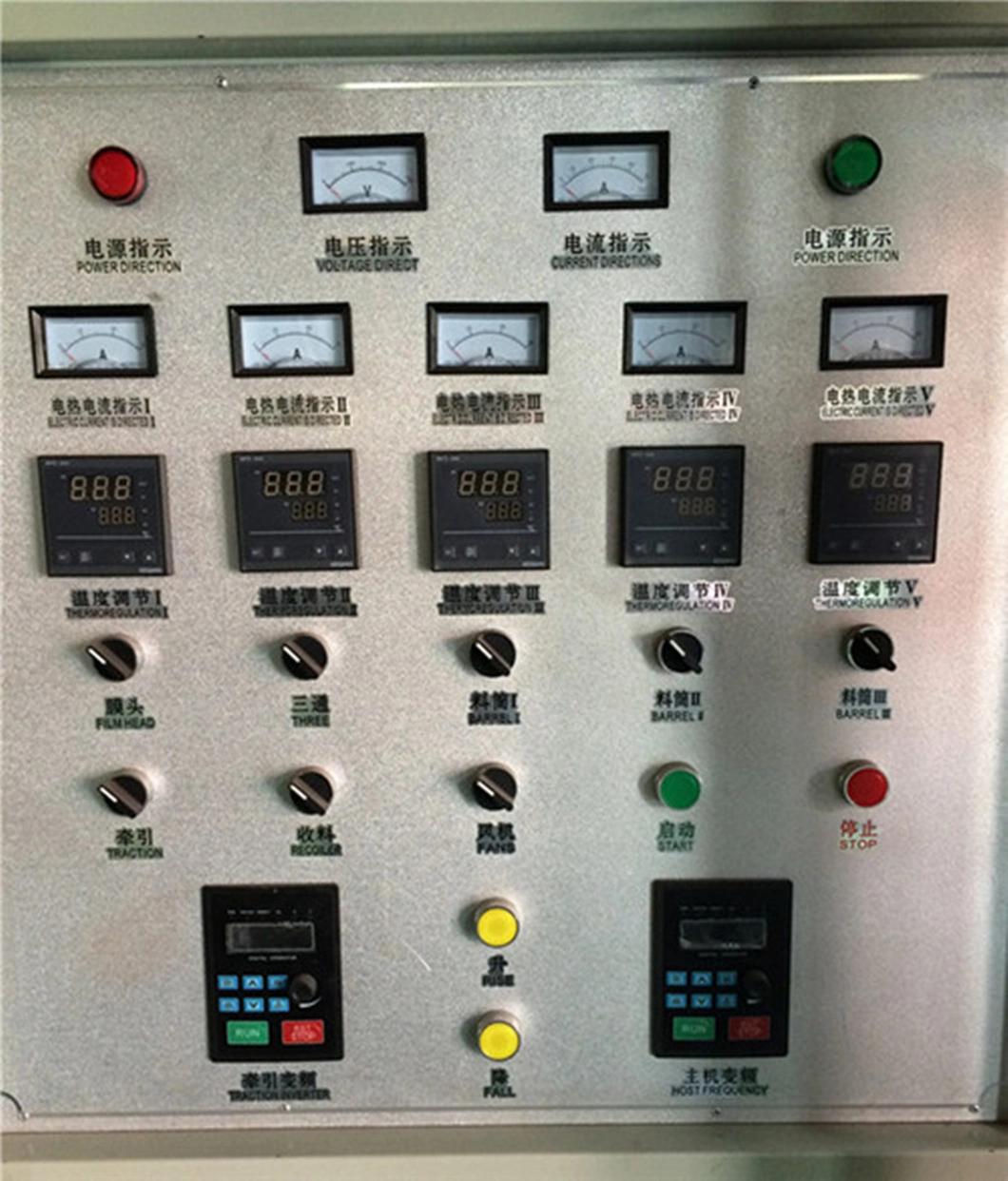

 Plastic HDPE Mini Extruder Making Small Film Blowing MachinePlastic HDPE Mini Extruder Making Small Film Blowing MachineEletric controller box and inverter:
1,Shenou Brand Inverter, More 10 years life.CE standards
2,CHINT Switch and Button, Best supplier in China.
3, The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30 %. the take-up motor is also adjusted by frequency inverter.

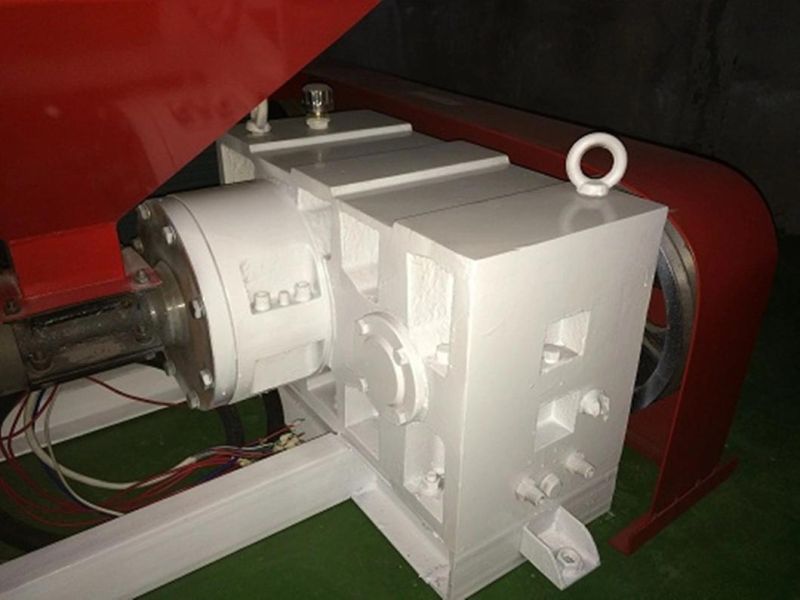

 Gearbox:
1, It is Hard gearbox, more 10 years life
2, Lubrication oil with oil mark, which make bearing smoothly
 Plastic HDPE Mini Extruder Making Small Film Blowing Machine


Plastic HDPE Mini Extruder Making Small Film Blowing Machine
Plastic HDPE Mini Extruder Making Small Film Blowing Machine
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.



You are welcome to contact with us, we will provide excellent quotation and high quality machine.
