2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：High and Low Pressure Film Blowing Machine
  • Raw Material：LDPE
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：65mm
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FM-1100S10
  • Machine Weight：3 Tons
  • Certification：CE, ISO9001:2008
  • Application：Package, Film
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：4.7*2.75*4.5m
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477800000

Description

LDPE / LLDPE / HDPEthickness0.02--0.20mmfilm width(mm)700400--1000400--1200160018002100max output45kgs/hr55kgs/hr70kgs/hr105kgs/hr150kgs/hr200kgs/hr Extruder30:1temp. controller5 zone5 zone5 zone6 zone6 zone8 zonebarrel cooling120w*2120w*2120w*2250w*3250w*3250w*3driving motor11kw15kw22kw30kw37kw45kw Die headSpiral mandrel die chrome plated surface 40Crcooling fan950w1.5kw2.2kw3kw4kw4kwTake up auto-loader, film surface treater, fast change net, air compressor, double center rewinder/auto-rewinder, flat cage roll rewinder, rotary die head, double wind air ring

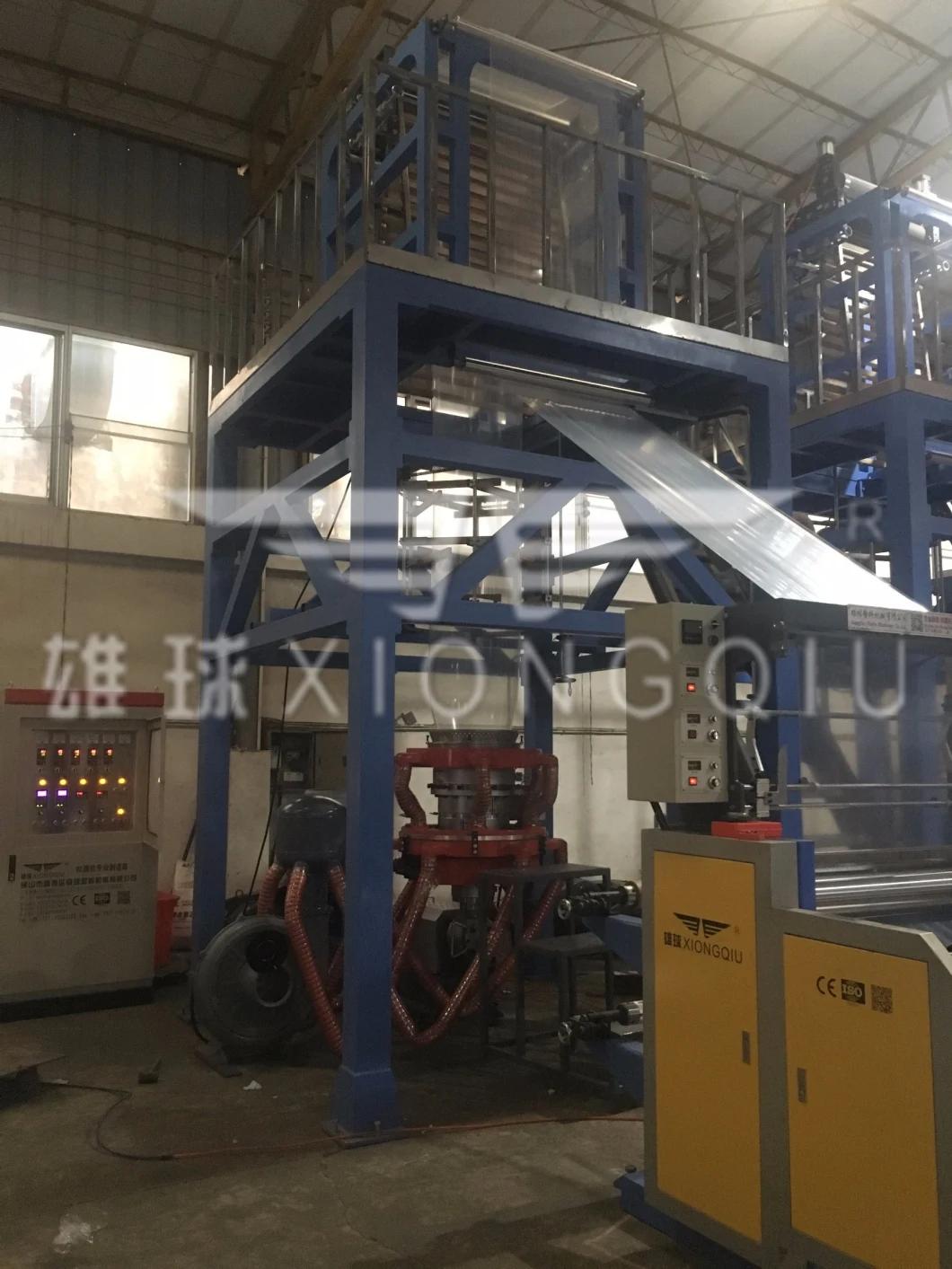

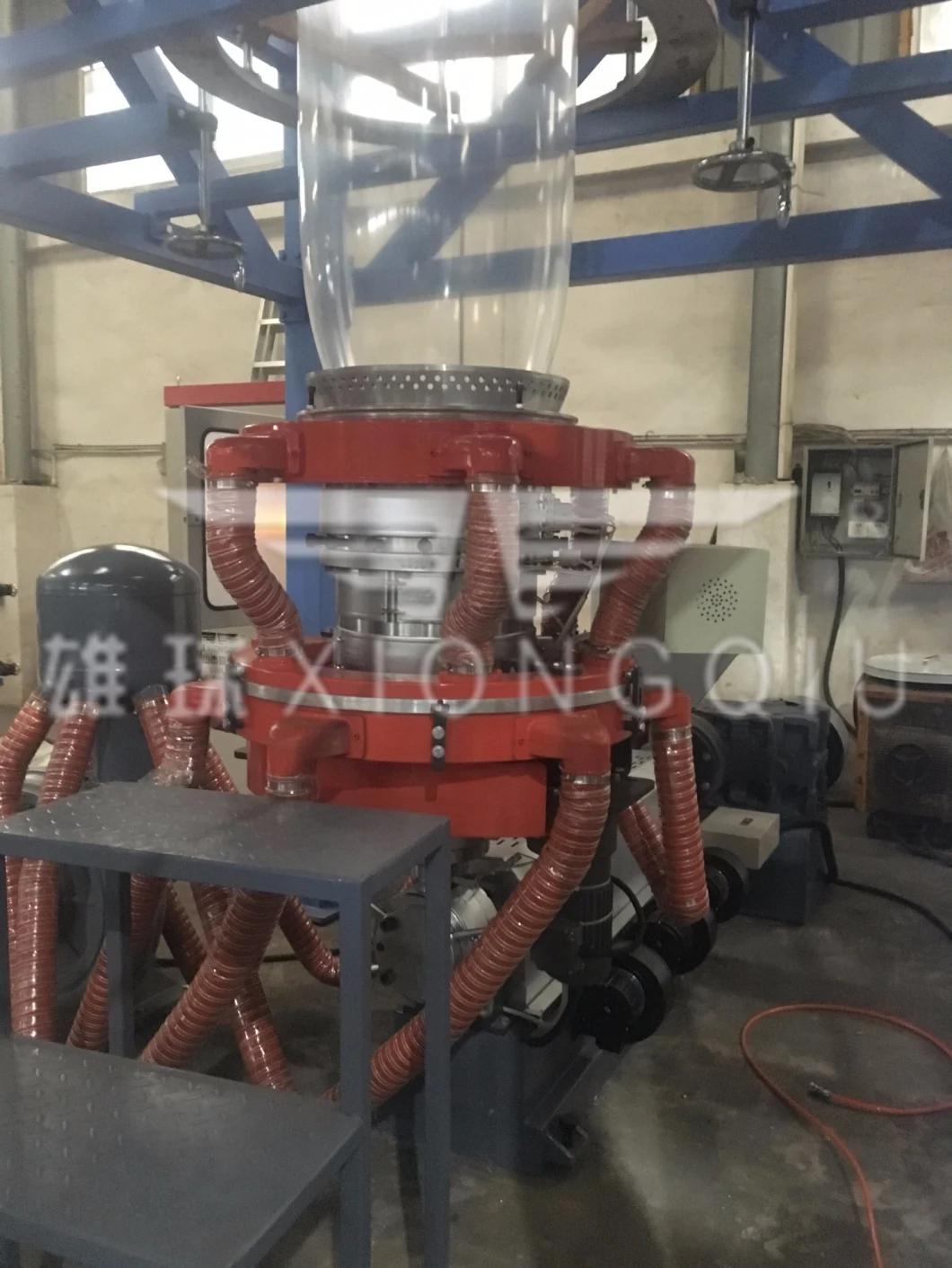

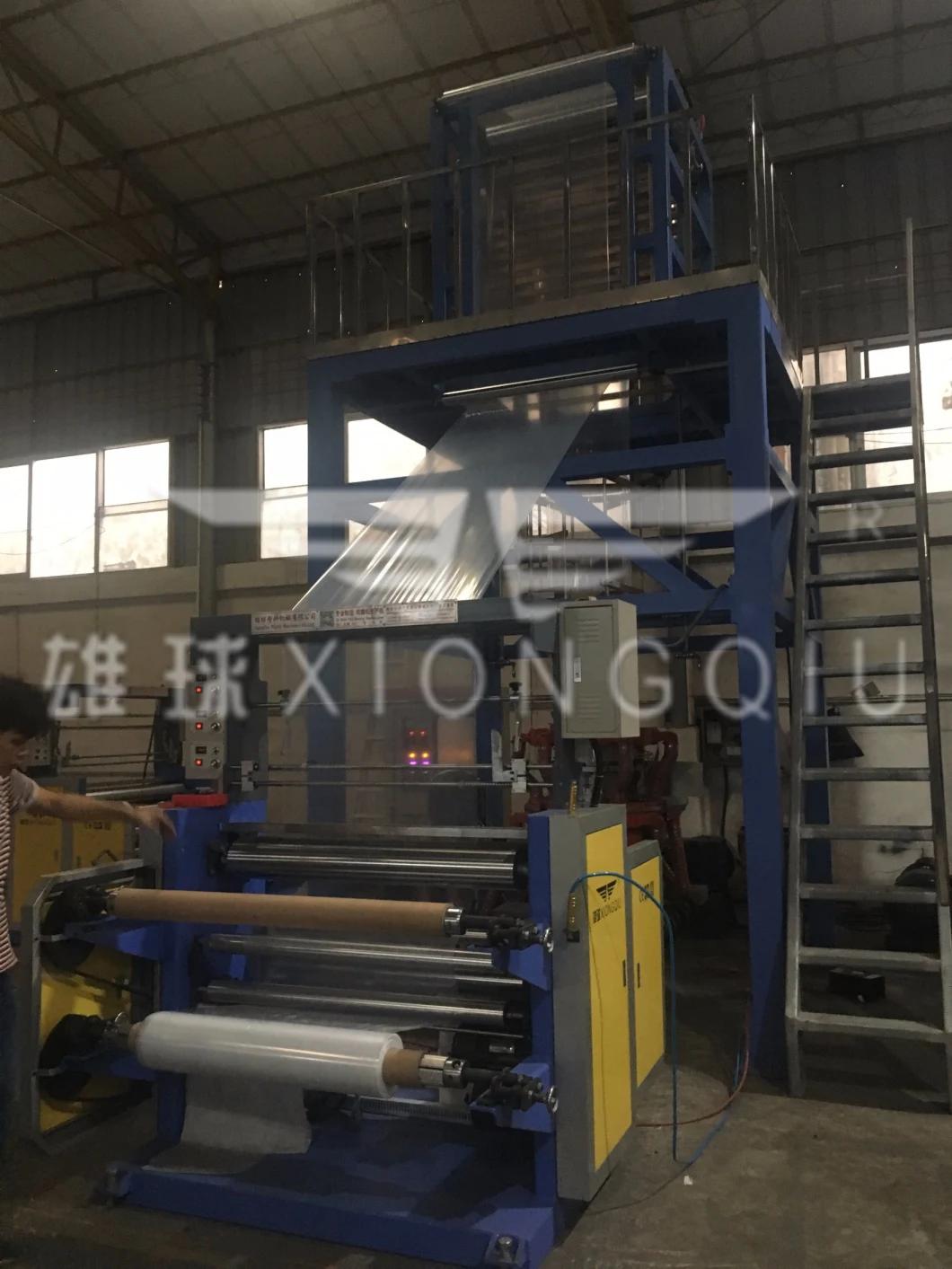

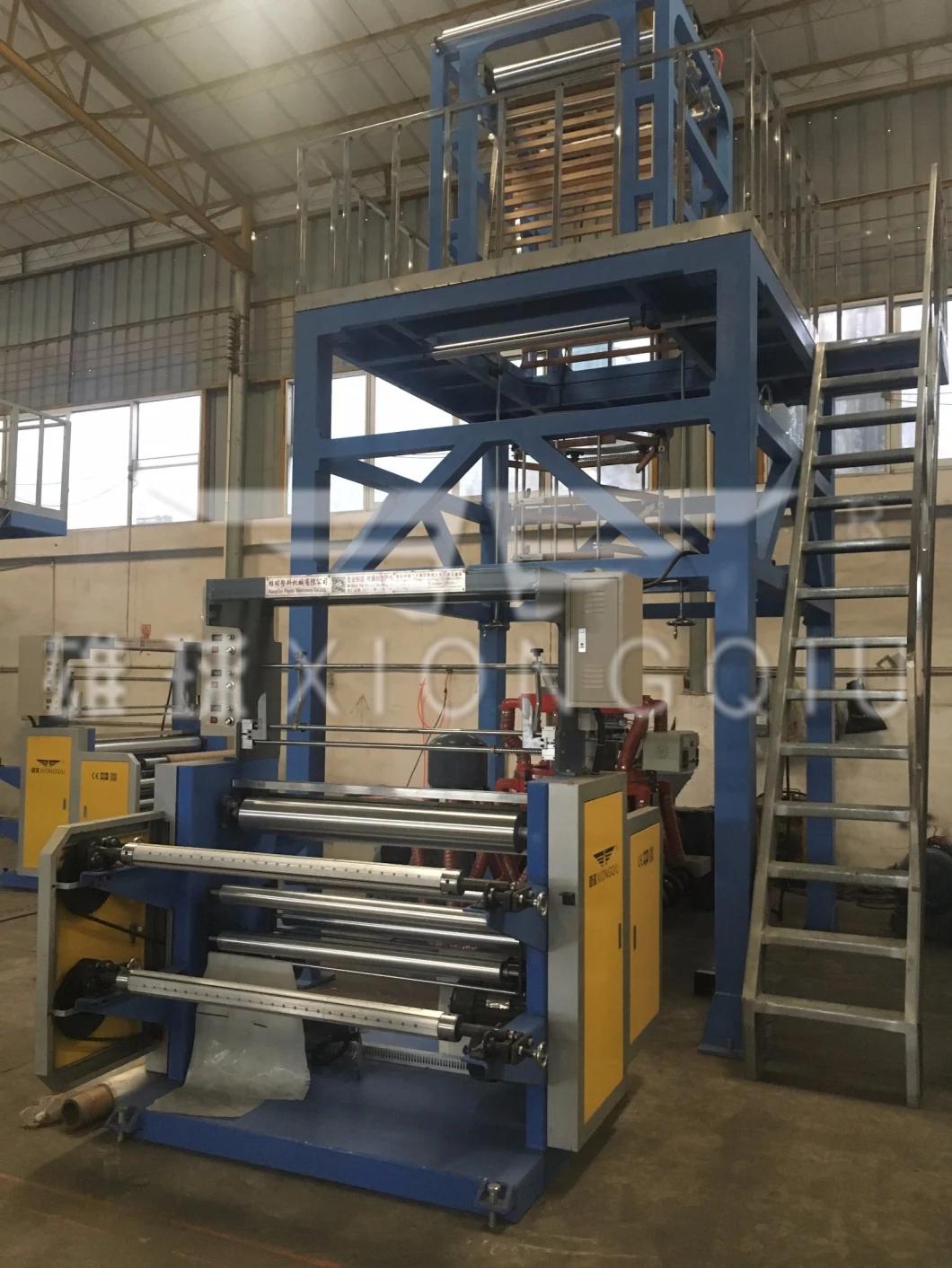

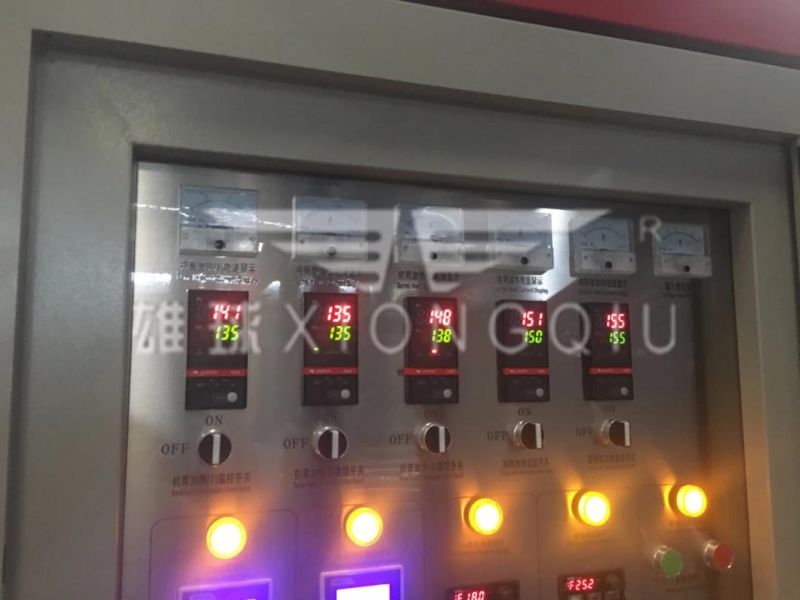

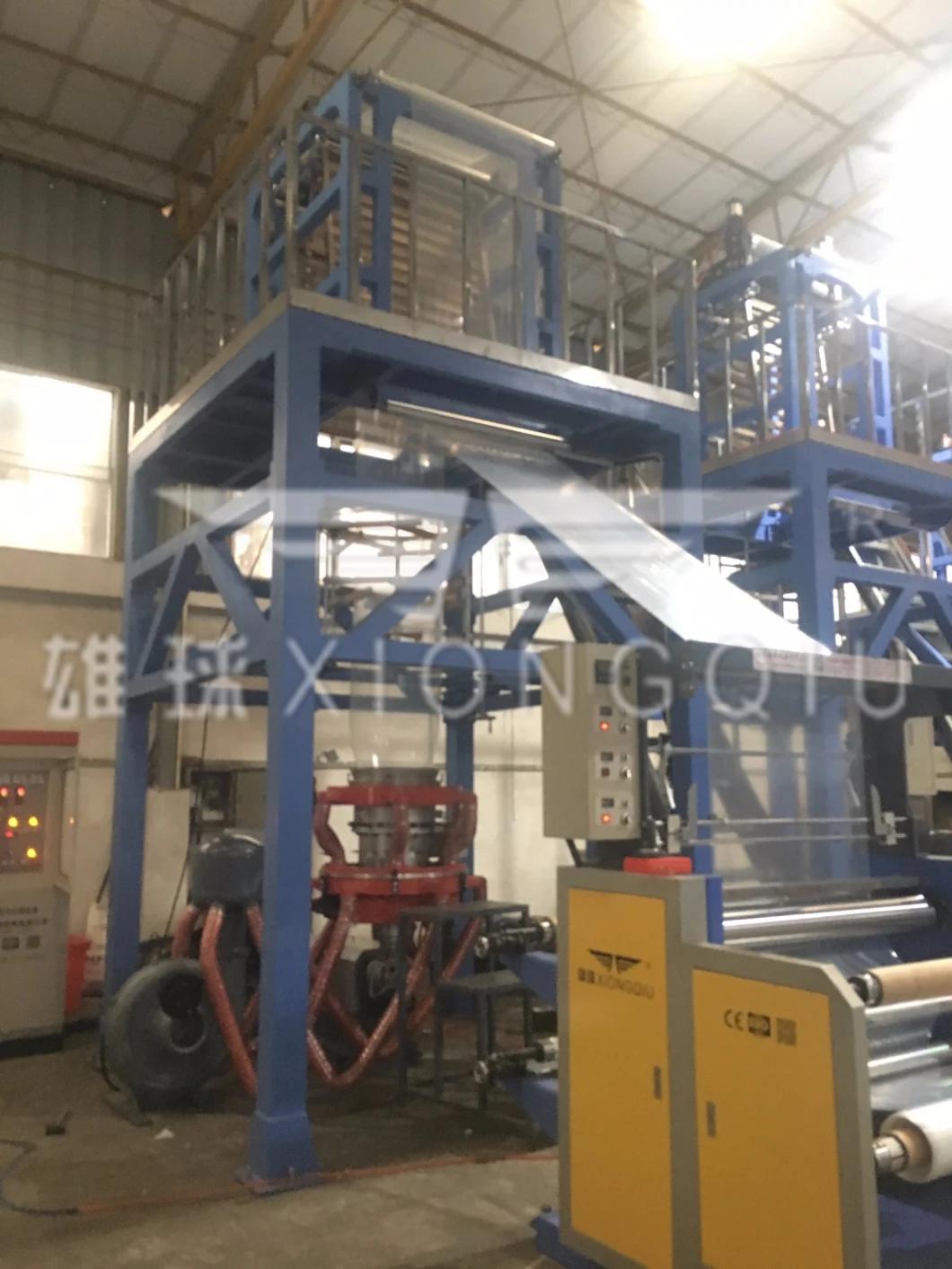

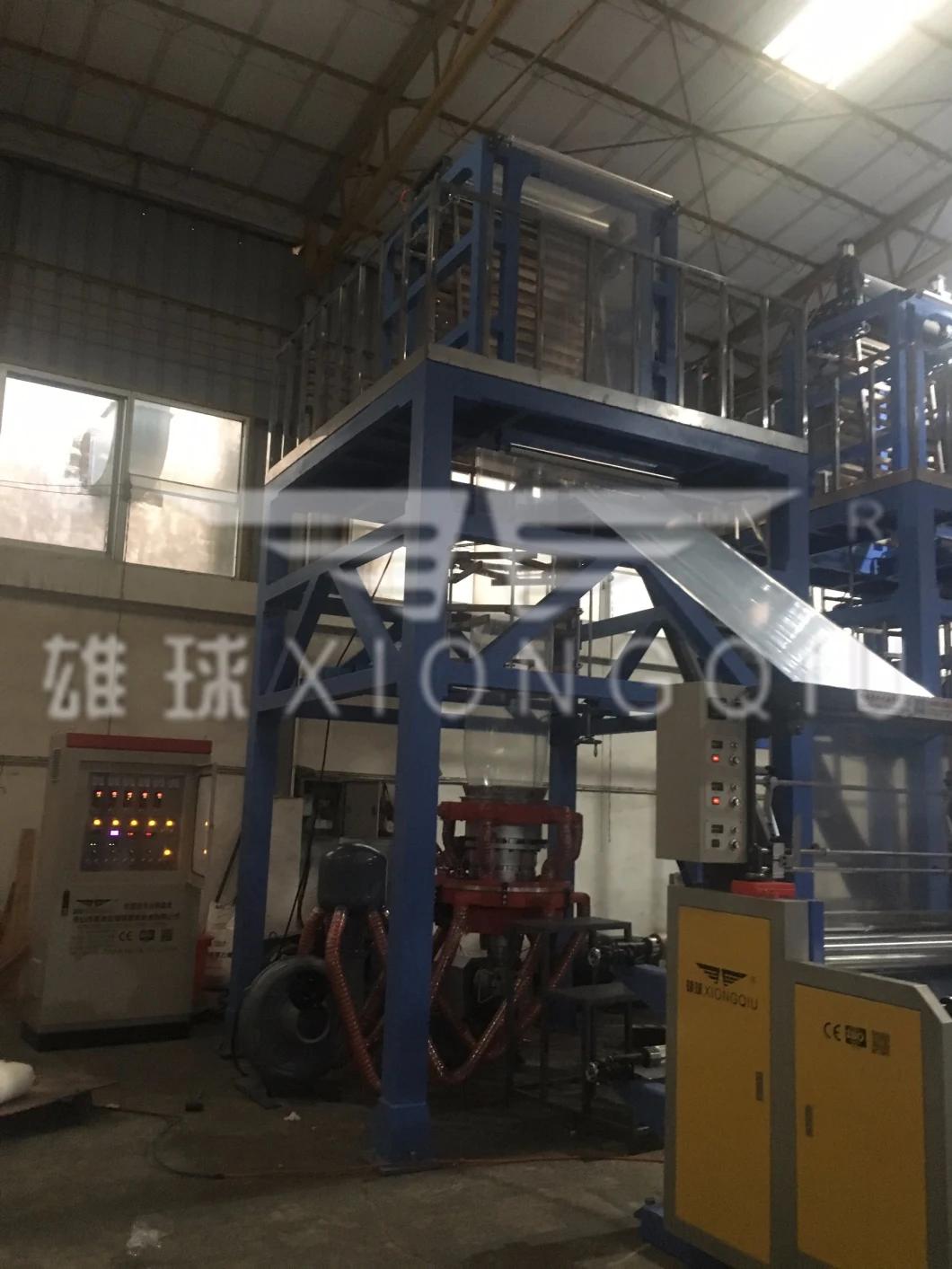

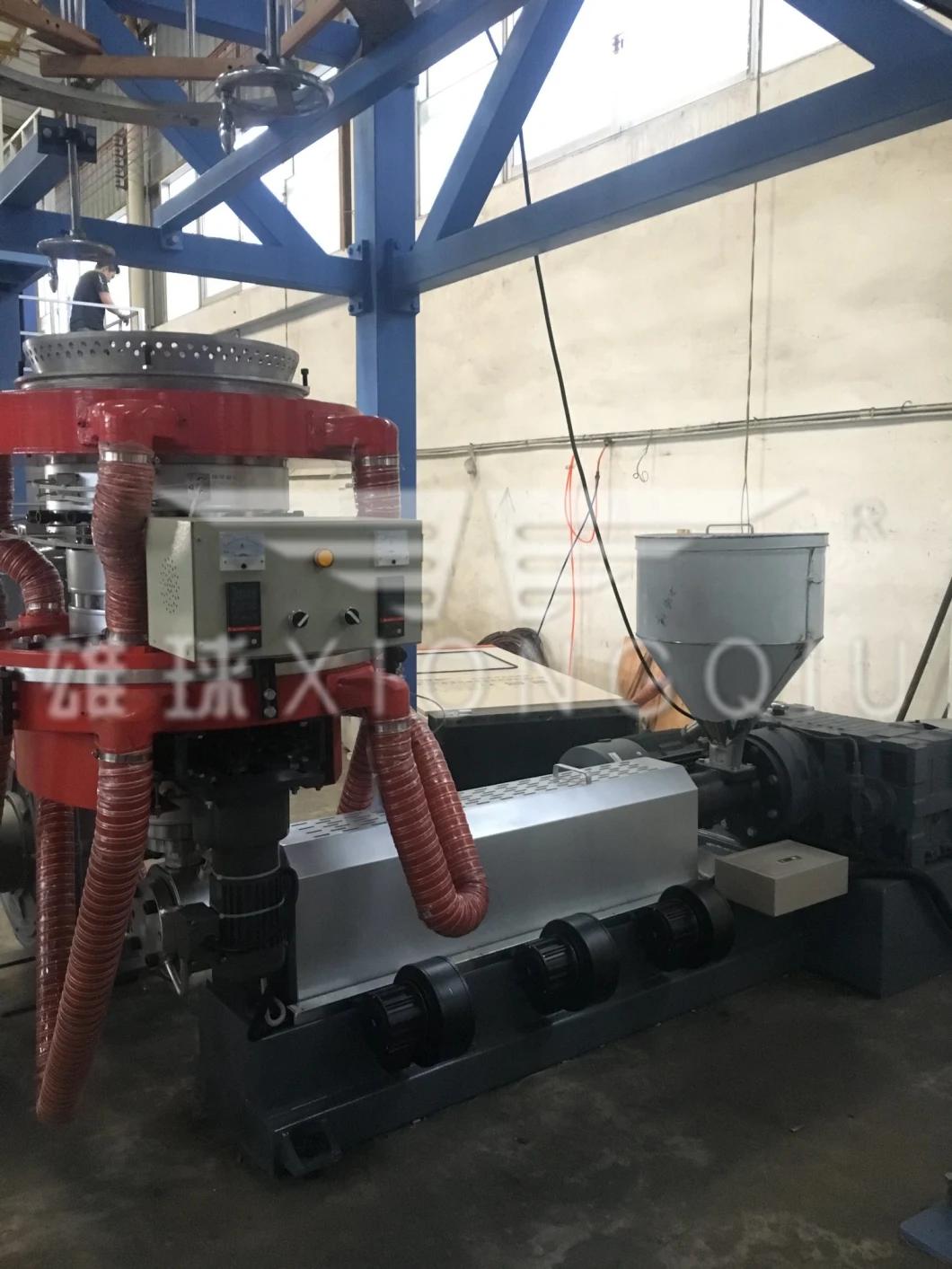

Pictures for reference:

2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
2019 Xiongqiu Hot Sale High Speed Plastic HDPE LDPE PE PP Film Blowing Machine
