2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film ...

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：LDPE , LLDPE , HDPE
  • Maximum Folding Width of Film：2500mm
  • Screw Diameter：85mm*3
  • Automation：Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FM3-2600S6
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Machine Size：L*W*H: 8.5m * 5m *12m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：3 layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

HDPEthickness0.02--0.20mmfilm width1200mm1600mm1900mm2100mmmax output80kgs/hr105kgs/hr150kgs/hr215kgs/hr Extruder30:1temp. controller15 zone15 zone16 zone16 zonebarrel cooling120w*4120w*4120w*6120w*6driving motor11kw*315kw*318.5kw*330kw*3 Die headSpiral mandrel die chrome plated surface 40Crcooling fan2.2kw3kw4kw5.5kw Take up partauto-loader device, film surface treater, air compressor, fast change net, automatic winder, double wind air ring, IBC inner cooling die head

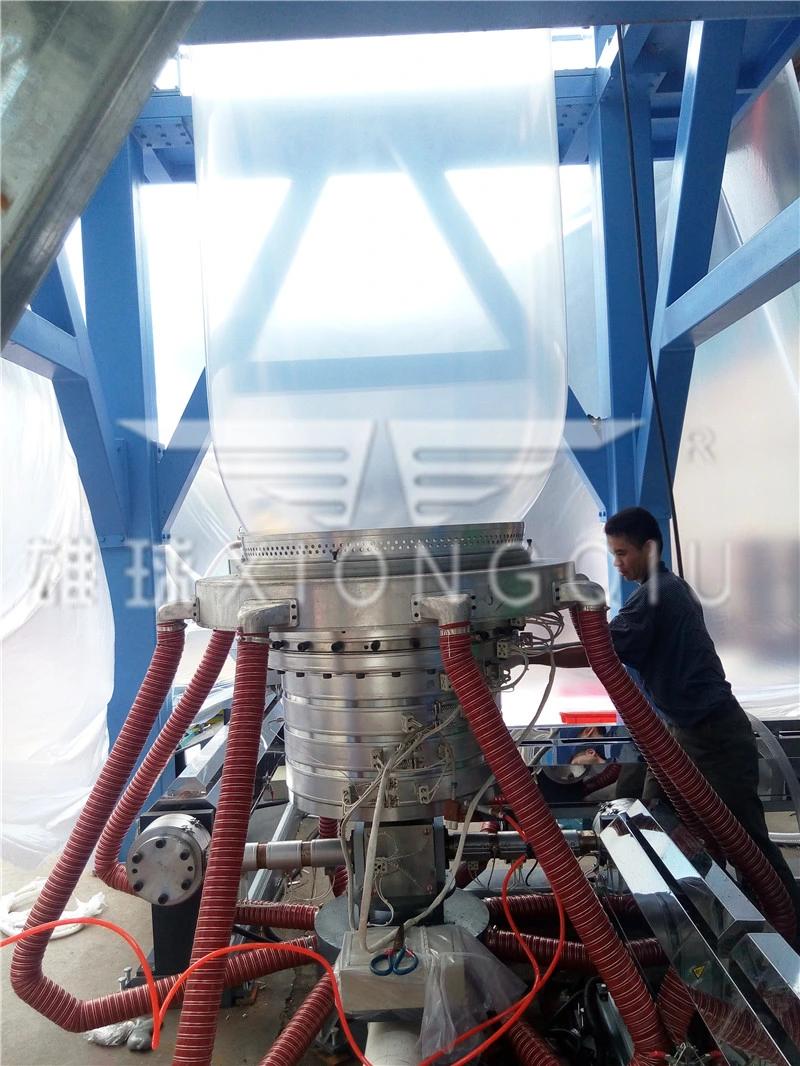

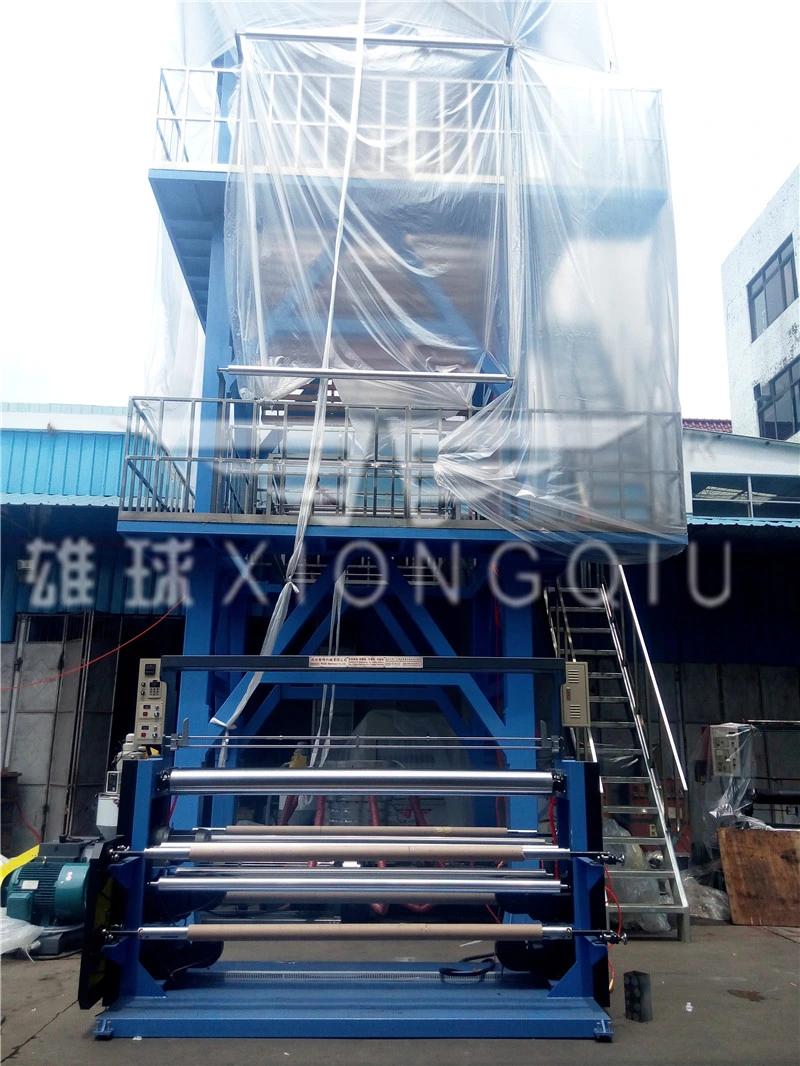

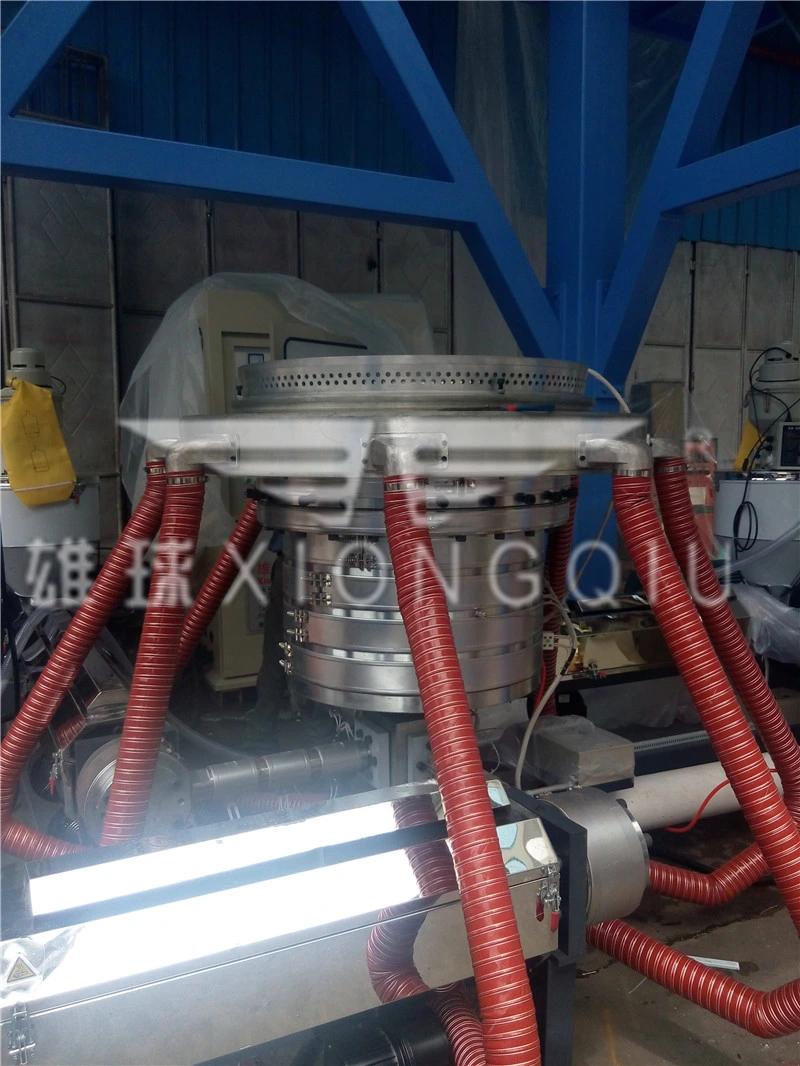

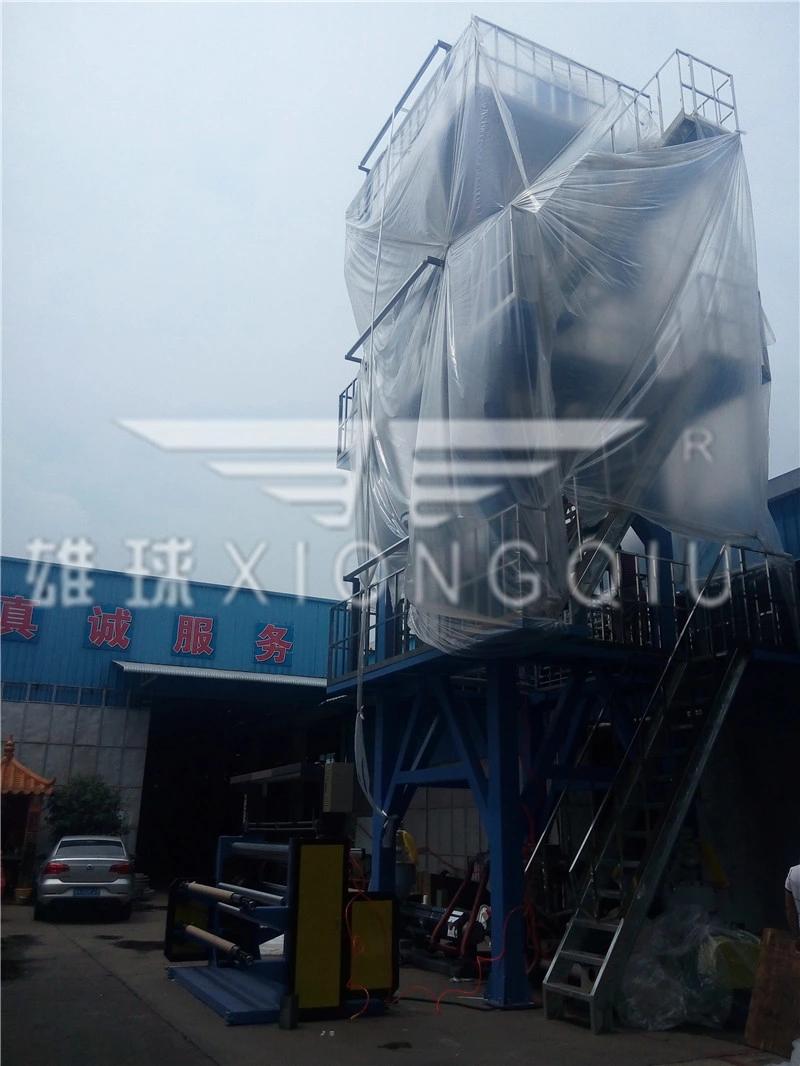

PICTURES FOR REFERENCE:
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine

2019 Xiongqiu High Quality High Speed Three Layer Co-Extrusion ABC HDPE LDPE LLDPE Film Blowing Machine
