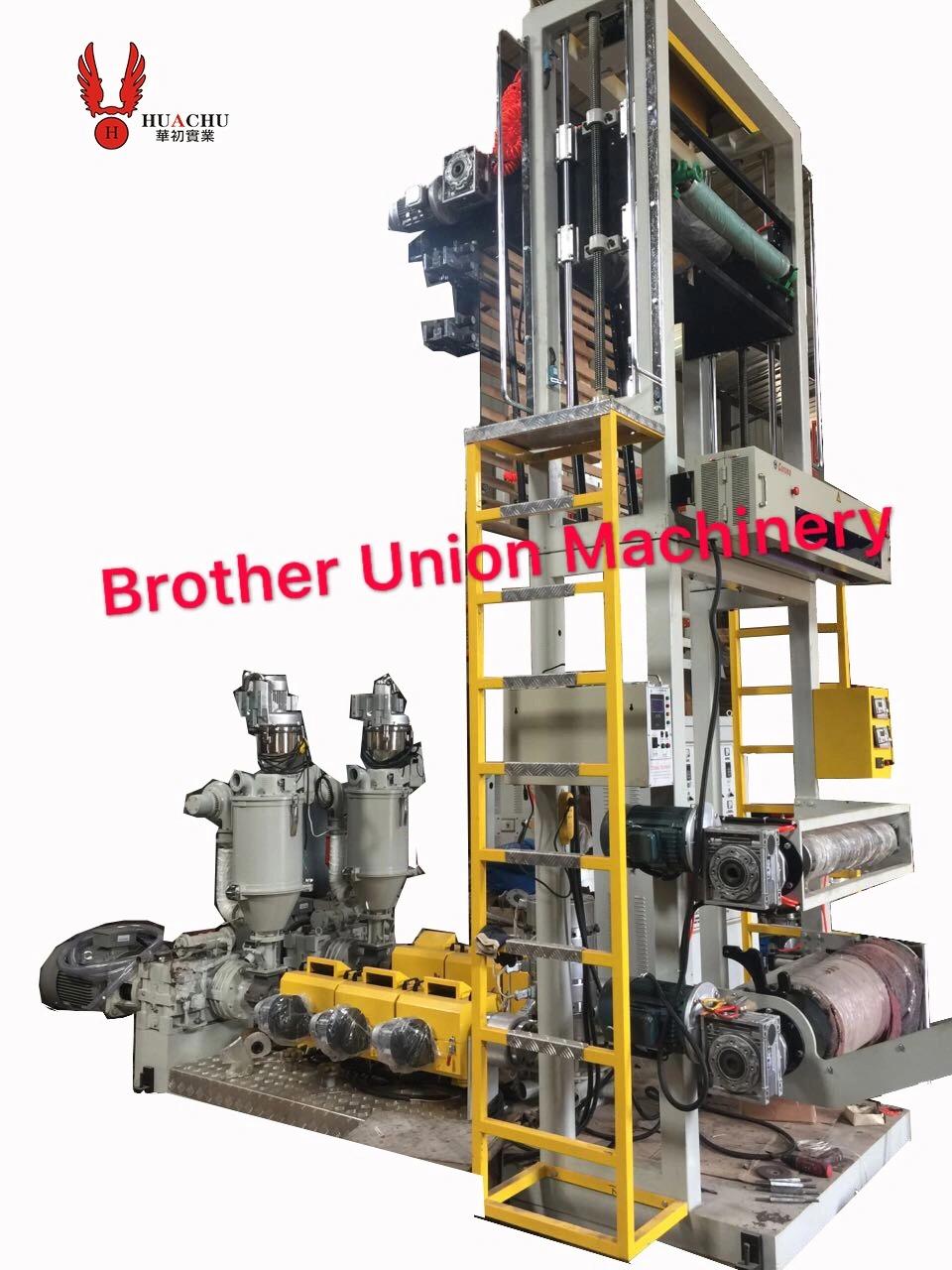

ABA Mini 45*2 Film Blowing Machine

WENZHOU HUACHU MACHINERY CO., LTD.
  • Type：Three-Layer Co-extrusion Film Blowing Machine
  • Raw Material：HDPE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：45mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：HDABA45X2X1000
  • Trademark：000
  • Origin：Zhejiang
  • HS Code：8477301000
  • Production Capacity：200

Description

FEATURESUITABLE MATERIALHDPE, LDPE,LLDPELAYER NUMBER3-ABAFILM THICKNESSHD: 0.01-0.06MM, LD: 0.03-0.08MMMAX OUTPUT100KG/HMAX FILM WIDTH900MMEXTRUSION UNITSCREW DIAMETERΦ45X2SCREW L/D RATIO30/1SCREW MATERIALBIMETALLICBARREL MATERIALBIMETALLICBARREL THERMO CONTROL3X2BARREL COOLING FAN200WX3X2SCREEN CHANGERSTANDARDDRIVING MOTOR18KWX2  SIEMENSGEARBOX#146EXTRUSION DIE UNITDIEHDABAΦ60/80DIE TYPEFIXEDDIE THEROMO CONTROL2AIR RINGDUAL LIPFLANGE THERMO CONTROL2AIR BLOWER5.5KW, CHUANFAN TAIWANTAKE UP UNITTAKE UP TYPEFIXEDBUBBLE CAGE MATERIALWOODENTOP NIP MATERIALWOODENTAKE UP ROLL MATERIALHIGH TEMP RUBBERTAKE-UP ROLLER LENGTH1000MMGUSSETINCLUDEDTAKE-UP MOTOR1.5KW GEAR MOTORTAKE-UP SPEED10-80M/MINPINCH PATTERNPNEUMATICWINDING UNITWINDING TYPESINGLE MANUAL WINDERWINDING ROLLER LENGTH1000MMWINDING SHAFTSTOPPER SHAFTX2BANANA ROLLERWITHMAX DIA.OF WINDED ROLL800MMWINDING MOTORTORQUE MOTORSPEED CONTROLSPEED CONTROLLERCONTROL PANELHEATING SYSTEMACR+PID (ENERGY SAVING)TEMP. CONTROLLERFOTEK (TAIWAN)WORKING VOLTAGE380V,50HZINVERTER BRANDDELTA


ABA Mini 45*2 Film Blowing Machine

ABA Mini 45*2 Film Blowing Machine
ABA Mini 45*2 Film Blowing Machine


ABA Mini 45*2 Film Blowing Machine


Welcome to contact  us for more details and prices!!!
