• Model NO.：SJ-90,33
• Engagement System：Non-Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Wooden Case
• Specification：Width: 100± 2mm
• Trademark：WEIER
• Origin：Qingdao China
• HS Code：84772090
• Production Capacity：10 Set,Month

Basic Info.

Model NO. SJ-90/33 Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package Wooden Case Specification Width: 100± 2mm Trademark WEIER Origin Qingdao China HS Code 84772090 Production Capacity 10 Set/Month

Product Description

100mm Prefabricated Vertical Drain (PVD) production line with online welding unit

Equipment list
1.SJ-90/33 single screw extruder machine 1 set            Max extrusion capacity 250kg/h
2.Machine mould 1 set (Width of the finished product 100 mm )
3.Cooling water tank 1 set
4.Haul off machine 1 set
5.Non-woven fabrics material rack 1 set
6.Guiding device 1 set
7.Shrink forming device 1 set
8.Bonding apparatus 1 set
9.Composite and tightening device 1 set
10. Haul off machine 1 set
11.Double station rewinder 1 set

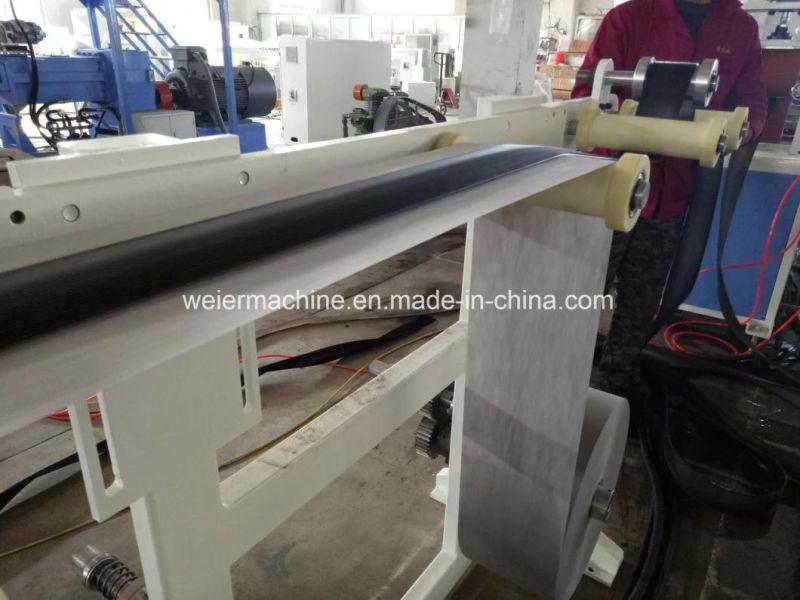

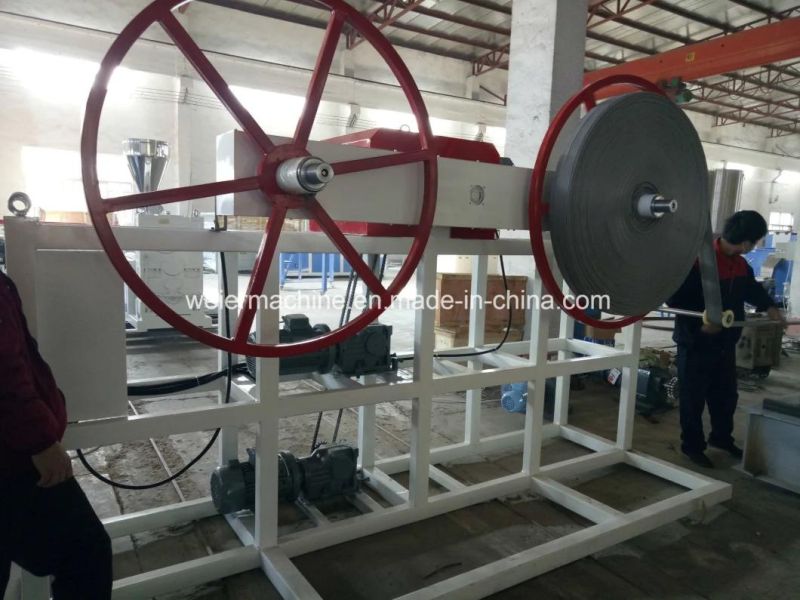

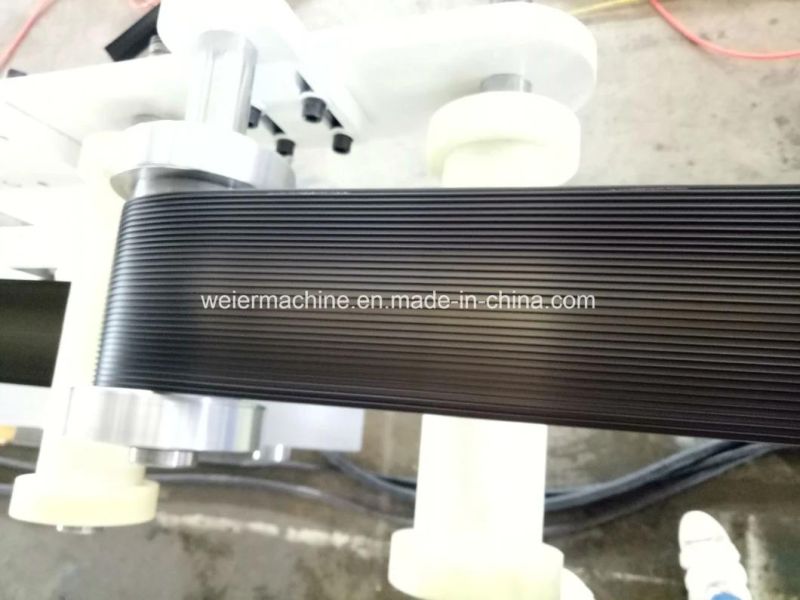

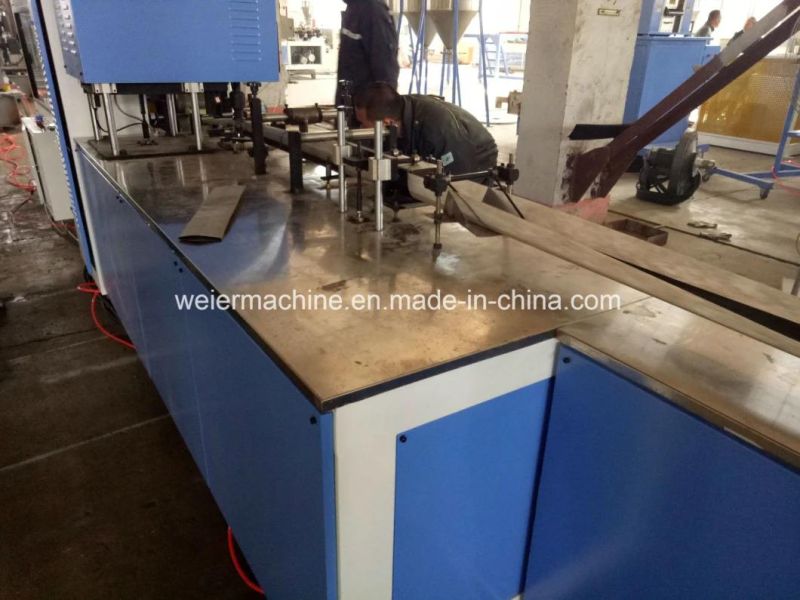

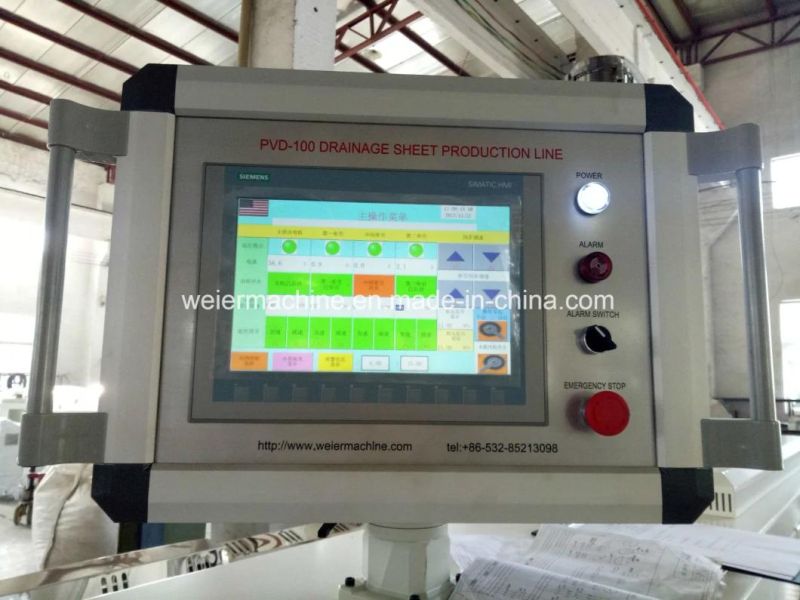

Equipment photos





Description
prefabricated vertical drain(PVD) wick drains

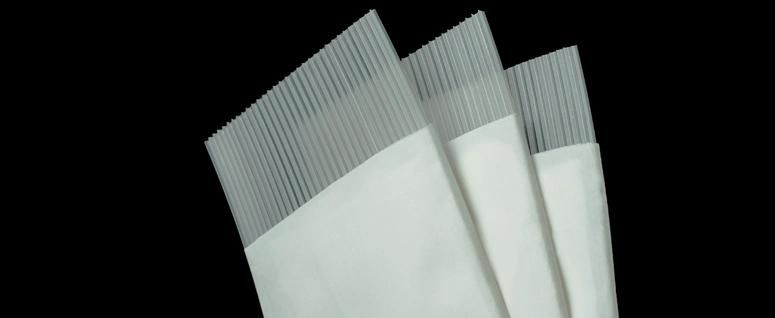

Integral Plastic Vertical Drain is a new material after innovation and improvement on the basis of traditional, made by extrusion molding process with regular shape. The filtration membrane wrapping the core board adopts one-step forming using special hot melt adhesive equipment. The section is to form a harmonica shape; it owns excellent rigidity and endures great side pressure. Every waterspout to be a single one and any of other waterspout won't be influenced by any local damage, so we can insert this kind of drain to deeper layer. It is no peculiar smell, no need glue, and it harmless to worker's health and protect environment.

Specification:

Thickness: 3.5mm, 4.0mm, 4.5mm.

Width: 100±2mm

Roll Length: 200mm

Appearance of the product:
1. Appearance of packing: pie form, middle rolled as a round; 200m/piece; diameter 0.8-1.3m; thickness in 0.1m.
2. Section: harmonica form, cross-core structure.

Features for Plastic vertical drain:
1. The filtration performance is good, smooth drainage, drainage effect is guaranteed.
2. Materials have good strength and ductility, can be suitable foundation deformation capacity without affecting drainage performance.
3. The section size of drain is small, so disturbance is small too to the foundation when in operation.
4. Fast construction and working time is short. Each drilling machine can finish over 15,000 meters, which greatly save cost and shorten the construction period.
5. Flexible construction and low requirement to construction environment, applicable to variety of soft soil foundation and super soft soil foundation reinforcement treatment.

Applications
PVD is applied to reduce construction time and speed up the consolidation of soft ground for the following work:

1.Bank revetment
2.Development of seaport area
3.Road, railway & airport construction
4.Improvement of dredged clay fill
5.Construction of gas & oil storage facilities
6.Development of building & industrial complex site
