• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Sea Weathy Packing
• Specification：ISO, CE
• Trademark：JINFUXIN
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：100 Sets Per Year

ModelPipe DiameterExtruderOutputInstallation PowerExtruder Power(mm) (kg/h)(kw) (kw)SJ4516~32SJ45/30 SJ25/2530~604022SJ6520~75SJ65/33 SJ25/2580~1206537SJ7550~160SJ75/33 SJ25/2580~15015075SJ9075~250SJ90/33 SJ25/25280~350200110SJ120160~315SJ120/33 SJ30/25300~450280185SJ150315~630SJ150/33 SJ30/25550~800420285









Configuration:



  Plastic automatic loader →Hopper plastic dryer→ Single screw extruder (Mark line extruder)→ Mould and calibrator → Vacuum forming machine → Water cooling tank → Haul off machine → Cutting machine → stacker







  III. MAIN FEATURES:



• extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.
• gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.
• extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.
• screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.
• driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.

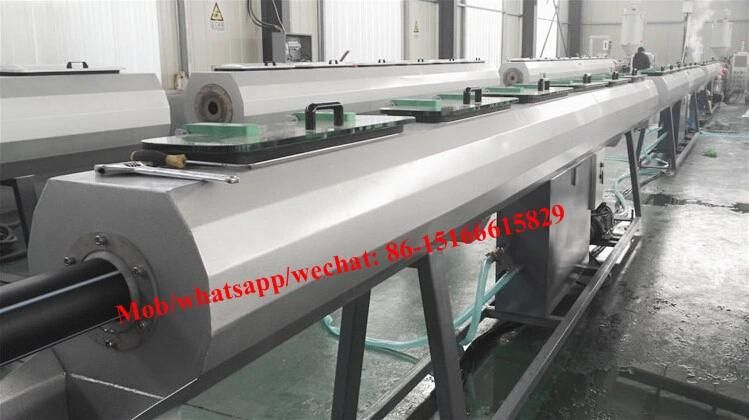

• vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.

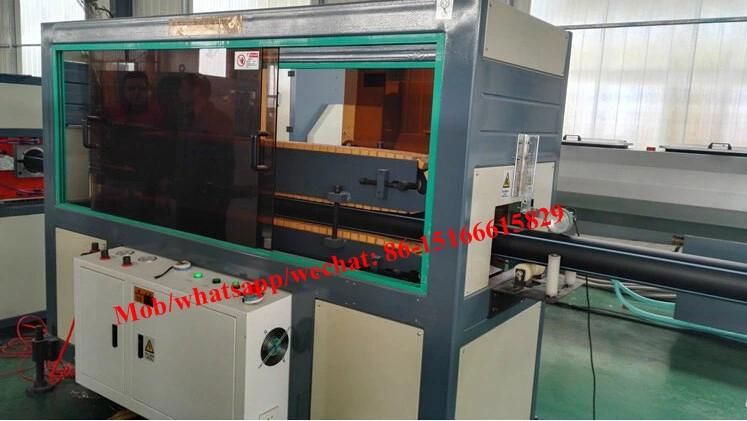

• haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.

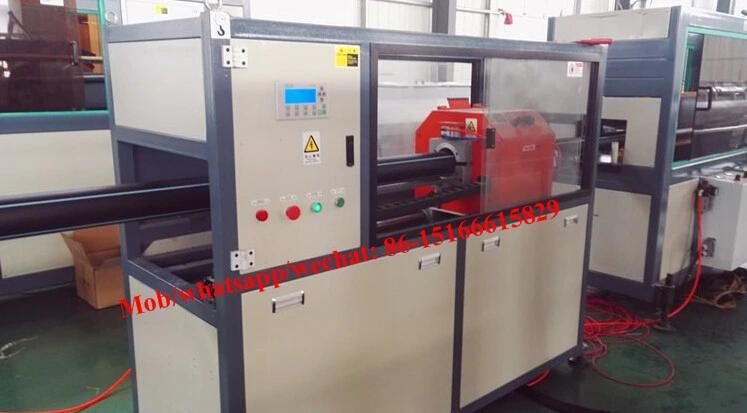

• cutting unit: saw cutting and planet saw cutting, with dust collection system.
• stacking unit: automatic overturning system, can freely fix the length of the pipe.
• controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling



  IV. MAIN APPLICATION:



• 1. Water supply and drainage pipelines in building;
• 2. Rainwater drainage pipelines in building;
• 3. Electrical wiring pipe in building;
• 4. Air conditioning condensate water systems.

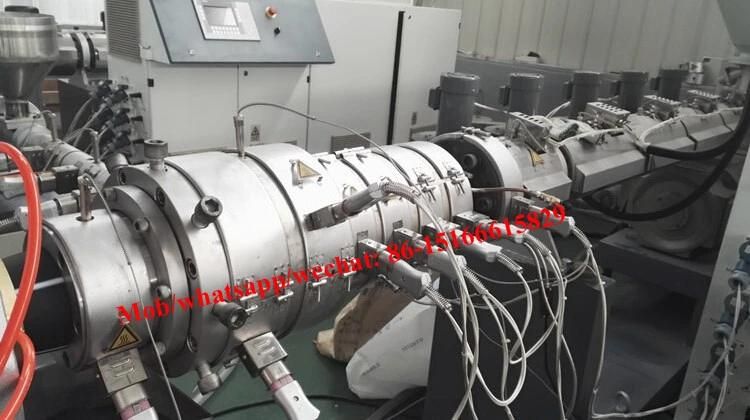

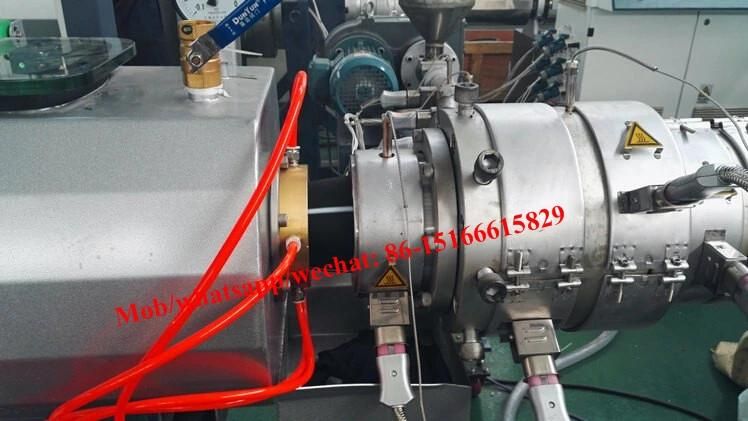

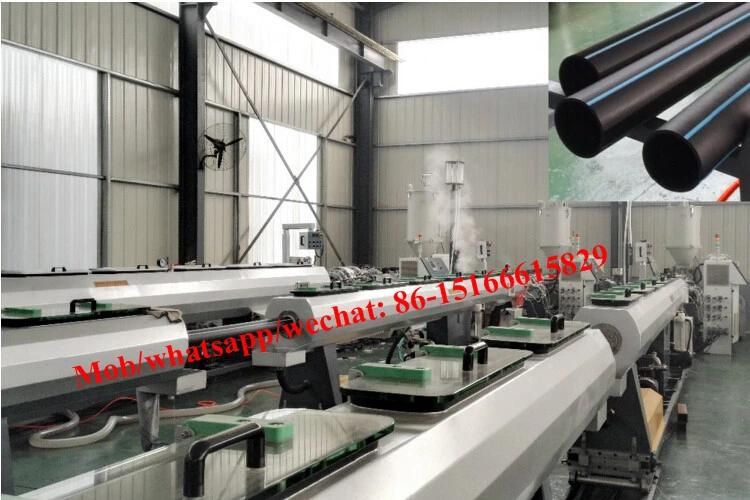

 V. MACHINE PICTURES:



V.  Our service of PE  PIPE Extrusion Line/  Extrusion Machine / Making Machine /Extruder





1.Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.



2.During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.



After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.



3. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
