• Model NO.：SJ55-75
• Computerized：Non-Computerized
• Machine Weight：1.9,3.0,4.0 T
• Certification：CE, ISO9001:2008
• Thickness of Film: 0.02-0.01mm：0.01-0.1mm
• Extrusion Output：35-75 Kg,H
• Screw L/D：28:1
• Transport Package：Wooden or as Required
• Specification：CE
• Trademark：YUNBANG
• Origin：China(Mainland)
• HS Code：8477309000

Basic Info.

Model NO. SJ55-75 Computerized Non-Computerized Machine Weight 1.9/3.0/4.0 T Certification CE, ISO9001:2008 Thickness of Film: 0.02-0.01mm 0.01-0.1mm Extrusion Output 35-75 Kg/H Screw L/D 28:1 Transport Package Wooden or as Required Specification CE Trademark YUNBANG Origin China(Mainland) HS Code 8477309000

Product Description

USE
Mainly pack audio-video tape, toy, disc, magazine, glass, advertising material, camera, painting brush, shoes, sweet food and soon.

Feature

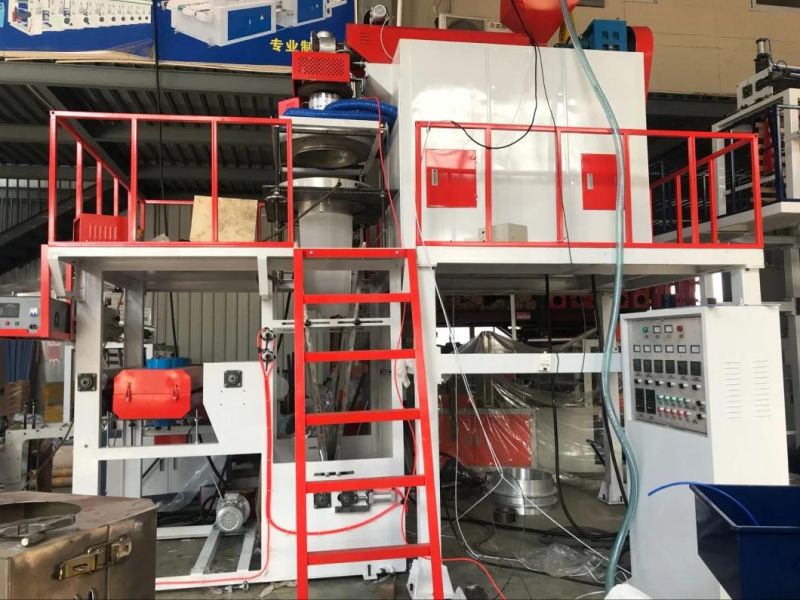

1. Composed by one squeezing machine, joint squeezing rotary die head, system of wind cooling and water cooling, double axial film, motor control system and etc. Parts.
2. Die head and cooling wind ring rotates continuously in order to ensure drawing in and rolling up of film is even and smooth.
3. (φ 100-200) change of die head, applying to blow film with different specifications.
4. Dispose various functional elements on the spot according to the selection of consumer.



Type	SJ-55	SJ-60	SJ-70
Diameter of Screw   mm	Φ55	Φ60	Φ70
Max.Layflat Width  mm	100-550	200-600	300-800
Film Thickness  mm	0.01-0.10	0.01-0.10	0.01-0.10
Max.Output(kg/h)	40	45	65
Screw L/D Ratio	28:1	28:1	28:1
Power of Main Motor(kw)	11	15	18.5
Power of Traction Motor(kw)	1.1	1.5	1.5
Overall Dimensions(L×W×H)mm	4500×1100×3300	4800×1100×3300	5000×1500×3300
Weight(T)	1.9	3.0	4.0
