• Model NO.：RCSJ RCDJ
• Computerized：Non-Computerized
• Certification：ISO9001:2008, CE
• Film：Pet Film
• Transport Package：by Film
• Specification：200kg,h-1000kg,h
• Trademark：RETECH
• Origin：China
• HS Code：8477800000
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. RCSJ RCDJ Computerized Non-Computerized Certification ISO9001:2008, CE Film Pet Film Transport Package by Film Specification 200kg/h-1000kg/h Trademark RETECH Origin China HS Code 8477800000 Production Capacity 100 Sets Per Year

Product Description

BOPP/BOPET PP PE Lamination Packaging Film Recycling Granulating Line

RETECH Machinery is specialize in design and manufacture of different kinds of plastic recycling machines. On the basis of the natures and shapes,we can handle different kinds of PP plastics.

Applications OF BOPP/BOPET PP PE Lamination Packaging Film Recycling Granulating Line:

PP non-woven fabric
PP woven bags
PP fiber
BOPP film/PET film

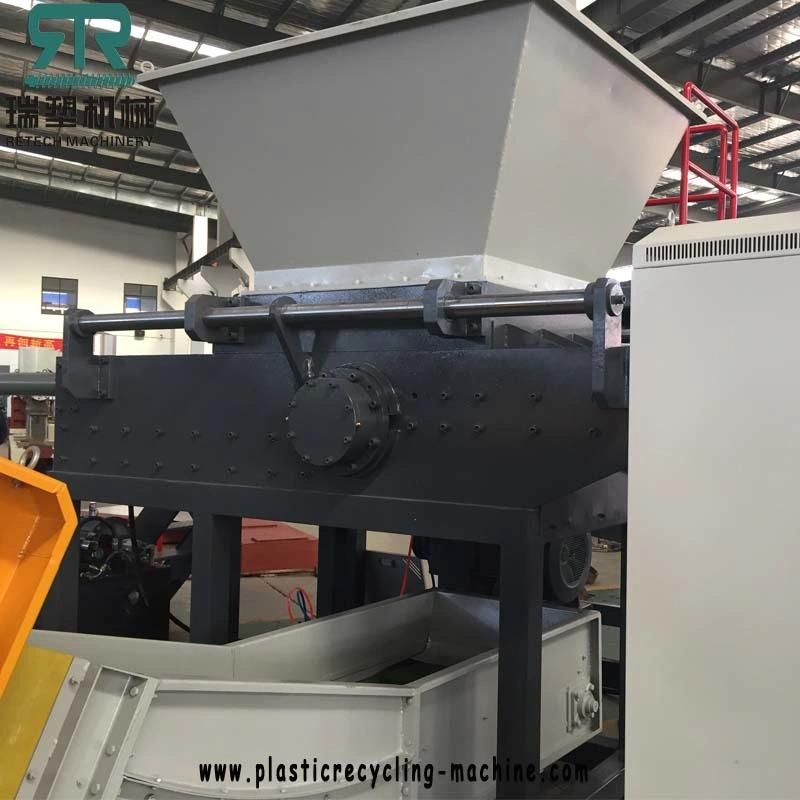

Shredder of BOPP/BOPET Lamination Packaging Film Recycling Granulating Line:

By unique design of rotor,the single shaft shredder is capable to cut the big PP bags or rolling PP into small flakes. Small cutted PP flakes is very average for feeding into extruder with stable and lower electric current.

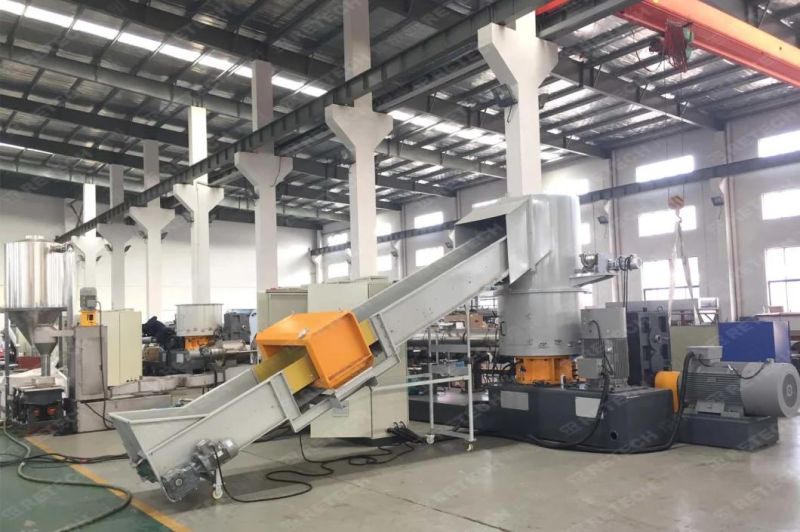

Compactor of BOPP/BOPET Lamination Packaging Film Recycling Granulating Line
The BOPET PP compactor is a key part for feeding capacity, pre-heating by friction and cut will dry and agglomeration the flakes into Semi-plasticing shape,it is more compact and easy feeding. Cooling by water around barrel of compactor can keep the temperature around 100°C.

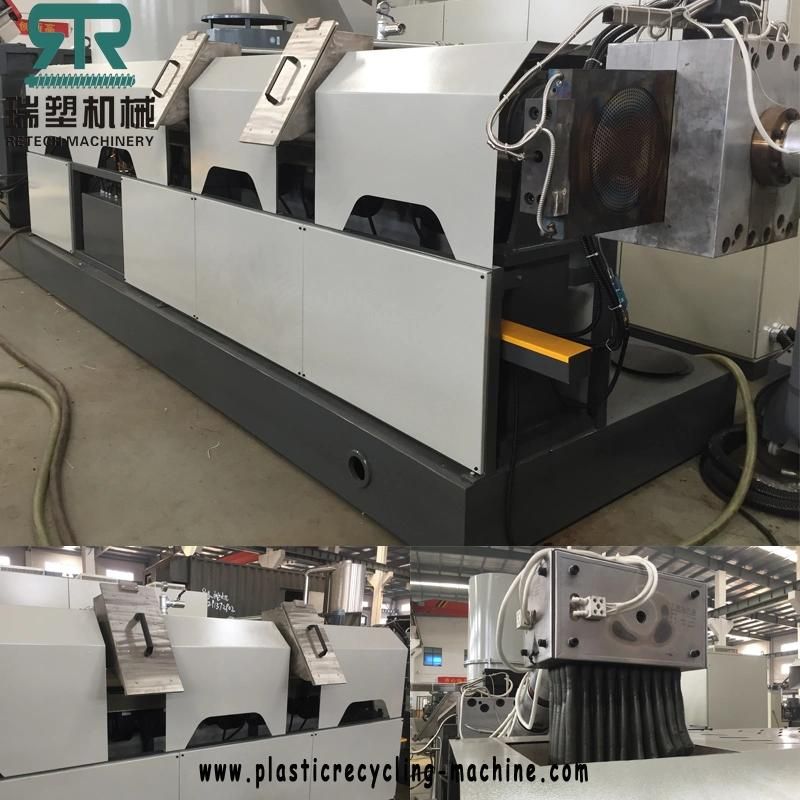

Main Extruder of BOPET Lamination Packaging Film Recycling Granulating Line
The screw and barrel structure is designed by natures of PP material. First, it will heating and melting the materials.There is a degassing vent in the middle of extruder. It is for degassing the useless cells and impurities.
In the end of screw, we prepare a pressure alarming system to inform the operators to changing nets timely. It is controlled by current system.

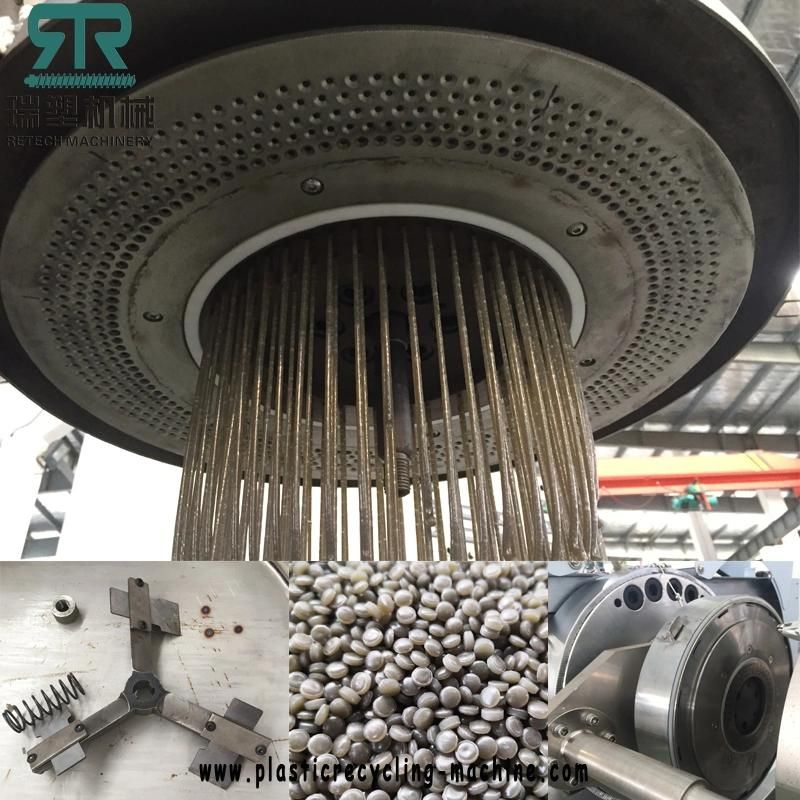

Die face cutting
Die face cutting is another important point of the whole line. Refined calculations by pressure and MFI can be assure for good looking granules.

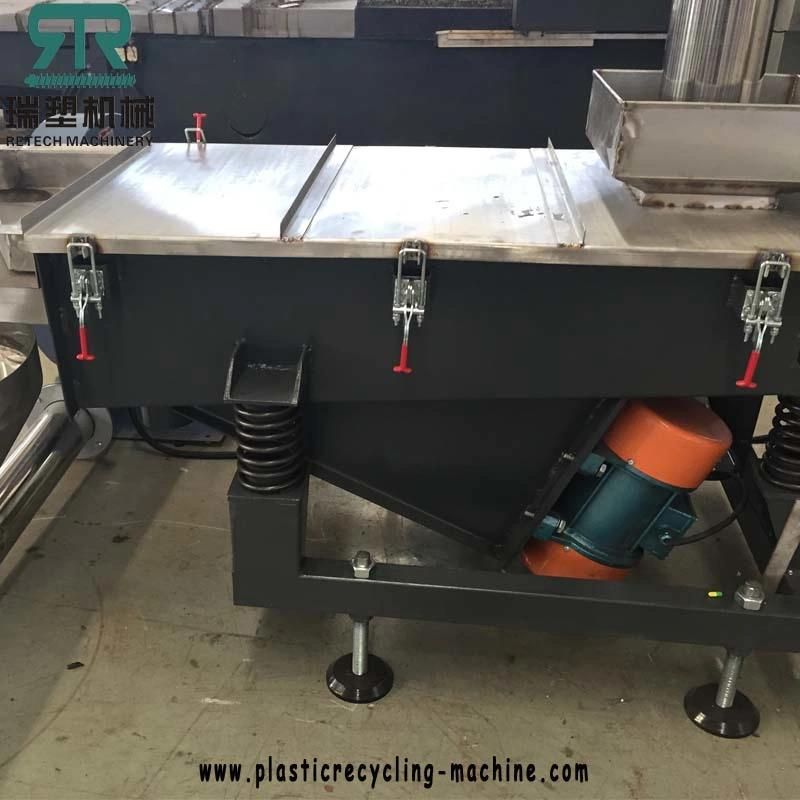

Dryer
Here we put centrifugal machines or vibrator machines as optional.Dried granules can be make piping or blowing directly.


Specifications:
Single stage Plastic BOPP/BOPET PP PE Lamination Packaging Film Recycling Granulating Line

Model	Screw Dia	L/D	Power	Capacity
RTDJ85	85mm	33:1	125kw	160kg/h-200kg/h
RTDJ100	100mm	33:1	180kw	220kg/h-300kg/h
RTDJ130	130mm	33:!	260kw	350kg/h-450kg/h
RTDJ160	160mm	30:1	350kw	550kg/h-650kg/h
RTDJ180	180mm	28:!	430kw	700jg/h-800kg/h

Double stage Plastic BOPP/BOPET PP PE Lamination Packaging Film Recycling Granulating Line

Model	Screw Dia	L/D	Power	Capacity
RTDJ85/100	85-100mm	33:1-12:1	155kw	160kg/h-200kg/h
RTDJ100/120	100-120mm	33:1-12:1	210kw	220kg/h-300kg/h
RTDJ130/150	130-150mm	33:1-12:1	320kw	350kg/h-450kg/h
RTDJ160/180	160-180mm	30:1-12:1	430kw	550kg/h-650kg/h
RTDJ180/200	180-200mm	28:1-12:1	620kw	700jg/h-800kg/h

About us:
Zhangjiagang Retech Machinery Co.,Ltd is focus on research and development of plastic recycling machines for more than 15 years history.We are a high-tech company with strong technical and professional service team.We have exported our machines to more than 60 countries and areas.

Main products:
Plastic washing machines
Plastic pelletizing machines
