Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line
Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line is designed and manufacturer by our factory Jaingsu Acemine machinery Co.,Ltd. The Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line can produce the Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line. The feares of this PE PP PVC Dual Pipe Production extruder is that thee are two lines for making the plastic pipe. So the producing capacity is big.


The Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line including below parts:
1    Spring feeder
2    SJZ65/132 twin-screw extruder
3    Mould for drain pipe

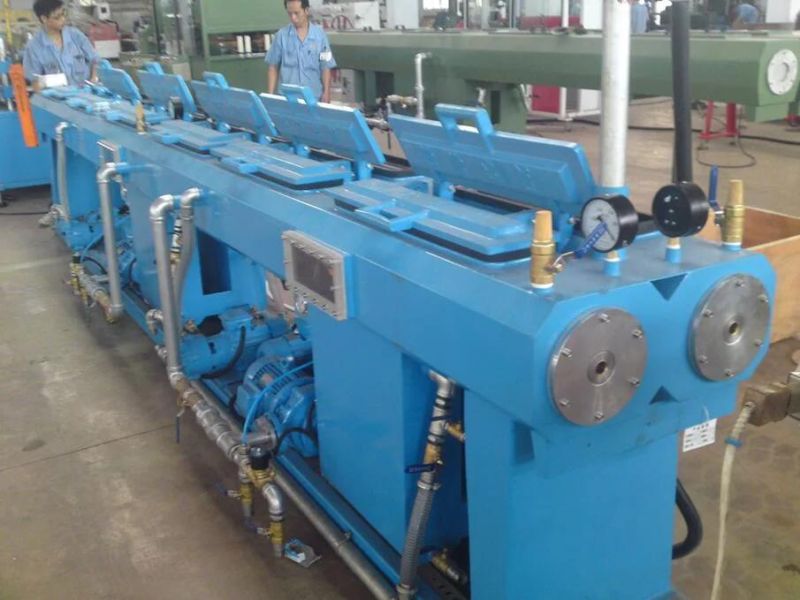

4    Vacuum Calibration tank
5    Haul-off and cutter
6    Stacker



Raw material & Final product, and Pipe species and size list: is as below:
Raw material & formulation    PVC resin powder & CaCo3, Lubricant; Stabilizers; Pigments; Antioxidants
Description final product    PVC pipe , Pipe Diameter: Ф20-40mm
Output capacity    Max:250kg/h ,   Max haul-off speed:12m/min

The working process of the PE PP PVC Dual Pipe Production extruder is as below:

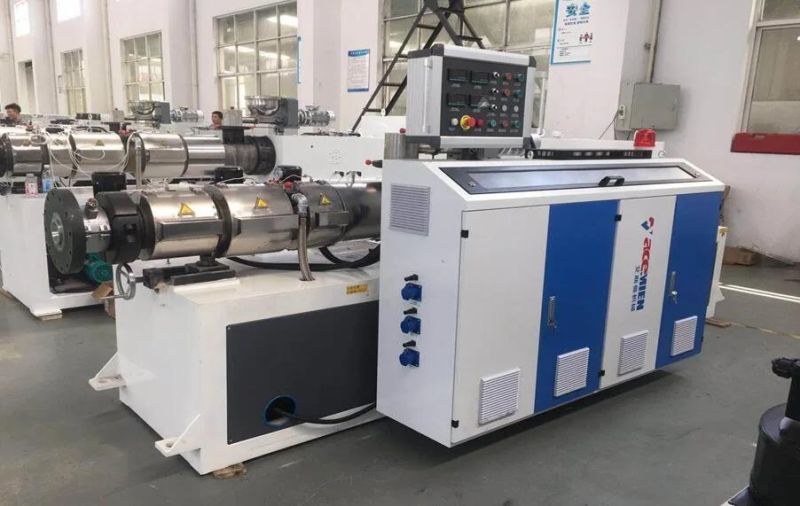

This is the SJZ65/132 conical twin-screw extruder of Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line:
Extrusion capacity     200-250kg/h
Screw    Diameter conical 65/ 132 mm
Material of screw: 38CrMoAlA
Surface treatment: Alloy and Nitriding processing, thickness: 0.4 ~ 0,7mm, Polishing
Rotating speed (counter rotating): 1-36.9RPM
Barrel    Diameter conical 65/132
Inner processing: Alloy and Nitrided with thickness: 0.4 ~ 0.7mm
Heating zones: 4
Heating mode: Cast Aluminum heater covered with stainless steel
Heating power: 20kw
Cooling mode: Blower 0.37Kw×3sets
Driving motor    Motor power: 37Kw AC   (SIEMENS)
Dosing feeding system    Motor:1.1Kw    Double screw forced feeding
Vacuum system
    Vacuum pump: 2.2Kw,1 set;
Vacuum degree = 0 ~ 0.075 Mpa
Adaptor
    Material: #40steel Chrome plated40, inner convergent flow type
Connection method with die: clamping block + bolt
Pressure melt sensor and thermocouple
Main electric cabinet
    Inverter: ABB; Contactor : Schneider; Air Switch :LS;
Relay: Omron; Temperature controller: Omron
Self-protective system
    Over current protective of motor
Over pressure protective of screw
Outer size and weight     3800×1500×2410mm    2200kg



This is the die mould of the Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line.
specifications is as below parts:
Include calibration sleeve
Mould type: dual
Material: Made by 40Cr ; Inner surface polished
Diameter spec: Ф20, 25, 32, 40
Wall thickness: Providing by customer
Remark: According to customer requirements, it is possible to provide water supply pipe.



Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line is as below:
Dimensions: Length: 5600mm ; Two chambers
Vacuum pump: 1.5Kw x 2 units
Water pump: 3Kw x2units
Three direction adjustment:
Forward and Backward moving:0.75 KW motor
Range: ±1000mm
Up and down: left and right manually adjusted
Range: Up and Down: ±150mm
Leftward and rightward moving: ±50mm
Tank material: STAINLESS STEEL
Electric cabinet: With water temperature control system



Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line Haul off and cutting  unit  (chain wheel driving)
HAUL-OFF (for Dual pipe):
Haul off unit (2 belts) for dual pipe
Effective haul-off length: 1100mm
Claw width: 80mm
Maximum hauling speed: 12m/min
Main motor: 2 units AC motor, controlled by inverted Hitachi or Schneider Each 3 KW
Speed control: independent for each haul off.
CUTTER (for Dual pipe):
Integration installed in monobloc system (haul-off and cutting).
Length count: coder
Cutting saw: steel alloy, specific for cutting U-PVC pipe.
Equipped with rubber clamping block for accurate cutting.
Motor power: 1.1Kw X 2 pieces
Equipped with a closed dust-collector
With scrap collecting device
Possibility of manual operation



Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line Stacker.
Pneumatic discharging
Length: 5000mm
Up and down: ±90mm


We also offer some spars parts for the Solid-wall Pipe Extrusion Machine twin pipe extrusion machine line.
below is the list for your reference:
No.    Name    Qty.    Used for
1    Big spanner    1 set    Extruder
2    Oil seal of high-speed axis of gearbox     1 piece
3    Nylon pin for axial connector    1 piece
4    Thermocouple    3 sets
5    Rubber block      15 pieces    Haul-off
6    Electromagnetic valve    2 pieces
7    T air linker    5 pieces
8    Sealing bar     10m    Vacuum tank and spray cooling tank
9    Sprayer    15 sets
10    Small contactor     2    Electrical cabinet
11    Button and switch     2
12    Relay     2


Also below is some information of the businees iterms for your reference:
4.1 Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
4.2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
b. ACEMIEN will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer's factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD60 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer's factory.
e. If buyer doesn't request installation and commissioning by Seller's engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
4.3. Quantity and quality guarantee
a. Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Insurance company and shipping company will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b. Guarantee period and after-sales services: 12 months since date of bill of lading
During this guarantee period, ACEMIEN will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, ACEMIEN will provide the buyer spare parts at cost price.
c. Long-term service:
ACEMIEN will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
4.4. Validity: Three months since quotation date.
