Flat to Slope ASA PVC UPVC Compound Roof Tile Sheet Forming Machine Production Line
Jiangsu Acemien Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：Multiple Feed
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：ACE-004
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Bearing Type：Special Design(Long Service Life)
- Certificate：Ce; ISO9001
- Transport Package：Wooden Case and Film
- Specification：25X3X3.5m
- Trademark：ACEMIEN
- Origin：China
- HS Code：8477800000
- Production Capacity：500 Sets,Year
Description
1.5mm,2mm,2.5mm,3mm(adjustable)Profit Product cost USD 1.7-USD 3/ square meter Normally in market sell at USD 2.7-5 / square meter even more
Feature of PVC roof tile:
Work condition (Provide by customer):
Energy consumption
Machine list detail:
Jiangsu Acemien Machinery Co., Ltd, is located at No.2,Changhong Road, Modern Agriculture
Demonstration Park, Zhangjiagang City, China. Factory area is more than 10000 square meters.
We are sincerely providing the following Plastic extrusion machinery: PVC roof tile machine, PVC
corrugated tile production line, PVC hollow tile machine, PVC wall panel machine, PVC flooring tile
machine, PVC door panel machine, PVC foam board machine, PVC marble sheet machine, PVC
decoration profile machine, PE/PPR/PVC plastic pipe machine, Auxiliary equipment such as plastic
mixer / plastic crusher / plastic pulverizer.Plastic recycling machine;Plastic extrusion line etc.
"Focus on quality, sincerity service, sincere cooperation, and mutual development" is the ultimate
goal of Acemien machinery.
Choose Acemien machinery is to choose the success, looking forward to the cooperation with you.
Expect for your inquiry.
With Regards!
Sherry

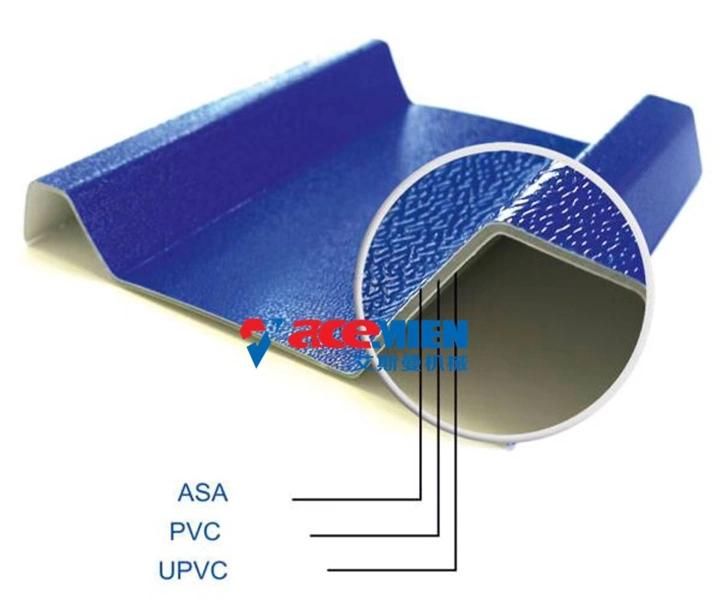

Feature of PVC roof tile:
| Enduring colorful | high weatherability engineering resin as the surface material of the tile. In in the natural environment, product possesses exceptional durability, under exposing to ultraviolet light, moisture, high and low temperature conditions, 28 years of the stability of color can be promised. Δ E ≤5 |
| Thermal and sound insulation | coefficient of thermal conductivity is 0.293 w/m.k, about a third of clay tile, one fifth of 10 mm thick cement, one over two thousand of the color 0.5 mm steel. Phoneme determined through experiments show that, under heavy rain, hail, gale, such as the weather, PVC roof tile still can absorb well |
| Waterproof | select high weatherability resin, density and no water absorption, no water seepage problems of micro porous, big size area, less roof seam, contact closely. Thus it has excellent waterproof performance, can save the waterproof layer. |
| Fireproof | PVC roof tile's main body material is PVC resin. Its chemical properties of materials determines its flame retardant properties, fire prevention performance achieve B1 level. |
| Light weight | belongs to the light structure material, can effectively reduce the load of the building, enhance security, and at the same time it can save construction main body material, convenient carrying, lifting, reduce construction cost. |
| Insulation | PVC roof tile is non-conductive and intact when accidental discharge. |
| Volume stability | Expansion coefficient of PVC roof tile is 4.93 x 10-5 (1/5 ºC), it possesses low expansion and the bidirectional tensile properties, even the temperature change is very huge, it also can ensure thethe same geometric size. |
| Impact resistance | Another basic characteristic of impact resistance is not easy be broken by the natural force, because of adopt high weather resistance resin with high impact resistance. The fall test shows that no crack by 1 kg of steel ball fall free from 3 m high, no broken with10 shock performance under low temperature. |
| Self-cleaning | PVC roof tile is not easy absorb dust itself. It looks clean as new after the rains washed out, no fouling washed. |
| Corrosion-resistant | PVC roof tile can resist acid and alkali, salt and other chemical corrosion. No chemical reaction under the experiment for alkali, salt, and less than sixty percent of the various kinds of acid for 24 hours . |
| Environmental protection and energy saving | PVC roof tile achieve assessment by development science and technology center of national ministry of construction department. Product environmental protection, energy saving and renewable use, is popularized to support new product "environmental protection, energy saving" at present. |
Work condition (Provide by customer):
| Warehouse/Workshop | Machine Dimension (M*M*M): 25(L)×5(W) ×3.5 (H) Crane: Machine positioning |
| Temperature & Humidity | ≤40ºC, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this production line; |
| Cooling Water pool size | 8-12m³ |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | necessary (7.5kw) |
Energy consumption
| Installation power | Total 284.75KW,Actual consumption about 70% Suggested 200KVA transformer,Needing at least 150KVA transformer |
| Cooling Water | ≤20ºC, ≥0.3Mpa, ~5-6tons/hr |
| Compressed air | 0.3m3/min, >0.6Mpa |
| Manpower | 3 Persons/shift |
Machine list detail:
| No. | Main machine name | Qty. |
| 1 | Screw loader | 1set |
| 2 | SJZ80/156 conical twin-screw extruder | 1set |
| 3 | Vacuum loader and drying hopper | 1set |
| 4 | SJ50/30 single screw extruder | 1set |
| 5 | Extrusion mould and distributor | 1set |
| 6 | Roof tile forming machine with trimming device | 1set |
| 7 | Haul off unit | 1set |
| 8 | Cutter | 1set |
| 9 | Stacker | 1set |
| 10 | Ridge tile Oven | 1set |
| 11 | Ridge tile Forming machine | 1set/4sets |
| No. | Auxiliary machine name | Qty. |
| 12 | Screw loader | 1set |
| 13 | Mixer unit | 1set |
| 14 | Crusher | 1set |
| 15 | Pulverizer | 1set |
