• Transport Package：Plywood Box
• Specification：2500*1500*2500mm
• Trademark：ZCE
• Origin：China
• HS Code：8477800000
• Production Capacity：50,Month

Basic Info.

Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

ZCE specialized in doing Polyurethane foam machine, Pu roller making machine, Polyurethane wheel and castor making machine, Polyurethane elastomer machine, MDI/TDI/NDI Polyurethane machine, Polyurethane injection machine, Polyurethane two components pouring machine,Three components polyurethane pouring machine, Polyurethane casting machine, PU machine, Polyurethane roll machine, Resin Casting Machine.

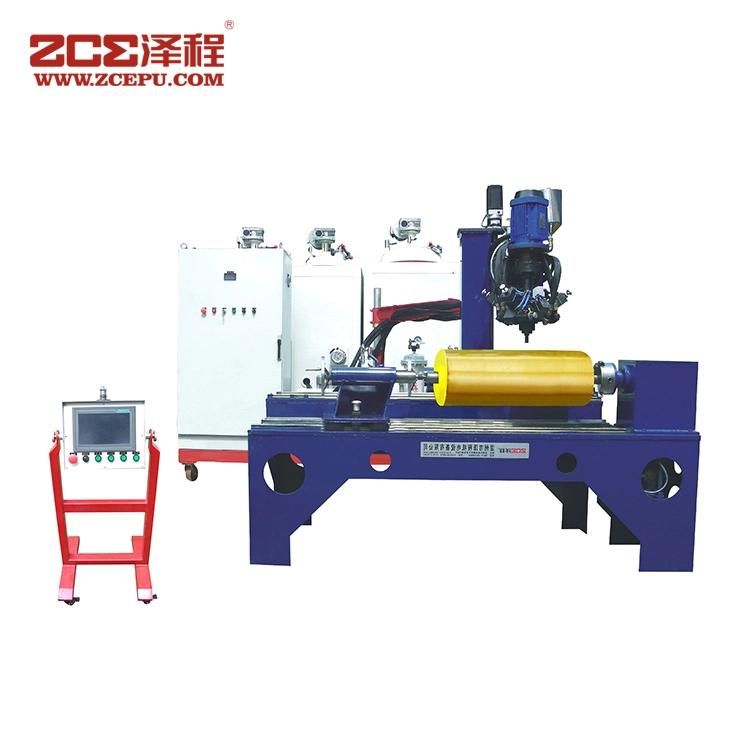

Product Photo

Parameters and Applications

Parameters:

ITEM/MODEL	CPU30J-XZ
(A:B:C) Mixing Ratio	100;12-65;6-23
Total Discharge Amount(g/min)	1000-5000
Treaveling Speed of Pouring Head (mm/min)	20-300
Rotary Speed of Rubber Roller(r/min)	15-120
Single Layer Pouring Thickness of Rubber Roller (mm/time)	1-15
Diameter Range of Pouring Rubber Roller (mm)	100-2000mm
Length Range of Pouring Rubber Roller (mm)	100-6000
Linear Velocity of Rubber Roller Surface Rotation (mm/s)	10-60
Total Power (KW)	28

Applications: Apply to the fllowing energy application fields: used for all kinds of rubber roller, high load solid core wheel, mine sleve plate. hydraulic seal ring, photovoltaic guide pulley and other highly wear-resistant materials in metallurgy, printing and dyeing, textile, mining and paper industry.

Features
1. Rubber roller of a variety of specifications and sizes can be produced without moulds, which saves investment;
2. Demoulding is not required, which reduces labor intensity. avoids the possibility of contamination of the roll core and improves the fficiency of production;
3. Can be solidifiled at room temperature, and the soldification cycle is short. It can reduce energy consumption, and improve labor efficiency;
4. Multilayer complex rubber rollers of difterent rubber pertormance can be produced; the product percent of pass is quite high.
5. Independently control the temperature of all piping systems and mixing systems; the German high- precision flow meter monitors the casting amount and independently controls circulation pressure inside the tubes of each component.
6. The raw material tank adopts the hot air circulation of electric heating (patented technology), which makes heating taster, efficient, energy saving, sate and environmental friendly. (Patent: 201 ,220,219,860.0)
7. The device has functions of automatic detection of pressure, temperature, flow, open and closed loop etc; it will automatially determine when there' s abnormity, diagnose, give alarm and display abnormal factors in words.
