Semi Auto PET Blow Moulding machine, Plastic Bottle Banane Ki Machine, Plastic Bottle ...
Guangzhou JASU Precision Machinery Co., LTD.- Warranty：1 Year
- Type：Injection Blow Molding Machine
- Raw Material：Pet, PC, Pctg, Tritan, PETG, PP, PS, San etc.
- Making Method of Parison：Injection Blowing
- Automation：Automatic
- Computerized：Computerized
Base Info
- Certification：CE, ISO9001:2008, BV, SGS, Ukas, Laf
- After-sales Service：1 Year
- Key Selling Points：High Efficient, Stable, Unique Modular Design
- Company Type：Manufacturer, Direct Factory
- Circle Time：10-12 Seconds
- Working Mode：One Step, One Stage, Single Stage
- OEM/ODM Available：Yes
- Power Requirement：as Per Requests
- Dimension (L*W*H)：4200*1750*3400 mm 4500*1950*3400 mm
- Customer Design：Yes
- Transport Package：Wooden Case
- Specification：1-12 cavity for option
- Trademark：JASU
- Origin：China
- HS Code：8477401000
- Production Capacity：120 Sets,Month
Description
Overview
Product DescriptionItem Unit Machine Type ISB 800N-3 ISB 800AN-3 ISB 1100N-3 ISB 1100AN-3 ISB 1100AN-100T-3 Injection Part Screw Diameter mm 40 50 40 50 50 Screw L/D Ratio L/D 20.5:1 20.5:1 20.5:1 20.5:1 24:1 Screw Speed r/min 0-190 0-150 0-190 0-150 0-150 Theoretical Injection Capacity cm3 238 481 238 481 481 Injection Pressure MPa 174 176 174 176 176 Max. Hydraulic Pressure Kg/cm 140 140 140 140 140 The Actual Injection Quantity g(ps) 225 452 225 452 452 Oz 8 16 8 16 16 Screw Stroke mm 190 245 190 245 245 Clamping Part Blow Clamping Force KN 80 80 150 150 150 Clamp Tonnage KN 400 400 600 600 1000 Wheel Diameter mm 800 800 1100 1100 1100 Max. Height PP, PET, PETG, Tritan, PS, PC mm 200 200 200 200 200 PC, PETG, Tritan, PS 220 220 220 220 220 Open Vertical Mode Trip mm 570 570 570 570 600 Others Max. Pump Pressure MPa 16 16 16 16 16 Servo Motor Kw 22 22 22 22 22 Molde Opening & Molde Locking
(Double Pump) Kw 22 22 22 22 22 Electric Power Kw 8.9 12.2 8.9 12.2 12.2 Tank Volume L 420 420 420 420 420 Dimension of Machine m 4.2*1.75*3.4 4.2*1.75*3.4 4.5*1.95*3.4 4.5*1.95*3.4 4.5*1.95*3.4 Machine Weight T 5.5 6 8.5 9 9.5 --Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.
1. Our Advantages
Product Parameters
(Double Pump)
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.
Processing of ISBM Machine

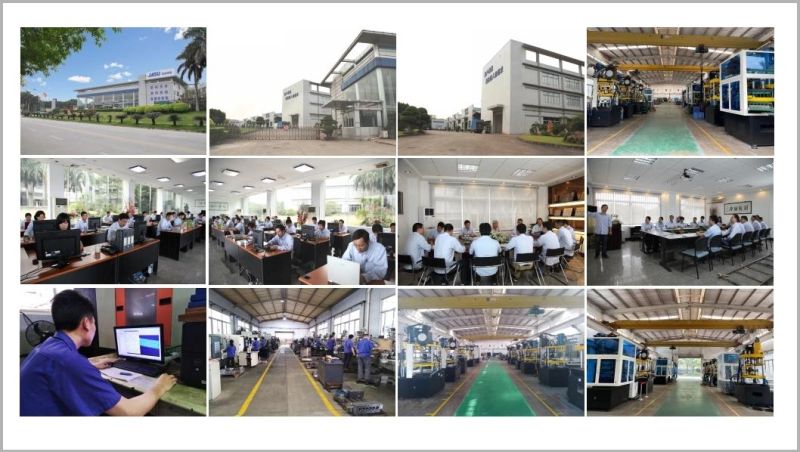

Company Profile
FAQ Q1Contact us to share more videos and details.
