Disk Screener for Recycling Production Line
Zhejiang Boretech Environmental Engineering Co., Ltd.- Capacity：3000kg,H
- Power：3kw
- Dimensions：2814*1977*2513mm
- Vibration Frequency：400times,Min
- Shaft Quantity：11PCS
- Transport Package：Wooden Case,Film,Regular Seaworthy Packing,Ect.
Base Info
- Specification：2814*1977*2513mm
- Model NO.：TTS1223
- Trademark：BORETECH
- Origin：China
- HS Code：8479820090
- Production Capacity：3-4 Sets Per Quarter Based on Orders in Store
Description
Basic Info.
Model NO. TTS1223 Specification 2814*1977*2513mm Trademark BORETECH Origin China HS Code 8479820090 Production Capacity 3-4 Sets Per Quarter Based on Orders in StoreProduct Description
Disk Screener for PET Bottle Recycling System
Sieving machine is used to separete solid waste such as sand, metal, small stone, labels in PET bottle recycling process. It helps the PET bottle washing by reducing equipment abrasion, material loss to enhance productivity. Flakes sieving improve the quality of final PET flakes.
BoReTech supplys two types of sieving machines, dry trommel and disk screener. Disk screener is more compact than the dry trommel, it can be placed after de-baling and pre-washing then remove sand, labels and so on. It can evenly disperse the bottles onto the next process and remove remained water. Dry trommel can remove caps and sands separately by multiple mesh sizes.
| Model | Capacity (kg/h) | Power (kW) | Vibration Frequency (times/min) | Shaft Quantity (Pcs) | Demensions (mm) |
| TTS1223 | 3000 | 3 | 400 | 11 | 2814*1977*2513 |
| TTS2732 | 6000 | 5.5 | 400 | 15 | 3722*3377*2902 |
Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing

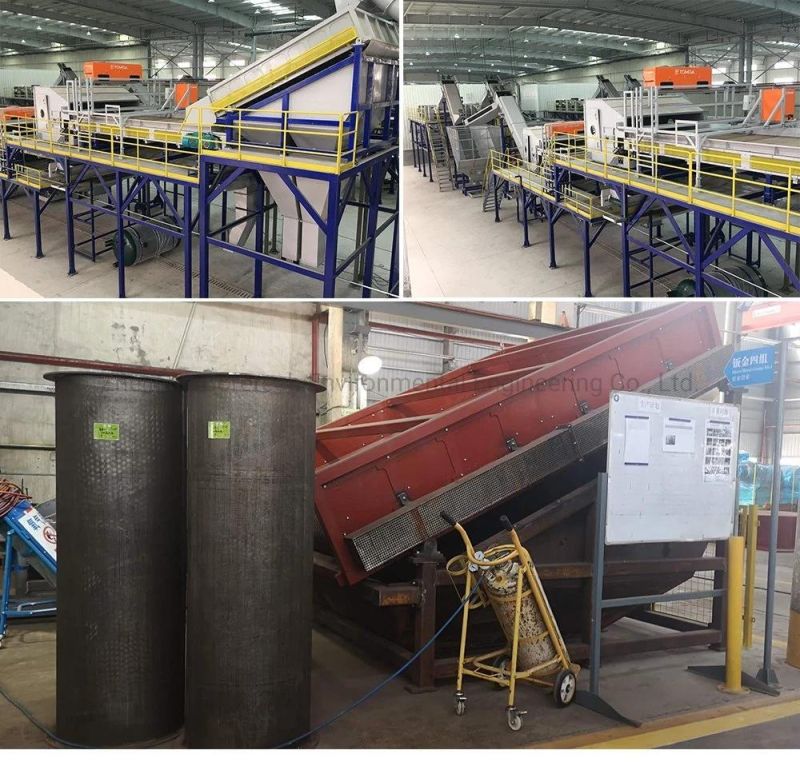

Sieving Section
Sieving unit including dry trommel, disk screener and metal removal device to separate some big impurities such as mud, sands and metals from PET bottles and flakes. Meanwhile, through digital technology likes metal detector, pipe-type metal separator, metals can be separated automatically by flapping device to reduce inline manpower. Besides, belt-type metal separator can reach the same function.
