Three Layer Co-Extrusion Rotary Die Head Film Blowing machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：Three-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：45,55,45

Base Info

  • Model NO.：F3B-RD-800
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：12000kg
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：90kg,H
  • Thickness of Film：0.02-0.10mm
  • Transport Package：Wooden Package
  • Specification：7200*5000*7200mm
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：5 Sets,One Month

Description

MODLEF3B-RD-800F3B-RD-1000F3B-RD-1200F3B-RD-1500Suitable materialLDPE LLDPE   mLLDPE HDPELayfat width of film(mm)800100012001500Thickness of film(mm)0.02-0.10Max.extrusion output90kg/h100kg/h120kg/h150kg/hScrew dia(mm)Φ45/Φ45/Φ45Φ45/Φ50/Φ45Φ50/Φ55/Φ50Φ55/Φ60Φ55Screw L/D30:1Screw rotation10-100r/minMain motor(kw)11/11/1111/15/1115/18.5/1518.5/22/18.5Dia of orifice(mm)Φ200Φ250Φ300Φ350Rir ring structure formDouble air vent air ringRotary traction form  360°continuous rotationTotal power(kw)708090105Weight (T)44.55.56.5Dimension LxWxH(M)6.4x4x4.86.6x4.1x56.8x4.3x67x4.8x6.8     MODLEF3B-RD-1700F3B-RD-2000F3B-RD-2500F3B-RD-3000Suitable materialLDPE LLDPE   HDPELayfat width of film(mm)1700200025003000Thickness of film(mm)0.03-0.10Max.extrusion output150kg/h180kg/h210kg/h240kg/hScrew dia(mm)Φ55/Φ60Φ55Φ60/Φ65/Φ60Φ65/Φ70/Φ65Φ75/Φ80Φ75Screw L/D30:1Screw rotation10-100r/minMain motor(kw)18.5/22/18.522/30/2230/37/3037/45/37Dia of orifice(mm)Φ420Φ500Φ600Φ700Rir ring structure formDouble air vent air ringRotary traction form   360°Total power(kw)110140160190Weight (T)791113Dimension LxWxH(M)7.2x5x7.27.8x5.3x8.68.6x6.2x9.69.6x7.2x11

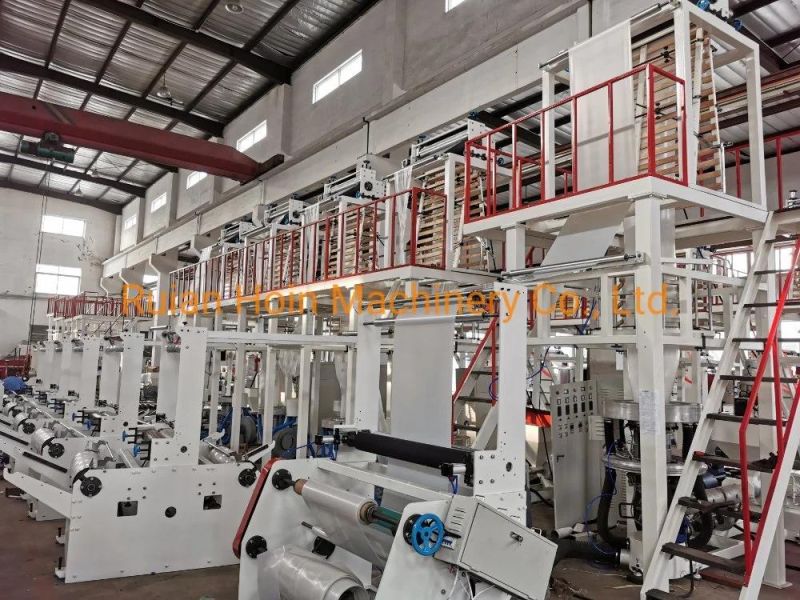

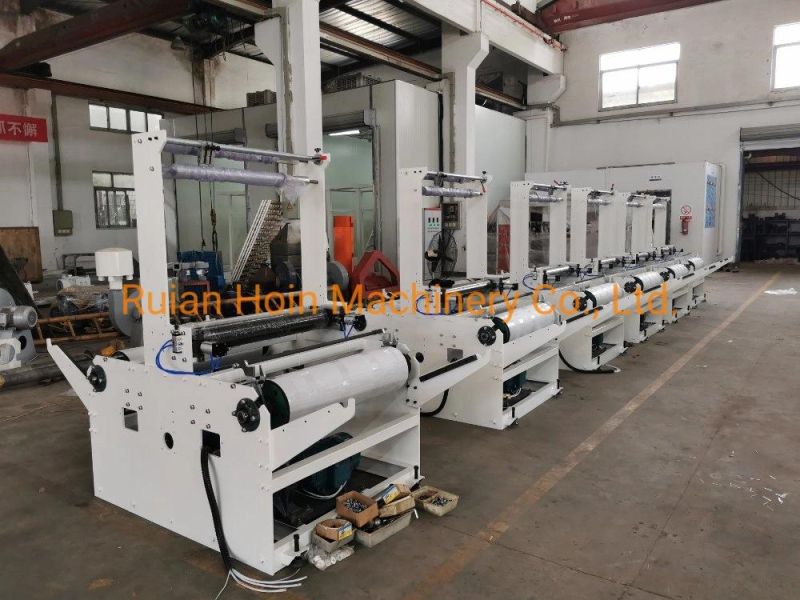

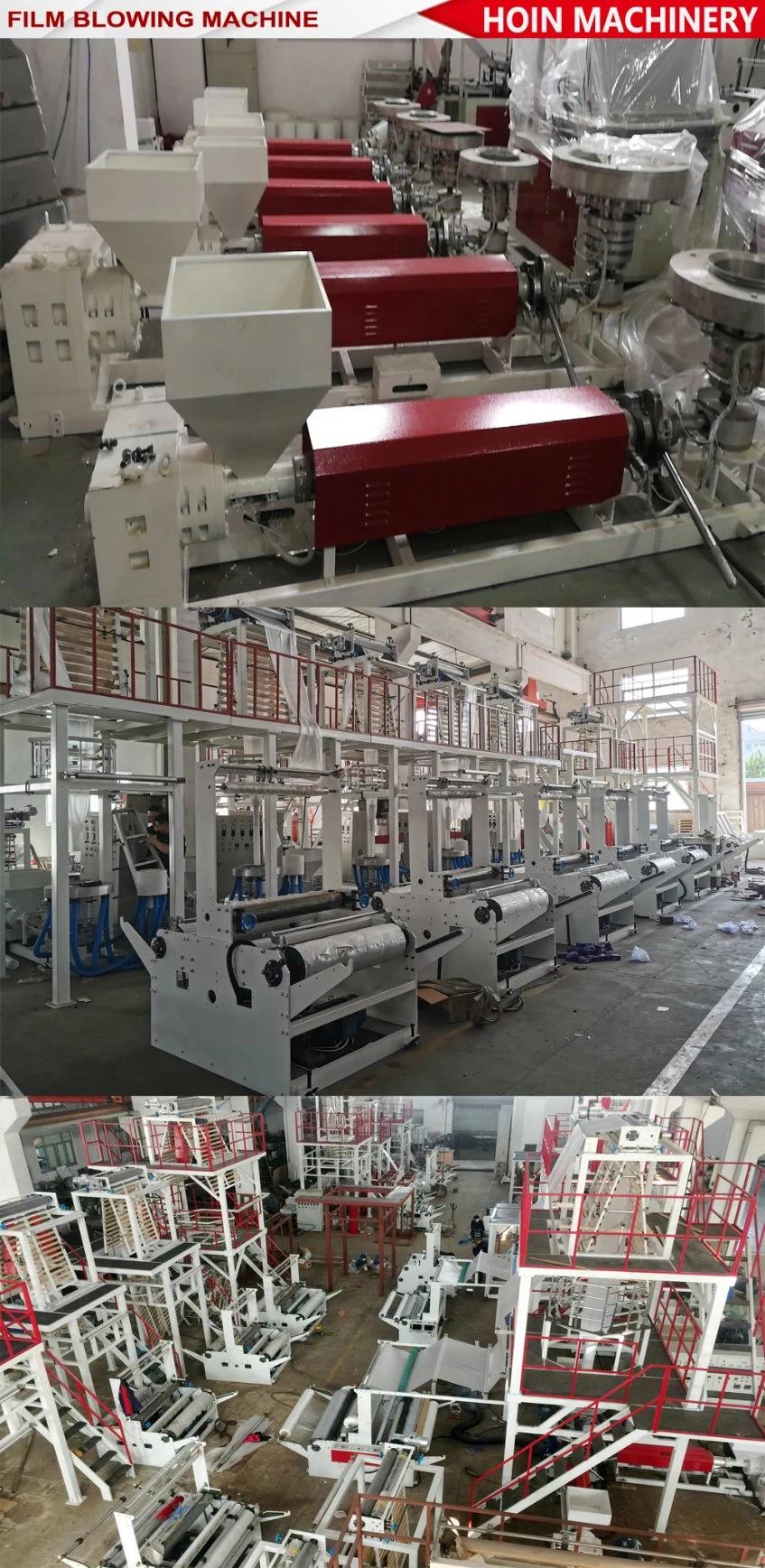

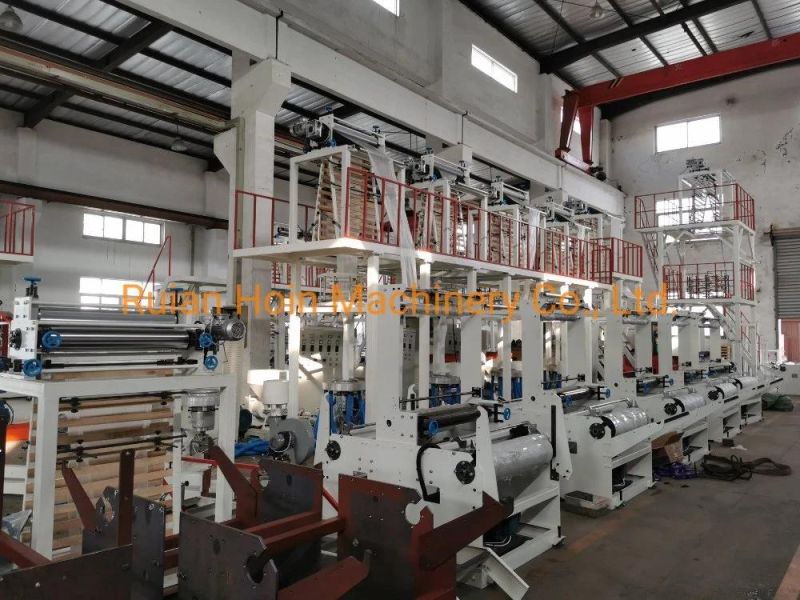

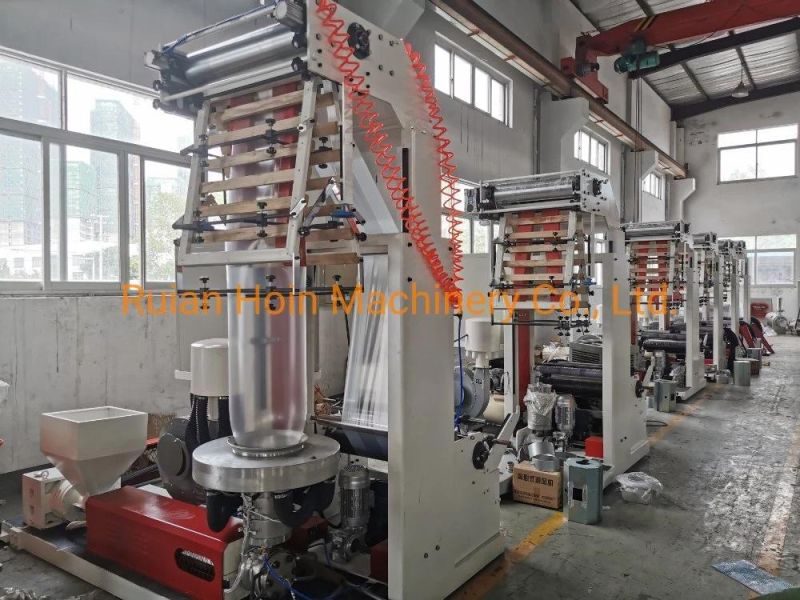

Machine Pictures for Reference:
Three Layer Co-Extrusion Rotary Die Head Film Blowing machineThree Layer Co-Extrusion Rotary Die Head Film Blowing machine

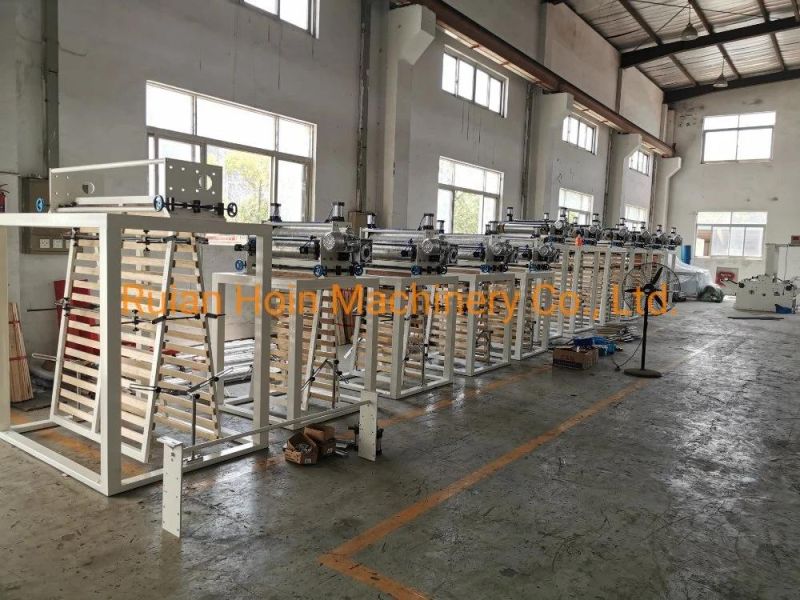

Three Layer Co-Extrusion Rotary Die Head Film Blowing machineThree Layer Co-Extrusion Rotary Die Head Film Blowing machineThree Layer Co-Extrusion Rotary Die Head Film Blowing machineThree Layer Co-Extrusion Rotary Die Head Film Blowing machineWorkshop of HOIN
Agricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineMore Products Optional:
Agricultural Mulch Film Blowing MachineAfter service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
