• Model NO.：F3B-TR-1300
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：12000kg
• Certification：CE, ISO9001:2008
• Suitable Material：LDPE,HDPE,LLDPE
• Output：140kg,H
• Thickness of Film：0.02-0.20mm
• Transport Package：Wooden Package
• Specification：9500*5000*9000mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：5 Sets,One Month

Main Technical VariablesModelF3B-TR-1000F3B-TR-1200F3B-TR -1500F3B-TR -2100F3B-TR -2300Screw diameter(mm)Φ45mmΦ50mmΦ55mmΦ65mmΦ75mmScrew L/D RatioL/D30:1L/D30:1L/D30:1L/D30:1L/D30:1Screw rotation15-150r/min15-150r/min15-150r/min15-120r/min15-120r/minCooling-mode of bubble film Double Air Vent Air RingApplicable materialsMLLDPE,LLDPE,LDPE,EVAPower of main motor11kw×315kw×318.5kw×330kw×337kw×3Max.Extrude Output110kg/h125kg/h150kg/h200kg/h260kg/hMatrix specificationΦ250mmΦ300mmΦ350mmΦ500mmΦ600mmSingle-face Thickess of film0.02-0.20mm0.02-0.20mm0.02-0.20mm0.03-0.15mm0.03-0.15mmMax Film Folding Dia.1000mm1200mm1500mm2000mm2200mmElectric capacity78kw90kw105kw150kw180kwMachine of weightabout 8600kgabout 10200kgabout 12000kgabout 14000kgabout 16000kgOverall Dimension(L×W×H)8800×4600×8000mm9000×4800×8500mm9700×5000×9000mm10300×5500×11000mm11000×5700×12000mm

Design and specifications are subject to change without notice.

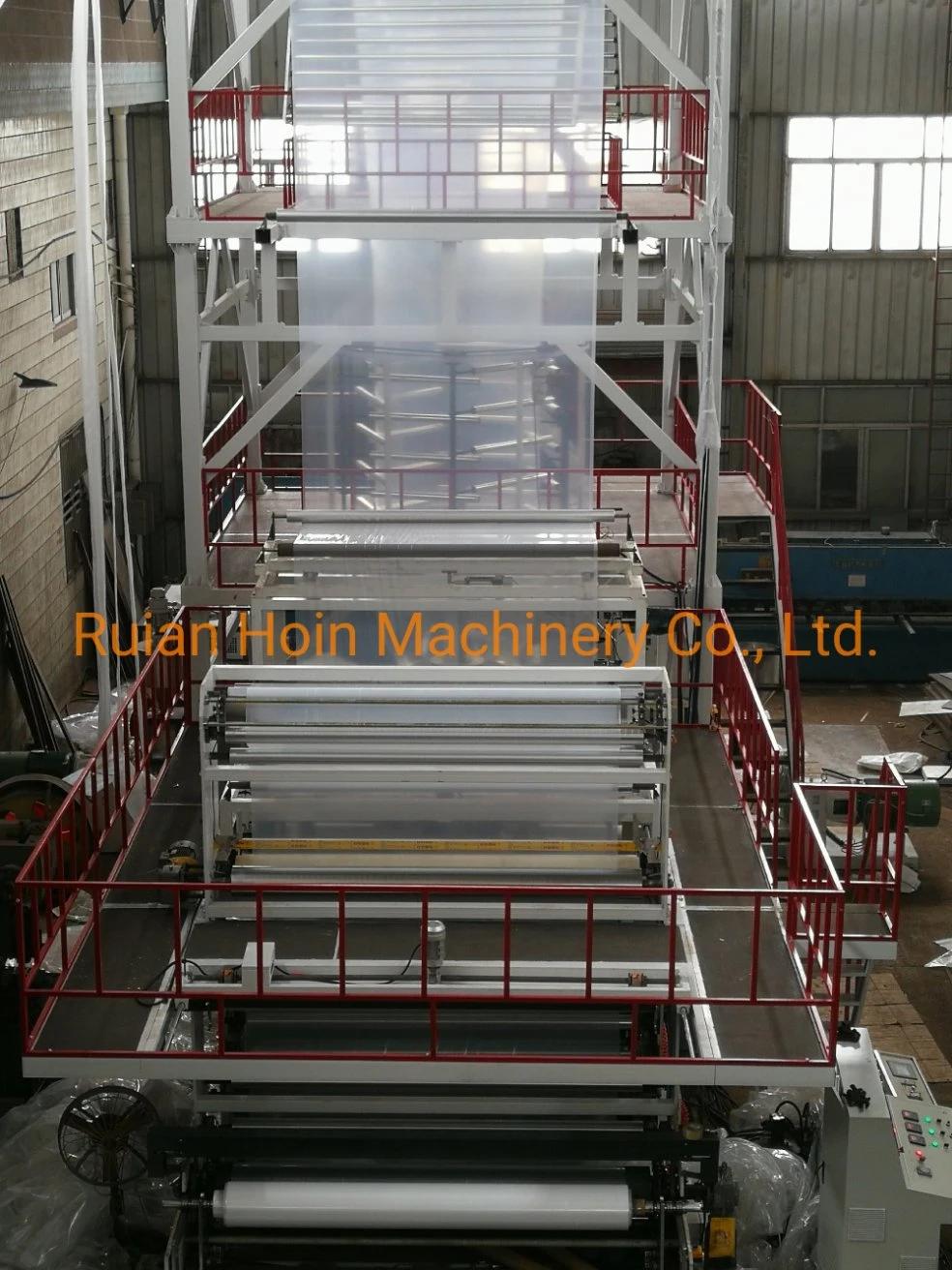

C. Machine Pictures for Reference:
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller
Automatic System: optional

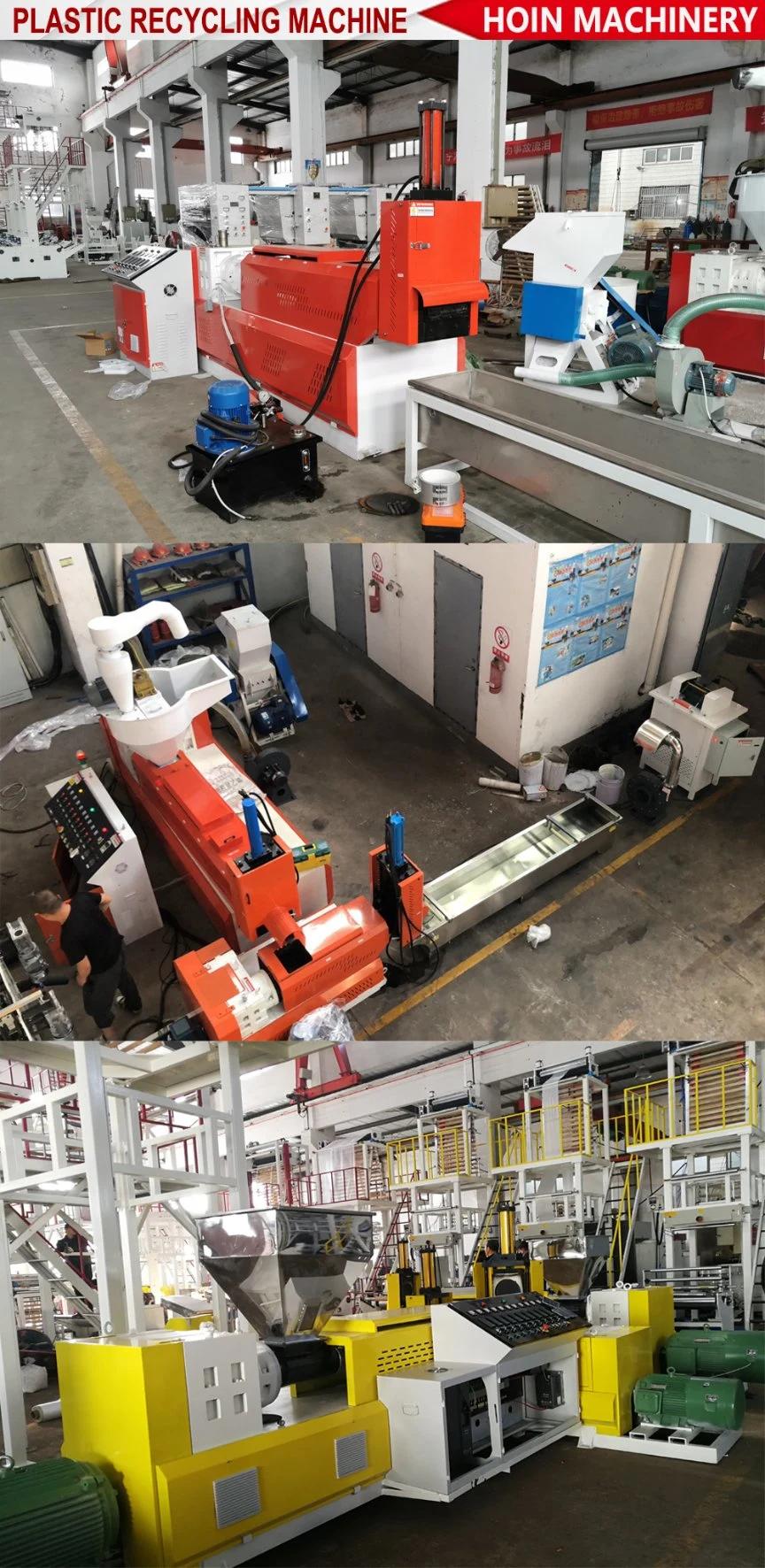

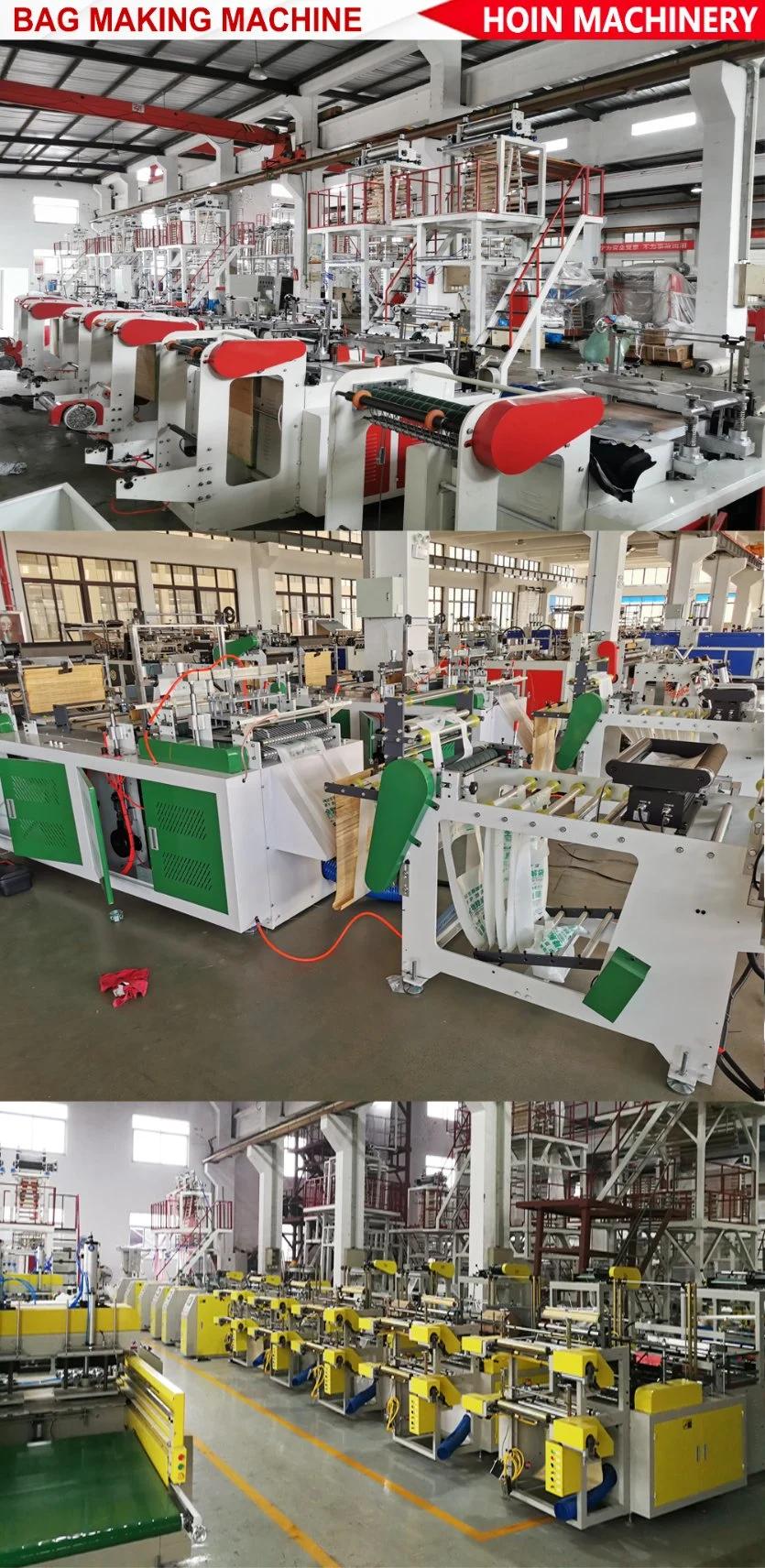

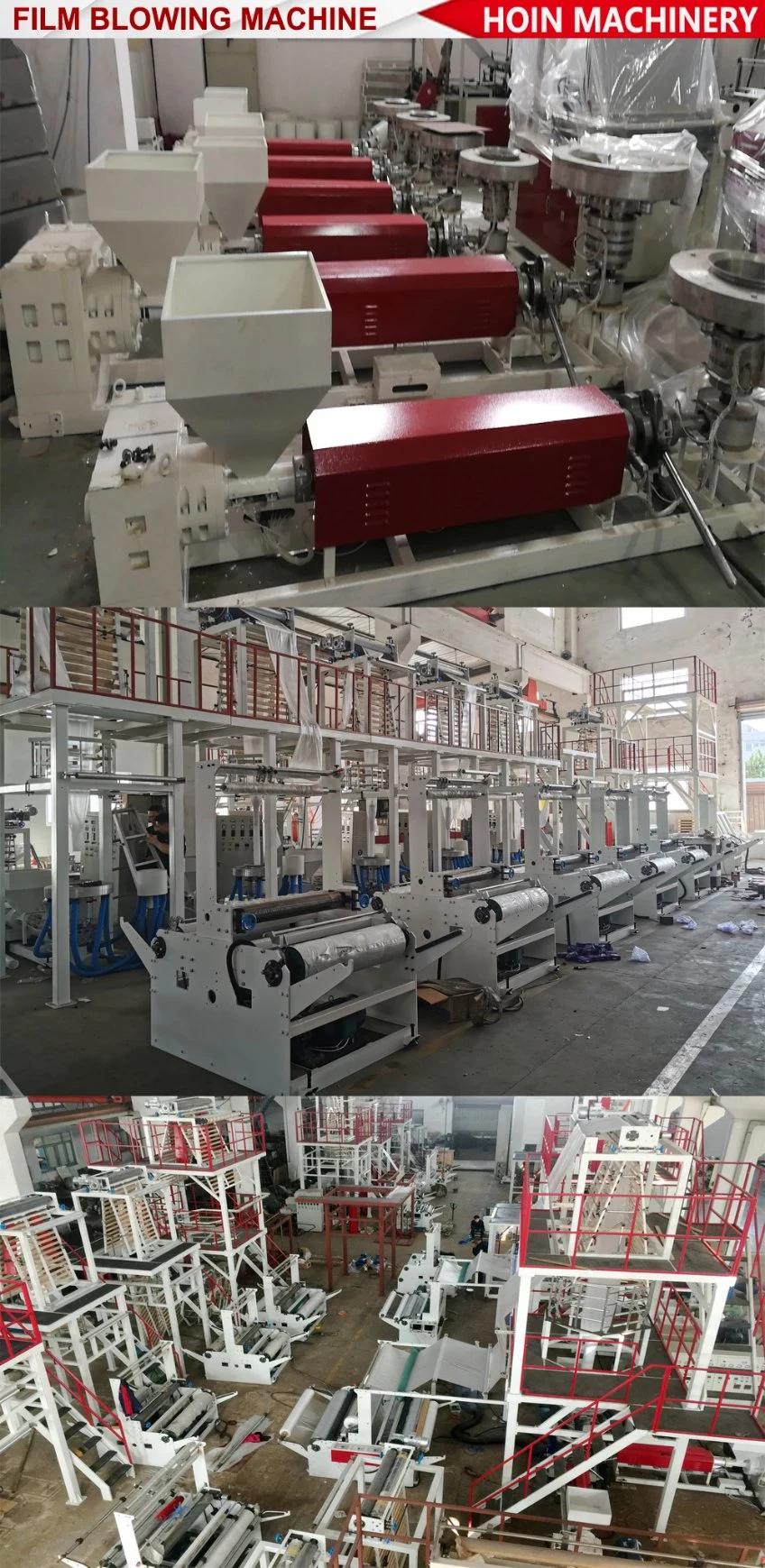

D. Workshop of HOIN

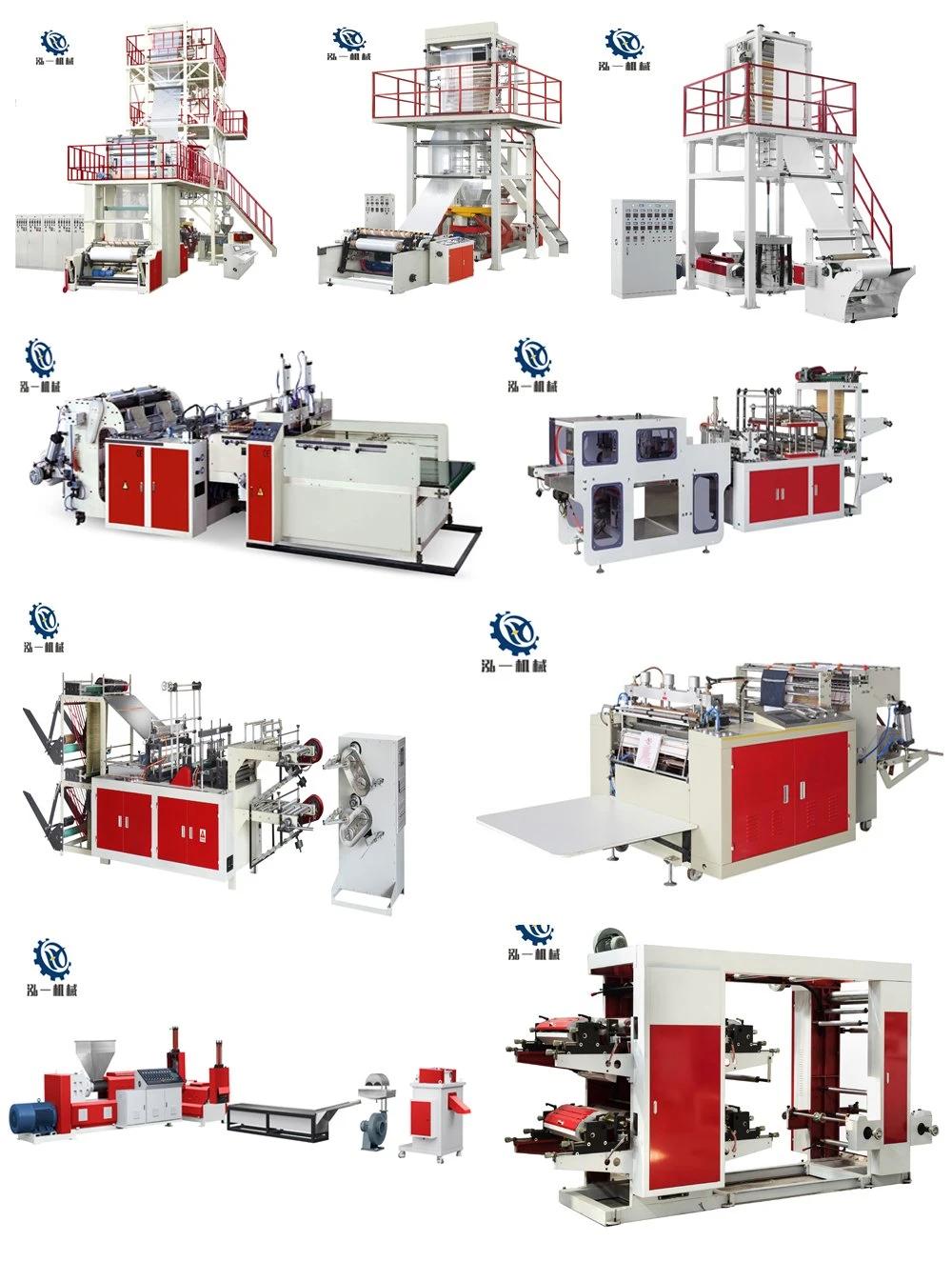

E. More Products Optional
F. After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query pls feel free to contact with us!
