• Model NO.：QS-DH75
• Machine Weight：4T
• Certification：CE, QS
• Max.Extrusion Output：70kg,H
• Driving Motor：30kw*2
• Size：5.6*5.8*5m
• Die Size：60,80mm
• Transport Package：Seaworthy
• Specification：CE, SGS
• Trademark：QUEENSENSE
• Origin：China
• HS Code：84773000
• Production Capacity：1000PCS,Per Year

Basic Info.

Model NO. QS-DH75 Machine Weight 4T Certification CE, QS Max.Extrusion Output 70kg/H Driving Motor 30kw*2 Size 5.6*5.8*5m Die Size 60/80mm Transport Package Seaworthy Specification CE, SGS Trademark QUEENSENSE Origin China HS Code 84773000 Production Capacity 1000PCS/Per Year

Product Description

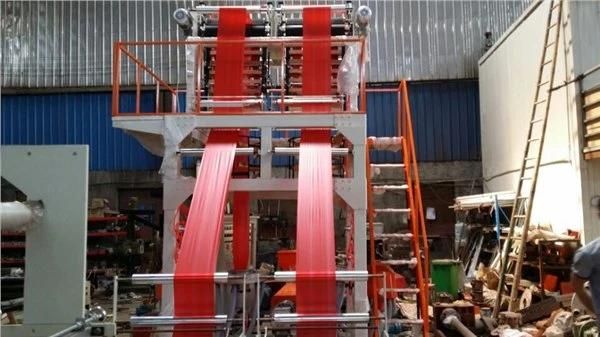

The Double Die Head Two-Colour Striped Film Blowing Machine Set is composed with two screw stemsand cylinder with onedie head, it adopts the device of two different plastic materials, which can blow different kinds of striped vest bags (shopping bag), it can get colorful bags without pringting, with such features as beautiful colors, average stripe, logical structure, advancedtechnology, even rewinding and high output.

Feature:
1. The full set machine is made of twosets main motors, two cylinders and one layer die head, feeding by two cylinders. Extruding with one die head one traction and rewinding device, it can improve the quality of striped film by adopting with one traction and one rewinding device.
2. The screw stem and cylinder ate made of 38CrMoAl high quality alloy steel after fine finishing and nitrided treatment, which has high hardness, strong resistance to corrosion, durable service.
3. The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blownplastic film has fine finishing, the blower is of labyrinth structure with even air output.
4. The coiling unit adopts pressutre friction rewinding or center rewinding, which is driven bytorque motor, with even and smooth rewinding and easy roll changing.

Technical Parameters:

model	QS-DH65	QS-DH75
Film width	200-600mm	300-800mm
Film thickness	0.008-0.1mm	0.008-0.1mm
Max.extrusion output	70kg/h	100kg/h
screw diameter	65mm	75mm
main motor	30kw	37kw
winding speed	5-50m/min	5-50m/min
size	4.8*2.2*3.8	5.2*2.6*4.2

Technical Parameters: 1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
