• Model NO.：16-63,75-315,200-450,315-630,500-800,630-1200
• Condition：New
• Pipe Diameter：From16mm to 1200mm
• Calibration Method：Vacuum and Water Cooling
• Cutting Method：Planetary Cutting
• PLC：Siemens
• Transport Package：Standard Export Packing
• Specification：Pipe diameter from 420mm to 1680mm
• Trademark：HSD
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：150-1200kg,H for Different Sizes of Pipes

Basic Info.

Model NO. 16-63/75-315/200-450/315-630/500-800/630-1200 Condition New Pipe Diameter From16mm to 1200mm Calibration Method Vacuum and Water Cooling Cutting Method Planetary Cutting PLC Siemens Transport Package Standard Export Packing Specification Pipe diameter from 420mm to 1680mm Trademark HSD Origin Qingdao, China HS Code 8477209000 Production Capacity 150-1200kg/H for Different Sizes of Pipes

Product Description

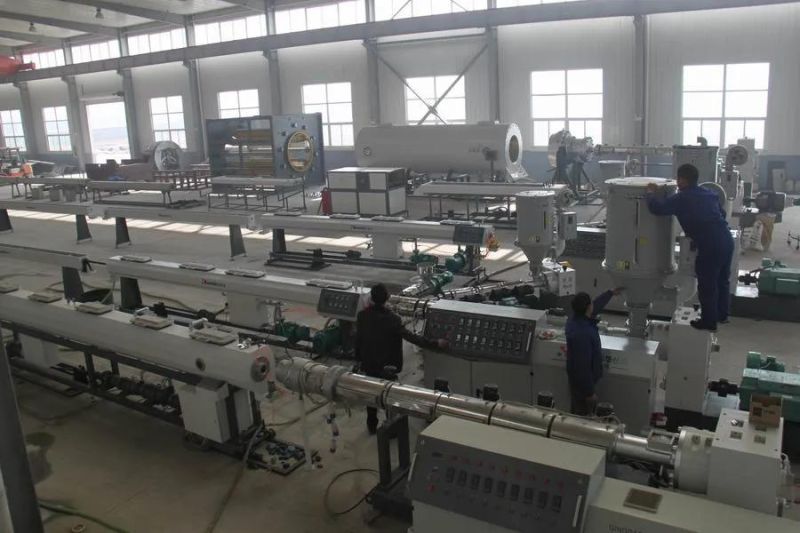

HDPE Water Supplying Solid Wall Pipe Extrusion Line Pipe Extruder (HSD)



---Pipe diameter range:16-63mm 75-250mm 160-315mm 200-450mm 315-630mm 500-800mm 630-1200mm
---The extrusion line comprise equipments and devices as below,
    1set   Vacuum loader
    1set   Hopper dryer
    1set   High-effeciency single screw extruder
    1set   25/25 single screw extruder for mark line
    1set   Vacuum calibration table
    2sets Water spraying tank
    1set   Hauling machine
    1set   Cutting machine
    1set   Stacker

I. Pipe advantages and Usage
---HDPE water supplying pipe is with advantages of good hot melt, flexibility, corrosion resistance, and aging tolerance.
---- HDPE pipe is widely used in municipal water supplying, city gas transportation and other areas.

II. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.

III. Spiral dihead & 25/25 co-extruder for mark line
---Diehead is spiral model. It has advantages of low melt temperature, good mixing, low cavity pressure, and stable performance.
----Special calibrating and cooling system. We use water film lubrication and water-ring cooling to fit for requirements of HDPE and PP material, to make sure accurate diameter and roundness of thick wall pipe when they are extruded at high speed.

IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without.


Style	PE16/63	PE75/160	PE160/315	PE200/450	PE-315/630	PE-500/800	PE-710/1200
Main extruder	SJ-65/30	SJ-75/33	SJ90/33	SJ90/33	SJ-120/33	SJ-120/33	SJ-150/33
Main motor	55kw	90kw	132kwDC	160kwDC	185kwDC	250kwDC	400kwDC
Pipe diameter	Φ16-63mm	Φ75-160mm	Φ160-315mm	Φ200-450mm	Φ315-630mm	Φ500-800mm	Φ710-1200mm
Capacity	80-100kg/h	180-250kg/h	280-400kg/h	350-500kg/h	450-600kg/h	700-900kg/h	800-1200kg/h
