• Model NO.：PXB80DB
• Bottom Blowing：Available
• Material：PP, PE, ABS...
• Total Weight：16t
• Output(Dry Cycle)：700*2 PC,Hr
• Die Head Option：Accumulator Head
• Transparent Line：Available
• Production Usage：Toys, Bottle, Small Auto Parts, etc
• Multi-Layer：Available
• Multi-Color：Available
• Screw Diameter：80mm
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 18L
• Trademark：Puxin
• Origin：Jiangsu
• HS Code：847730100

Basic Info.

Model NO. PXB80DB Bottom Blowing Available Material PP, PE, ABS... Total Weight 16t Output(Dry Cycle) 700*2 PC/Hr Die Head Option Accumulator Head Transparent Line Available Production Usage Toys, Bottle, Small Auto Parts, etc Multi-Layer Available Multi-Color Available Screw Diameter 80mm Transport Package Film Packing with Wooden Bottom Specification Max capacity 18L Trademark Puxin Origin Jiangsu HS Code 847730100

Product Description

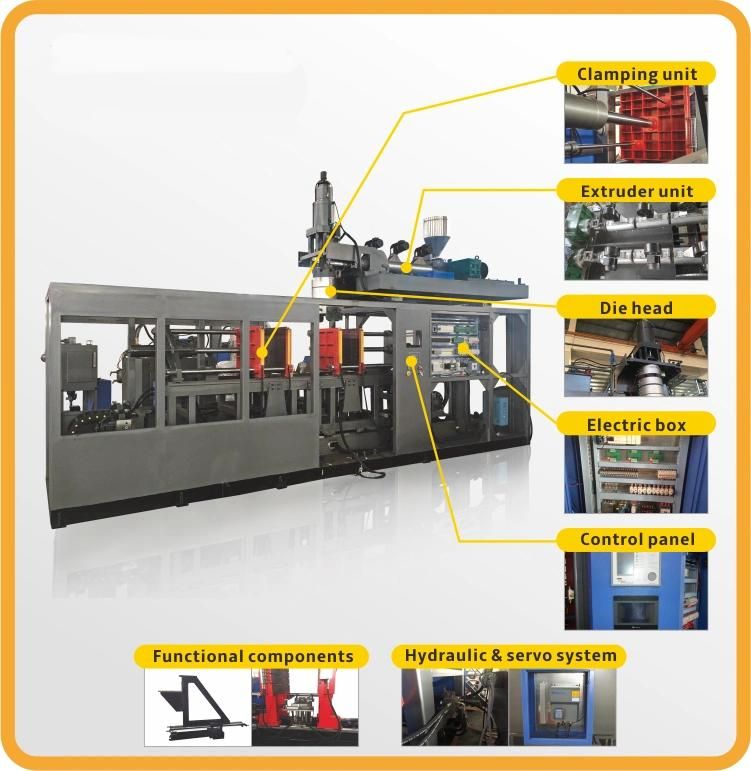

PXB80DB
12L - 20L Double Station Blow Molding Machine
- Fixed Opening-Closing Clamping with 3L Accumulator Head Capacity
- Perfect Usage for production of small toys, auto parts, sprayer and so on.
- High clamping force with short production cycle
- High capacity amount with energy saving.
- Optional Transparent line and bottom blowing system.

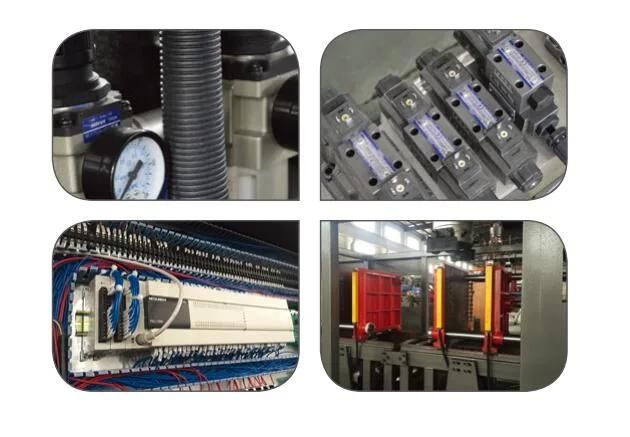

Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan



Material		PE,PP,ABS...
Max container capacity	L	18
Output(dry cycle)	pc/hr	700×2
Machine dimension(L×W×H)	M	6.3×1.6×3.5
Machine weight	T	16

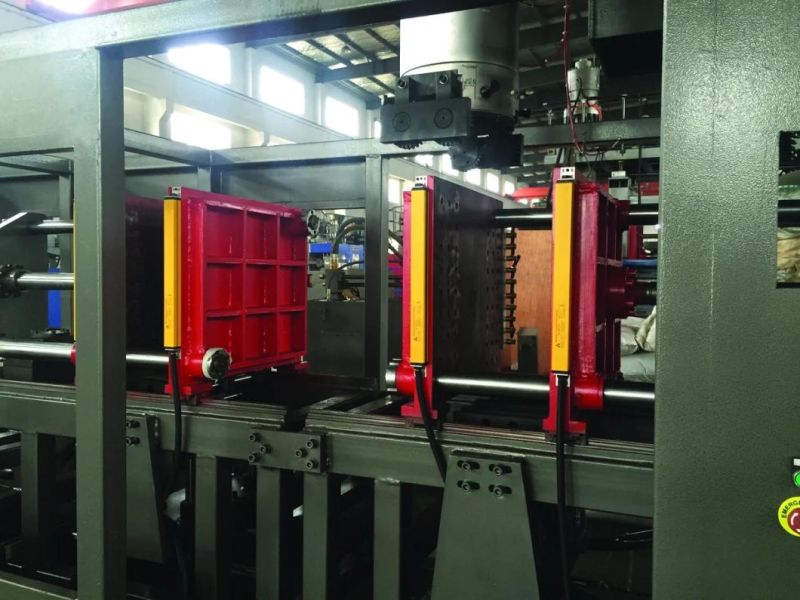

Clamping Unit
Clamping force	kn	110
Mold platen size(W×H)	mm	680×600
Platen opening stroke	mm	300-750
Platen moving stroke	mm	450
Max mold size(W×H)	mm	450×700
Mold thickness	mm	310-370
Power
Servo oil pump motor power	KW	13
Servo pump displacement	L/MIN	80
Blow pressure	MPA	0.8
Air consumption	M3/MIN	0.7
Cooling water pressure	mpa	0.3
Water consumption	L/min	60
Average energy consumption	KW	35-40
Extruder unit
Screw diameter	mm	80
Screw L/D ratio	L/D	24
HDPE Melting capacit for HDPE	kg/hr	140
Number of heating zone	zone	3
Screw heating power	kw	14.2
Screw fan power	KW	0.5
Extruder motor power	kw	37
Die head
Number of heating zone for single die head	zone	4
Heating power for single die head	kw	18
Max die-pin diameter	mm	200
Accumulator capacity	L	3
(HDPE) Accumulator weight(HDPE)	KG	2.25

Delivery Time:
- No later than 50 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments and moulds for production line are available and optional, please kindly ask for quotation.
