PVC, PP, PE Corrugated Pipe Making Machine
Jiangsu Faygo Union Machinery Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
Base Info
- Model NO.：FPC
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
- Condition：New
- Processing Material：PVC,PP,PE

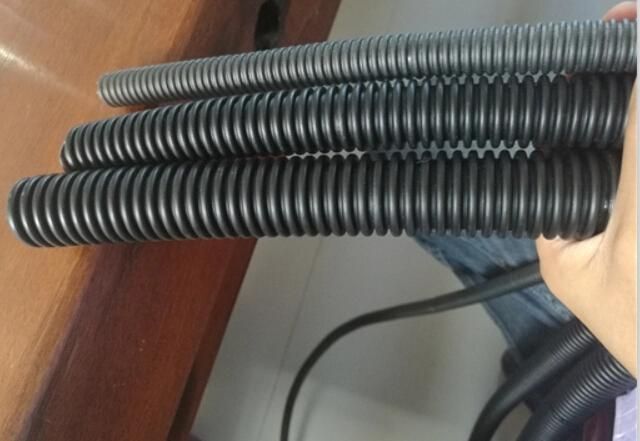

- Application：Produce Corrugated Pipes
- Screw Type：Single Screw
- Feeding Mothed：Dosing Feeding System
- Apply to Pipe Size：5-100mm
- Low Pressure Electrics：Schneider
- Motor：Siemens
- Inverter：ABB
- Transport Package：Woodbox with Film Wrapped
- Specification：SJ
- Trademark：Faygo
- Origin：Jiangsu Suzhou
- HS Code：84778000
- Production Capacity：100sets Per Month
- Package size per unit product：420.00cm * 110.00cm * 240.00cm
- Gross weight per unit product：4000.000kg
Description
9-3216-50 50-100 Main machine model SJ-30 SJ-45 SJ-65 SJ-65 Main machine l/d 30:1 28:1 30:1 30:1 Production capacity kg/h 10 40 60 80 Main motor capacity kw 4 11 18.5 37 Moiding machine capacity kw 1.1 1.5 1.5 2.2 Pair of modules 42 35 35 35 Cooling mode Water cooling and fan cooling Production (m/min) 6-10 8-12 8-15 4-8 Metering mode inducting mode
Components of PVC/PP/PE corrugated pipe making machine
a. Single screw extruder:
Using the high efficient single screws, specially designed for plastic material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality corrugated pipe extrusion.
b. extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes.

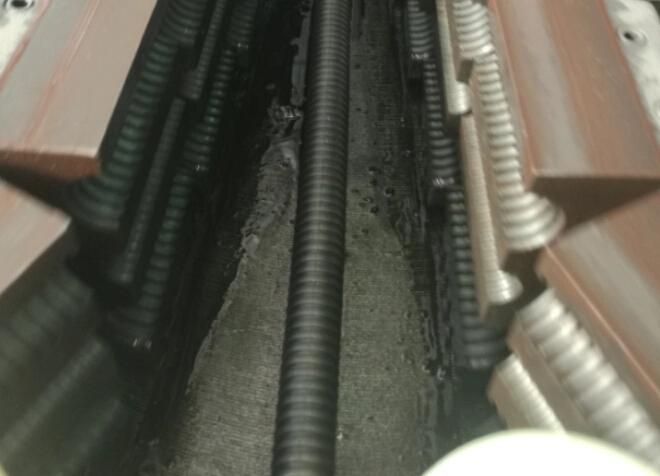

c. forming machine with forming block:
Rapid vacuum forming system with air cooling and water cooling. The precised mould block design to make the cooling more effeciency. New design of air cooling system to inscrease the production speed.
d. colier:
single plate coiler and double plate coiler, coiling automaticly.
Equipment list of PVC/PP/PE corrugated pipe making machineCompulsory devices1 Material charge 1 set 2 Single screw extruer 1 set 3 die head 5-100mm 4 forming machine with forming block 1 size need one set block 5 coiler single/double plate coiler 6 Electrical cabinet(ABB, Omron, RKC, Schneider etc) 1 set 7 Spare parts 1 set Optional Devices 1 color mixer 1 set 2 Plastic crusher 1 set 3 Industrial water chiller 1 set 4 Air compressor 1 set 5 Thermocontroller for die head 1 set Payment, delivery and after sales services 1 Payment terms 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable 2 Delivery time 60 days after receipt of prepayment 3 Packing method Wooden cases/pallets with stretching films 4 Guaranteed time 18 months for mechanical parts, 12 months for electrical parts 5 After sale service Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable 6 Contact information
Company information:

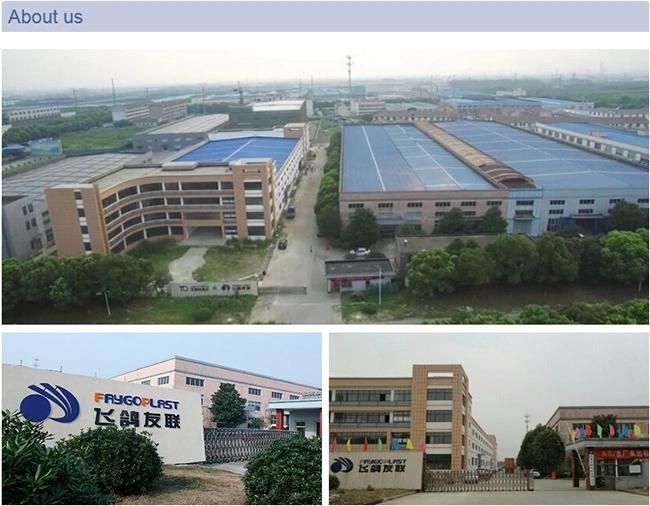

Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!
