• Model NO.：SJ
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Film Width(mm)：200-600
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：90
• Die Size(mm)：60,120 High Speed Type
• Inverter：LG Brand
• Transport Package：as Requirement
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 1.5t Certification CE, ISO9001:2008 Film Width(mm) 200-600 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 90 Die Size(mm) 60/120 High Speed Type Inverter LG Brand Transport Package as Requirement Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

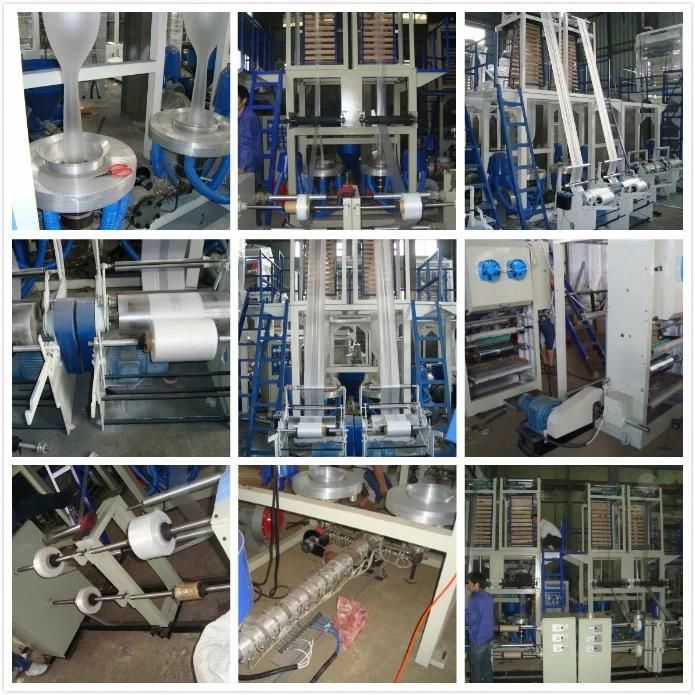

Product Description

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like
low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life, Siemens Brand.
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets
7,  Temperautre Controller:  Omron Brand
8,  Inverter:  LG Brand
9,  Ceramic Heater: Heating faster and Keep warm longer
 Machine Parameters

Model	SJ-65-600	SJ-70-800
Screw Diameter	65mm	70mm
Screw Ratio	1:30	1:30
Screw Speed	10-110r/min	10-110r/min
Max.Output	50kg/h	65kg/h
Max.Folding Width of Film	600mm×2	800mm×2
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm
Power of Main Motor	30Kw	37Kw
Total Power	50Kw	57Kw
Weight of Machine	3000kg	4500kg
Overall Dimensions	4800×2200×3800	5200×2600×4200
