• Model NO.：SJ
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Screw Ratio：L,D30:1
• Screw Speed：10-120r,Min
• Power of Main Motor：18.5kw
• Max. Extrusion Output：30-60kg,H
• Transport Package：as Requirement
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 1.5t Certification CE, ISO9001:2008 Screw Ratio L/D30:1 Screw Speed 10-120r/Min Power of Main Motor 18.5kw Max. Extrusion Output 30-60kg/H Transport Package as Requirement Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

Product Description

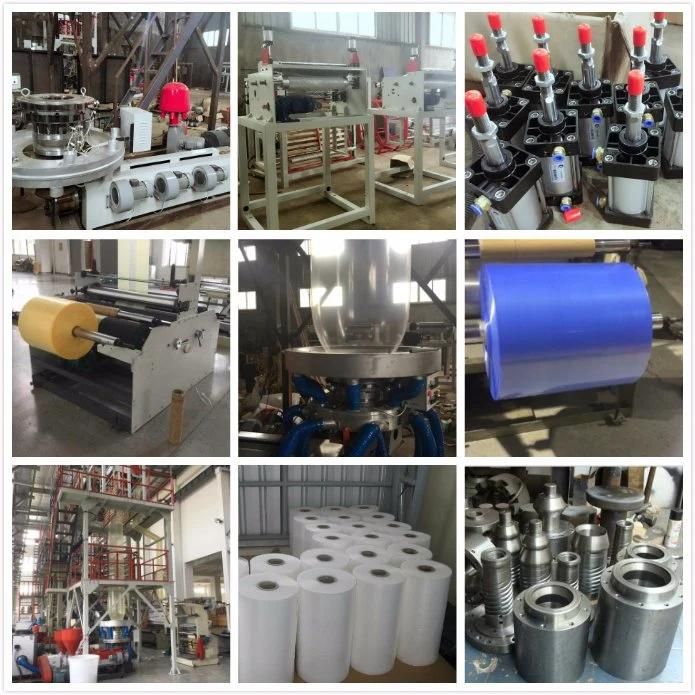

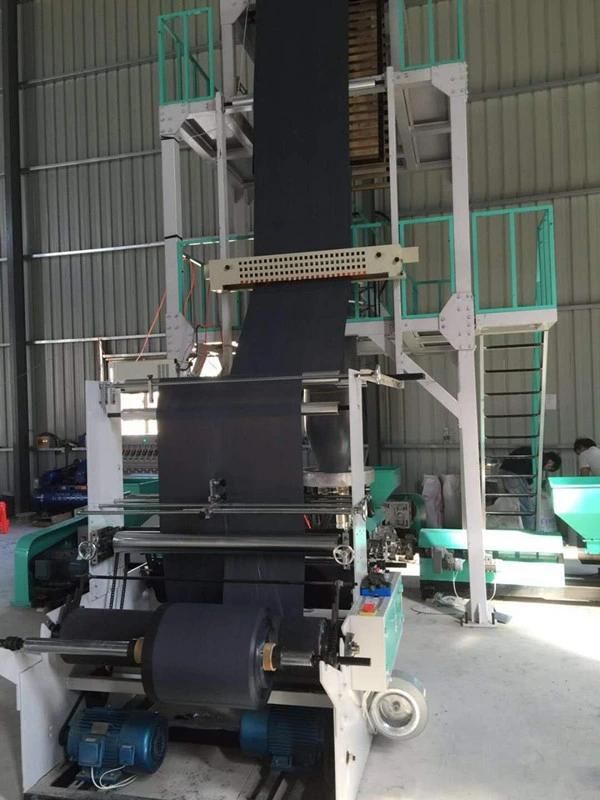

High Speed Plastic Film Blown Machinery (SJ-50/600 SJ-55/800 SJ-60/1000)


Characteristic:

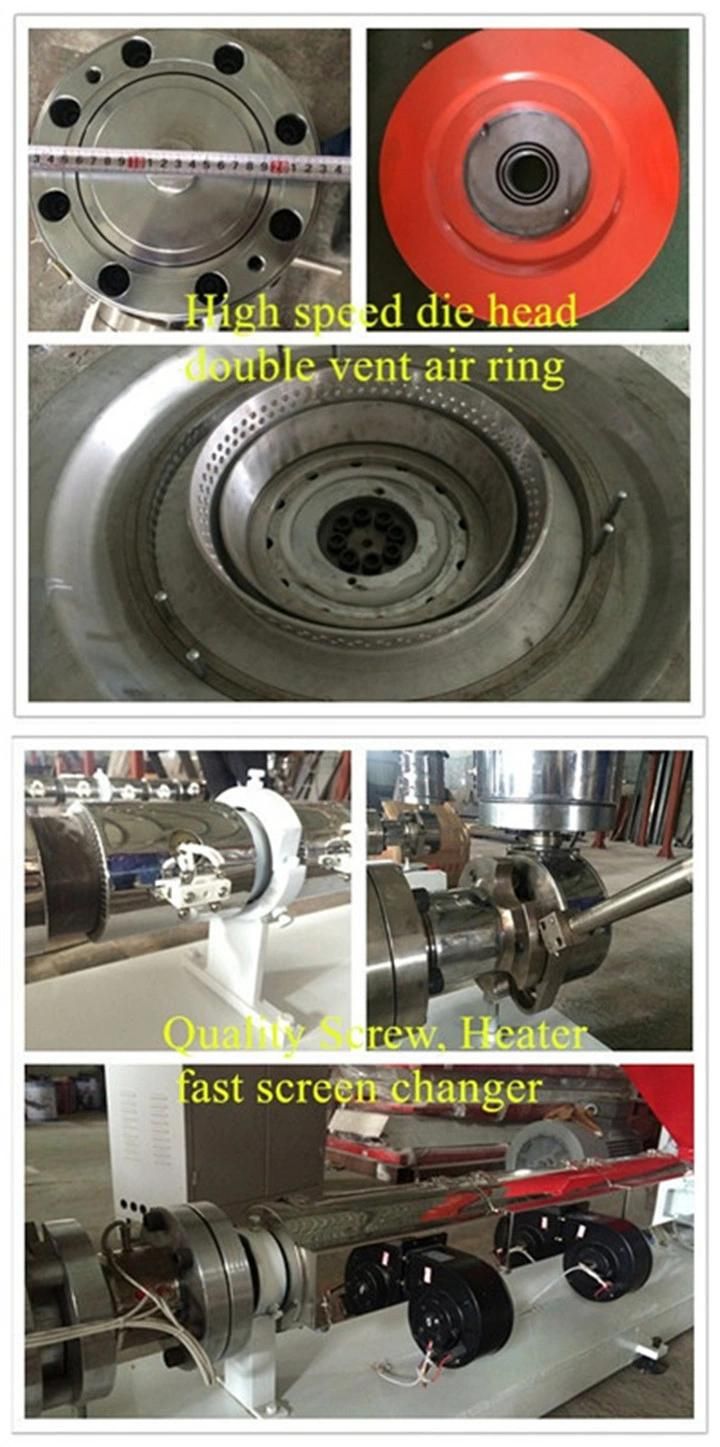

Its extruder, cylinder and screw rods are made of high quality of alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blow the plastic films like low density polytene (LDPE), high density polytene (HDPE) and linear low density polytene (LLDPE), It is widely applied to producing the packing bags for foodstuff, clothing, rubbish.


Installation Services

Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee

Model	SJ-50/600	SJ-55/800	SJ-60/1000
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5kw	22kw	30kw
Max. Extrusion output	30-60kg/h	40-80kg/h	50-100kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Sub-master Machine Lift Scope	800mm	1000mm	1200mm
Total Power	28kw	36kw	42kw
Weight of Machine	2600kg	3000kg	3500kg
Overall Dimensions(L×W×H)	4600×2600×4000mm	4800×2800×4300mm	5000×3000×4800mm
