• Model NO.：YF300
• Extruder Control：by Siemens PLC Screen Touch
• Shipment：by LCL or FCL
• Extruder Capacity：150kg,Hr, 250kg,Hr, 400kg,Hr
• Co-Extrusion：Available
• Transport Package：Plastic Film and Wooden Box
• Specification：Capacity upto 400kg,h
• Trademark：CONBOPLAS
• Origin：Zhangjiagang
• HS Code：84778000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. YF300 Extruder Control by Siemens PLC Screen Touch Shipment by LCL or FCL Extruder Capacity 150kg/Hr, 250kg/Hr, 400kg/Hr Co-Extrusion Available Transport Package Plastic Film and Wooden Box Specification Capacity upto 400kg/h Trademark CONBOPLAS Origin Zhangjiagang HS Code 84778000 Production Capacity 30 Sets/Month

Product Description

Brief Introduction:
This model of PVC ceiling panel making machine has the characteristics of high output, low sheering force, long life service. Most important of all, after simple changing of the die mold and screw, this machine can also produce the foam profiles. What's more this machine is reliable quality, very cheaper price, complete turnery solution including supplying machine, installation, training supplying raw materials and all others you need!

Feature:

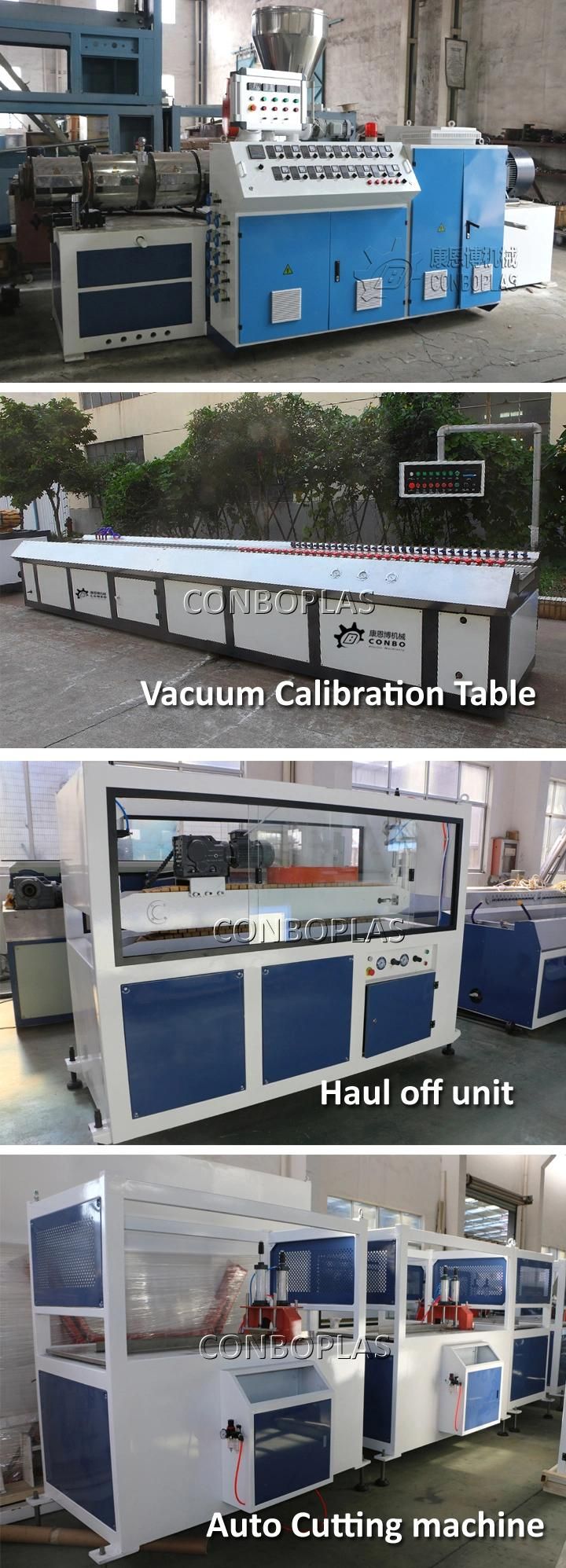

1) Extruder adopts cast-aluminum heating circles, high quality thermo-controllers, air blowers for cooling, AC/DC inverter and screw core oil circulation cooling.
2) Calibrating tables adopts special cooling system, which can guarantee the effective cooling.
3) Haul off machine adopts special lifting technology, which works stably with powerful hauling force.
4) Cutting machine works together with extrusion line synchronously, installed with length-setting unit, which can guarantee high speed cutting, uniform length of cutting.

Panel advantages:
The panel produced by this line has the advantages of light weight, moisture-proof, heat insulation, and it's not easy to fire or deform. It's smooth, beautiful, no harm odor, easy to paint, install.

Usual size of panels:
Panel width: 180mm, 200mm, 250mm, 300mm, 400mm, 600mm, etc
Panel thickness: 4.5mm, 5.5mm, 6mm, 6.5mm, 7mm, 7.5mm, 8mm, 9mm, 10mm, 12mm, etc.

General specifications:

Item/Model	YF300	YF600
Panel width (mm)	180-300mm	300-600mm
Extruder model	SJSZ51/105	SJSZ65/132
Driving motor (kw)	18.5	37
Output (kg/h)	80-100	150-250
Speed (m/min.)	0.5-5	0.5-5

Remarks: all the information above is only for your information; pls contact us for more details.

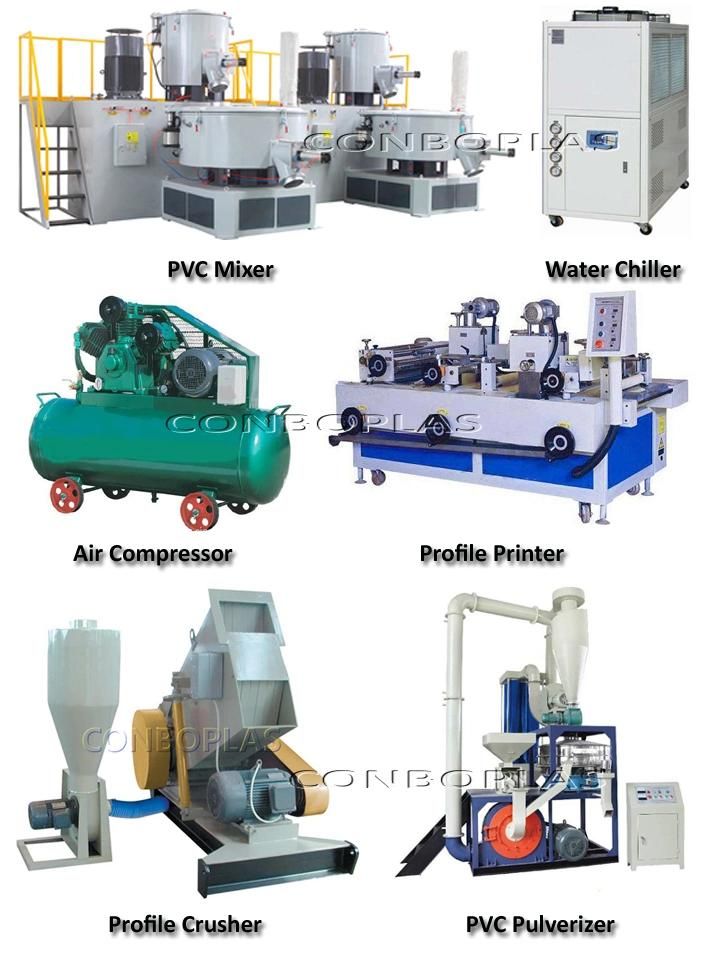

AUXILIARY MACHINES:




ELECTRICAL COMPONENTS QUALITY:
