• Customized：Under The Order
• Condition：New
• Die Head Design：T-Type Die Head-Jc-Times Brand
• Usual Sheet Width：600-2200mm
• Application：Packaging, Stationery, Chemicals
• Main Electrical Components：ABB, Rkc, Ormorn, Schnider, Delix etc
• Usual Sheet Thickness：0.5-2mm, 1.5-10mm, 3-30mm, 6-20mm
• Extruder Design：Conical Single Screw Extruder
• Terms of Delivery：Fob, CIF, CIP, DDP, EXW
• Output：120kg-1000kg
• Payment System：Prepayment 30%+Balance 70%
• Production Time：60 Days
• Transport Package：Wooden Cases with Vacuum Film
• Specification：LMSB-6533, 75,33, 90,33, 120,33, 120,36, 150,33
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：8477209000
• Production Capacity：100 Sets,Year

Basic Info.

Customized Under The Order Condition New Die Head Design T-Type Die Head-Jc-Times Brand Usual Sheet Width 600-2200mm Application Packaging, Stationery, Chemicals Main Electrical Components ABB, Rkc, Ormorn, Schnider, Delix etc Usual Sheet Thickness 0.5-2mm, 1.5-10mm, 3-30mm, 6-20mm Extruder Design Conical Single Screw Extruder Terms of Delivery Fob, CIF, CIP, DDP, EXW Output 120kg-1000kg Payment System Prepayment 30%+Balance 70% Production Time 60 Days Transport Package Wooden Cases with Vacuum Film Specification LMSB-6533, 75/33, 90/33, 120/33, 120/36, 150/33 Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000 Production Capacity 100 Sets/Year

Product Description

PMMA/PS/PC light guide sheet extrusion line.
PMMA/PS/PC transparent Optical plate production line, sheets machinery

PART 1 INTRODUCTION:

This line is specially used for producing PMMA/PC/PS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on





PART 2: SHEET SPCIFICATIONS:

1. Usual sheet width: 500, 600, 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm.

2.  Usual sheet thickness: 0.2-2.0mm, 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm.



PART 3: FEATURES OF THIS LINE

1. Extruder:

Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
With the Melt Pump and Hydraulic screen changer.

2.T -type die head:

suitable compression ratio to ensure uniform flow stability.

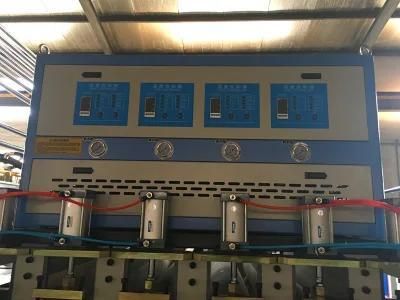

3. Three-roller calendar:

According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

4. Cooling frame:

According to product specifications, configurations with different specifications of the stainless steel cooling roller
5. Edge-cutting devices:

Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
6. Cut off machine:

Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
