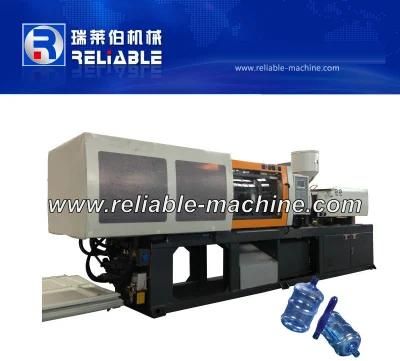

Small Plastic Injection Molding Machine for Producing Bottle Preform and Bottle Cap

Zhangjiagang Reliable Machinery Co., Ltd.
  • Type:Preform Injection
  • Structure:Horizontal
  • Plastic Type:Thermoplastic
  • Plasticizing Way:Screw Type
  • Clamping Way:Hydraulic
  • Automation:Automatic

Base Info

  • Model NO.:RXF-5500 Injection Molding Machine
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008
  • Products Name:Small Plastic Injection Molding Machine
  • Feature:Energy Saving
  • Capacity:427 ~ 521g,S
  • Application:Preform , Cap Producing
  • Product Material:Pet HDPE PS PP etc
  • Max. Clamping Force:5500kn

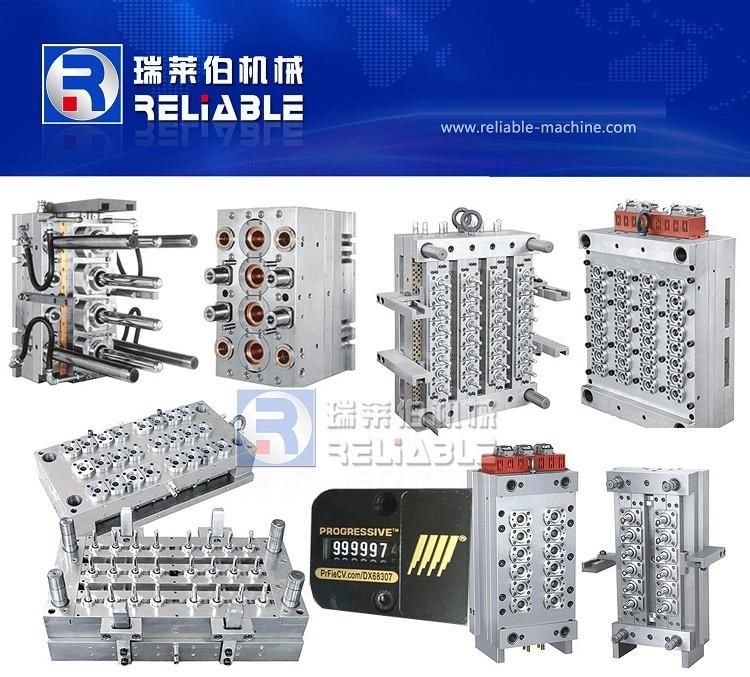

  • Mould Cavity:Max 48PCS
  • Opening Stroke:820mm
  • Control System:Mitsubish PLC & Touch Screen
  • Warranty:Two Year Global Guarantee
  • Transport Package:Wooden Cases Packing
  • Specification:RXF-5500 Injection Molding Machine
  • Trademark:Reliable Injection Molding Machine
  • Origin:Zhangjiagang City, Jiangsu Prov
  • HS Code:8477300000
  • Production Capacity:5 Sets of Injection Molding Machine Per Month


5500-4040Small Plastic Injection Molding Machine for Producing Bottle Preform and Bottle Cap

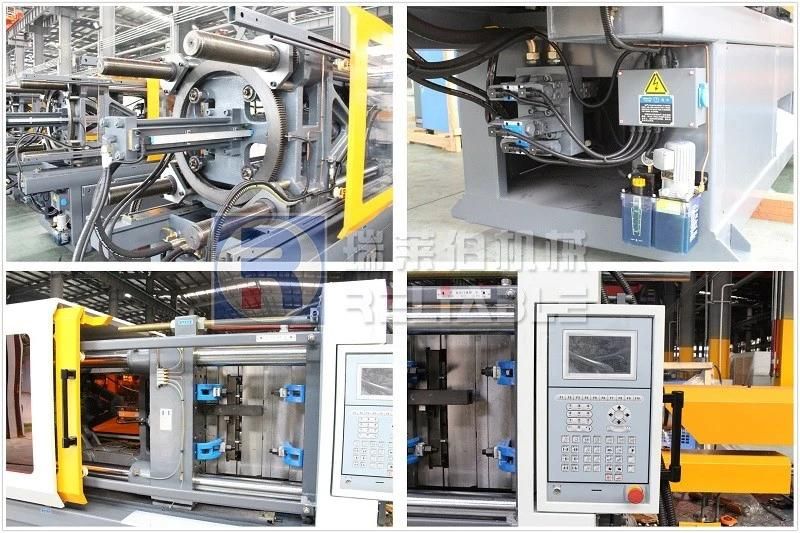

A Injection Unit of Small Plastic Injection Molding Machine
A01) Oil temperature indication
A02) Adjustable such back before and after refilling
A03) Auto sprue break
A04) Linear transducer to control programmable injection position
A05) Cold start screw prevention
A06) Sliding Mechanism for hopper
A07) Gas Nitrated hardened screw and Barrel
A08) Screw back pressure con troll with pressure relief valve
A09) Hand Operated Lubrication Unit

B. Clamping Unit of Small Plastic Injection Molding Machine
B01) Five Point twin toggle locking system
B02) Case Hardened toggle, Brackets and links with hardened
B03) Motorized mould height adjustment for quick mould change
B04) Auto tonnage setting facility
B05) Low pressure precise mould protection with pressure and time setting
B06) Five stage Mould closing
B07) Five stage Mould opening
B08) Hydraulic cushioning for consistent mould opening position
B09) Linear transducer to control programmable clamp system
B10) Electrical and hydraulic (Dump value) interlock safety gate
B11) Moving platen with mechanical support with Teflon
B12) Hydraulic Ejector with Multi stroke
B13) Auto lubrication unit

C. Ejector of Small Plastic Injection Molding Machine
C01) Linear transducer to control programmable ejector position
C02) Multiple stroke ejection
C03) Ejector forward/ backward speed adjustable
C04) Ejector forward/ backward pressure adjustable
C05) Two stage in ejector forward/ backward operation
C06) Additional safety of sensing ejector backward position with
Proximity switch
Small Plastic Injection Molding Machine for Producing Bottle Preform and Bottle Cap
D. Hydraulic of Small Plastic Injection Molding Machine

D01) Compact and Simple design
D02) Sealing ring imported from Japan, a total four leak-proof protection to
Prevent the oil leakage.
D03) Proportional value for pressure and speed
D04) Variable displacement pump system attached with pulse absorber
D05) High magnetic closed-loop oil filter to effectively remove debris of the
Oil, the filtration is up to 10um.
D06) Easy access to hydraulic elements for ease maintenance

E. Controller of Small Plastic Injection Molding Machine
E01) Display type LCD QVGA B/W of 5.7 "with 100 membrane keys
E02) Multi-CPU control, with 32 bit
E03) Precise temperature control, the precision is of ± 1 degree
E04) Four forms of switch at the end of injection, they are time,
Location, pressure, and speed.
E05) Breaker and air switch are imported from Japan, the brand of
Micro switch is Omron
E06) Instruction cycle time of controller in 0.4 microseconds
Small Plastic Injection Molding Machine for Producing Bottle Preform and Bottle Cap
The sample service
1.we can send you the video of the running machine. are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on). the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.

We Warmly Welcome Customers All Over The World To Our Company.If You Have Interests In Our Products,Please Contract With Us FREELY!
