• Model NO.：HY-61,62B
• Raw Material：OPS, HIPS, PS, PVC, Pet
• Driven Type：Mechanical, Electrical, Pneumatic
• Application：Containers,Boxes,Trays, Lids
• Power Supply：AC380V, 50,60 Hz
• Max. Forming Area：610*620mm
• Max. Forming Depth：100mm
• Thickness of Sheet：0.1-1.0mm
• Production Speed：600-1200 Cycles,Hr
• Dimension(L*W*H)：4410*1290*2130mm
• Transport Package：Wooden Case
• Specification：610*620
• Trademark：Hongyin
• Origin：Ruian, Zhejiang
• HS Code：847780000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-61/62B Raw Material OPS, HIPS, PS, PVC, Pet Driven Type Mechanical, Electrical, Pneumatic Application Containers/Boxes/Trays/ Lids Power Supply AC380V, 50/60 Hz Max. Forming Area 610*620mm Max. Forming Depth 100mm Thickness of Sheet 0.1-1.0mm Production Speed 600-1200 Cycles/Hr Dimension(L*W*H) 4410*1290*2130mm Transport Package Wooden Case Specification 610*620 Trademark Hongyin Origin Ruian, Zhejiang HS Code 847780000 Production Capacity 20sets/Year

Product Description

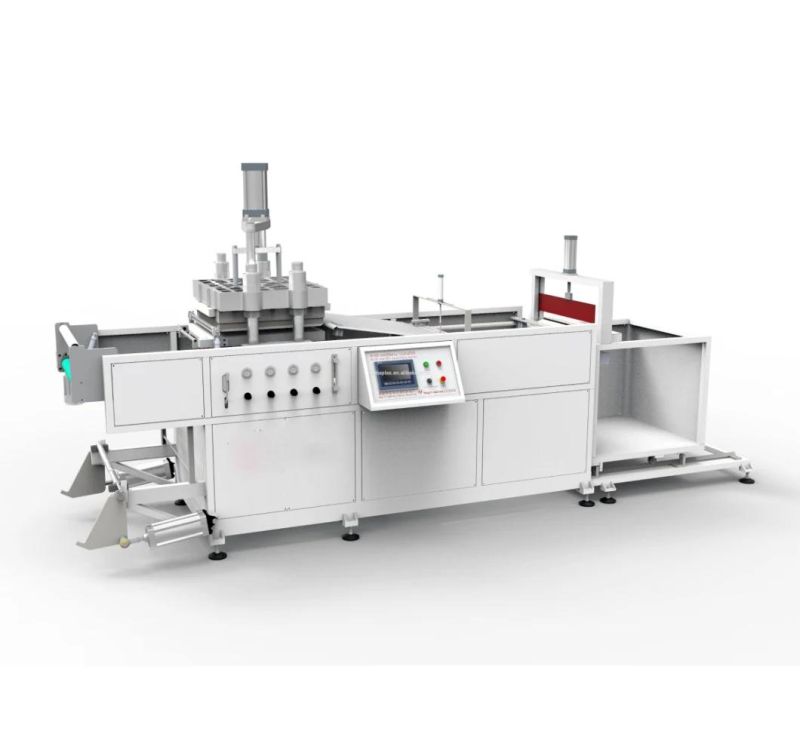

I. Introduction With The Machine
HY-61/62B is a combination of mechanical, electrical and pneumatic components, and the whole system is controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming into one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment with telecommuting and memory reserve functions.

Specifications


Forming Area	610×620mm
Forming Depth	100mm
Sheet Thickness Range	0.10-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	10 Liters/min(15-20ºC)
Air Consumption	1800 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	3P,  AC380V±15V, 50HZ
Mould Plate Heating Power	6 kw
Heating Plate Power	15 kw
Weight	2000kg
Dimensions(L×W×H)mm	4410×1290×2130 mm

II. Application Area
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce
various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food
boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture

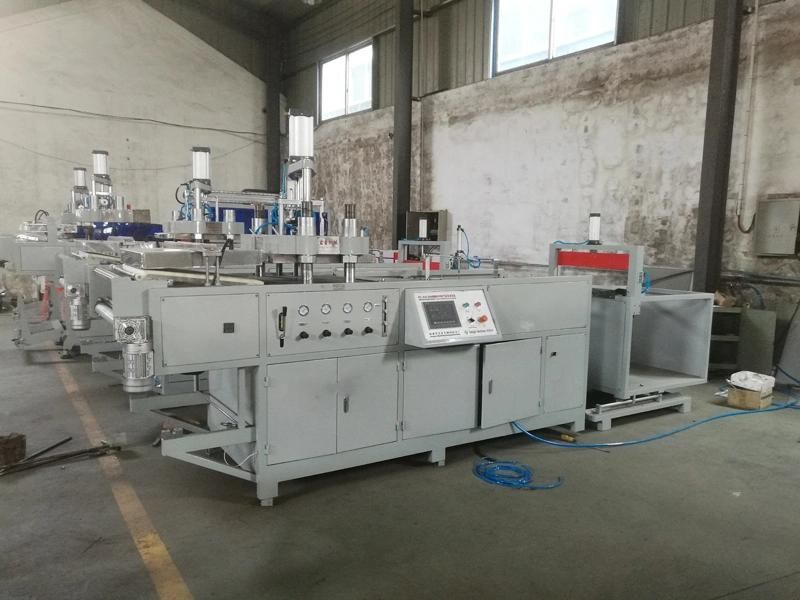

1. HY-61/62B Plastic Thermoformer Workshop

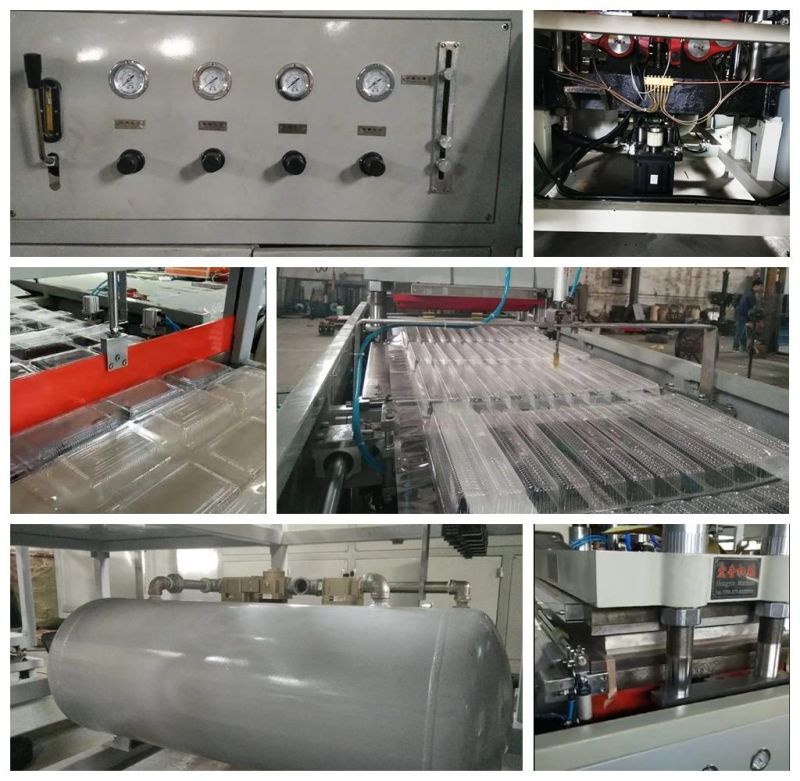

2. Machine Details

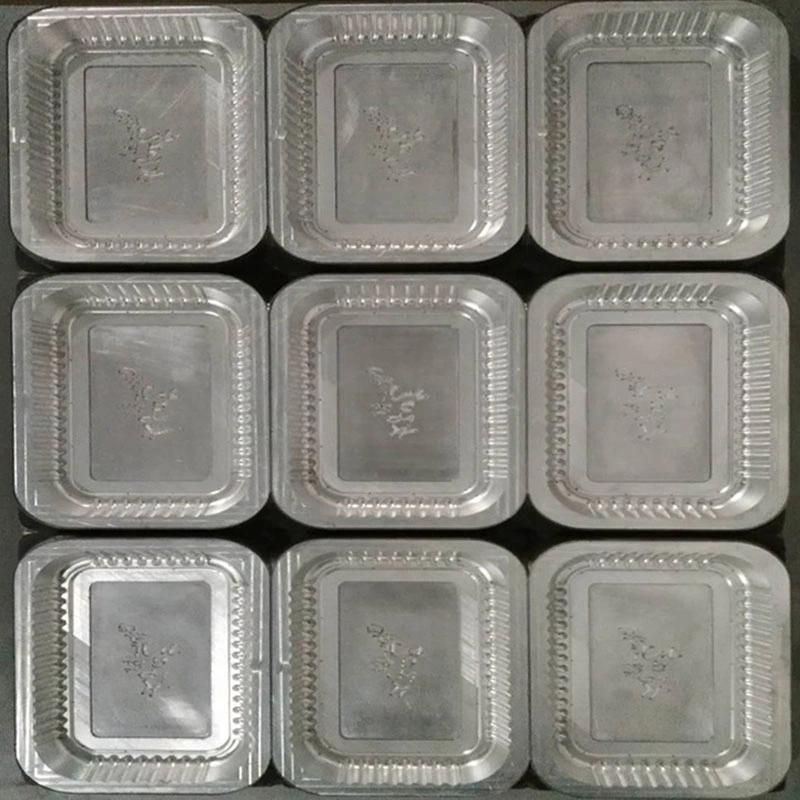

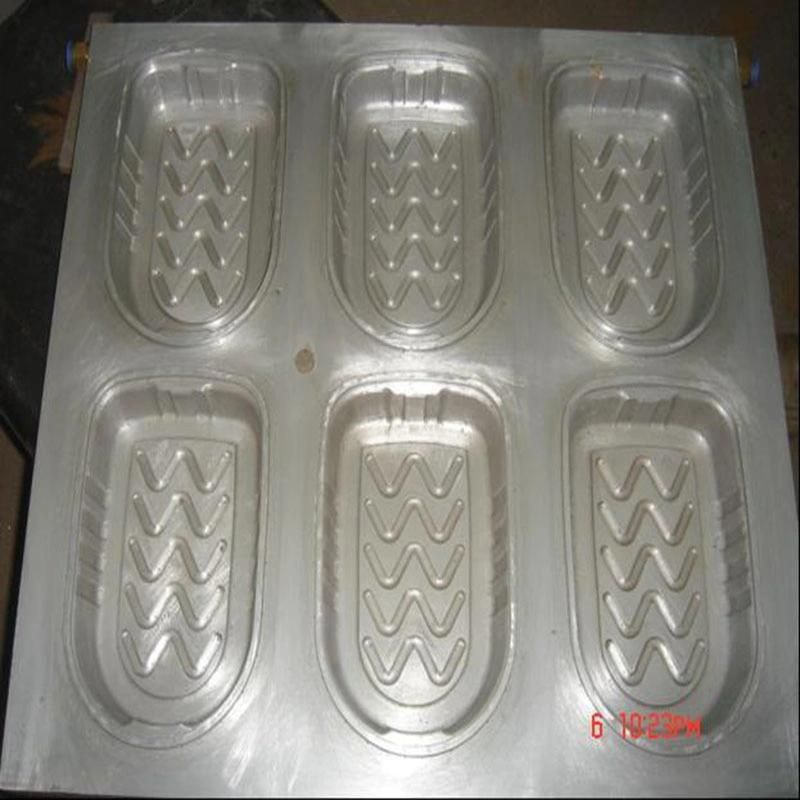

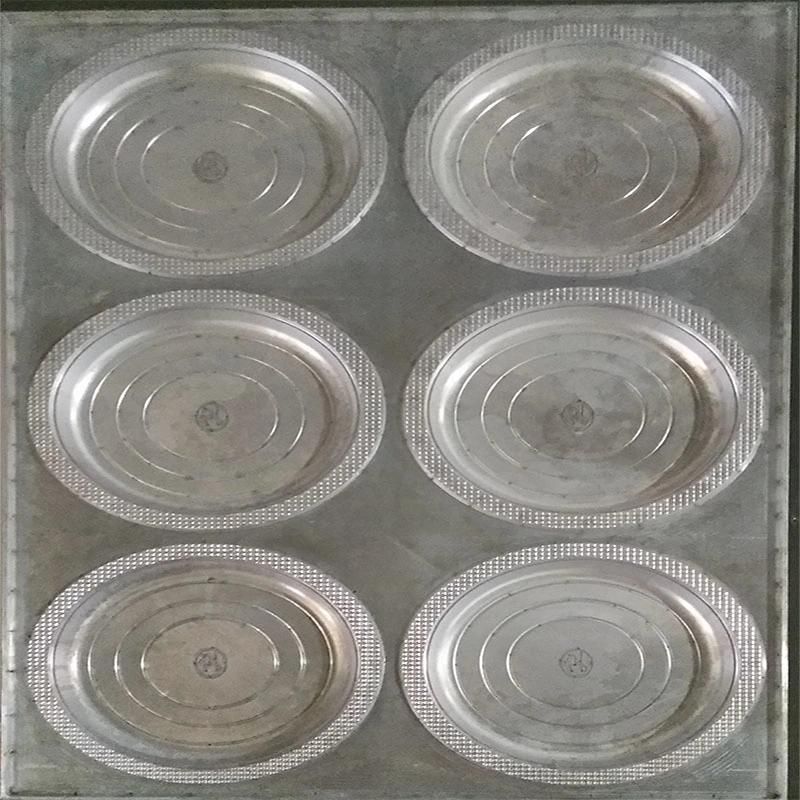

3. The Mould shows


4. The Products Samples

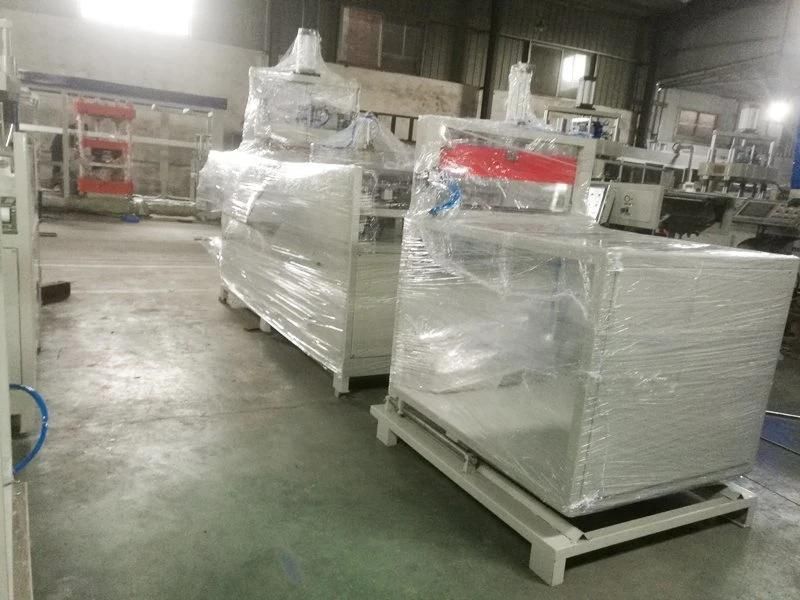

5. Shipping


IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD 150 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
 If you are interested in our machine, please feel free and contact me.
