Automatic Plastic Disposable Tray/Box/Food Package Container Blister Forming Machine Full ...
Zhejiang Hongyin Machinery Co., Ltd.- Warranty：1 Year
- Automation：Yes, Automatic
- Raw Material：PVC,Pet,HIPS,PP
- Shaping Mode：Die Molding
- Application：Machinery & Hardware, Food & Beverage, Medical, Toys, Chemical, Apparel
- Driven Type：Pneumatic
Base Info
- Model NO.：HY-710,1200
- Computerized：Yes, Computerized
- Certification：CE, ISO9001:2008, SGS
- After-sales Service：1 Year
- Forming Area：720*1220mm
- Forming Height：165mm
- Suitable Material：Pet,PVC,HIPS,PP,PS
- Forming Type：Negative Pressure
- Transport Package：Wooden Case
- Specification：CE
- Trademark：HongYin
- Origin：Ruian, Zhejiang
- HS Code：847780000
- Production Capacity：100 Sets,Year
Description
II. The vacuum forming machine application range:
HY-710/1200 vacuum machine is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. Which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.
III. The vacuum machine main introduction:
1. Control system:
Whole machine adopts PLC to control the production technical process, tail remember of modern computer.
2. Automatic feeding sheet:
Large alone diameter cylinder type automatic material feeding frame. It can put two rolls material into the feeding frame in advance, about feeding there has two-row chain with tine translate the sheet that assurance of high speed operation and stability and correctness Greatly saves manpower and Ensure the smooth feed material at a high speed.
3. Heating part:
Heater adopts 60 pieces infrared ceramic heating bricks. Each heating brick has itself solid regulator to control temperature, saving more than 50% electricity compared with the traditional machine.
4. Mold forming:
The vacuum forming machine is adopt negative forming and the mold can make concave or convex mold are all no problem, it will be according the product to design.
5. The product cooling:
The machine is equipped with wind cool, water cool chasis and high speed cold water spraying device to speed up molding in order to assure the quality of moldings. Cooling delay, cooling time, Water spray delay, spray time, adjust the length of the time according to different products.
6. Demould:
It can adjust the size of bottom blowing, according to the length of time; Another is equipped with vibration demould, can be arbitrary adjust the wave frequency and amplitude, in view of the complex products difficult demoulding and setting.
7. Traction to send sheet:
Use the high power 2.2 KW motor Traction to send sheet: Adopt Taiwan decelerating motor, Import the encoder and the Man-machine interface pulse to control the precision and speed of feeding sheet; In addition, it can set time control the sheet length for standby.
8. About the cutting for the product:
Adopt the alone cutting machine or the on-line automatic cutting machine to punching the product sheet.
IV. The vacuum machine related picture preview.

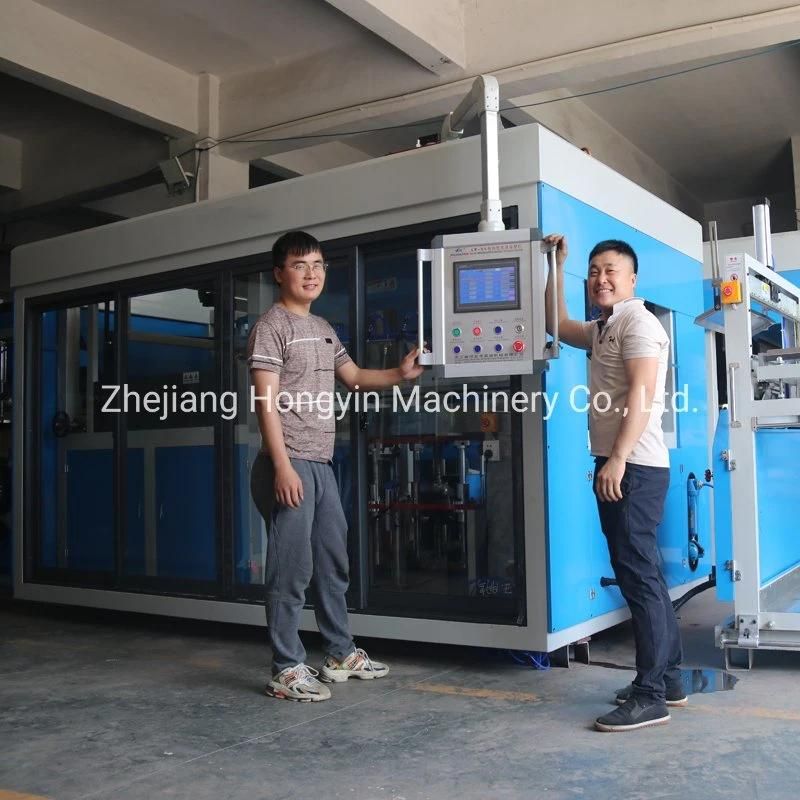

1. The vacuum forming machine in factory, we could be ready machine shipment within 30 days
2. Feeding part of vacuum forming machine
3.Operate table , you could do all adjust on screen

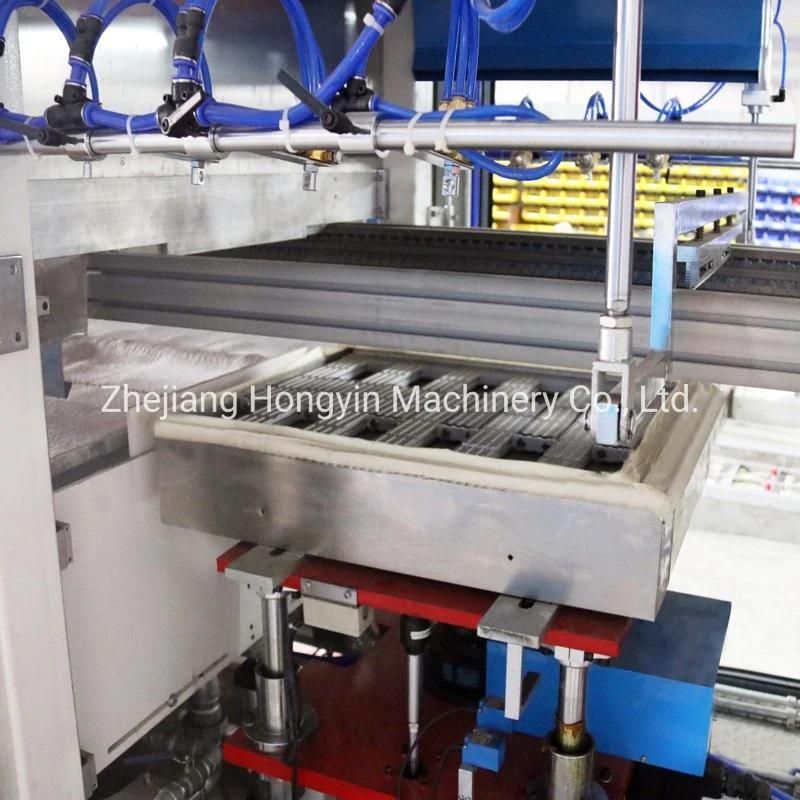

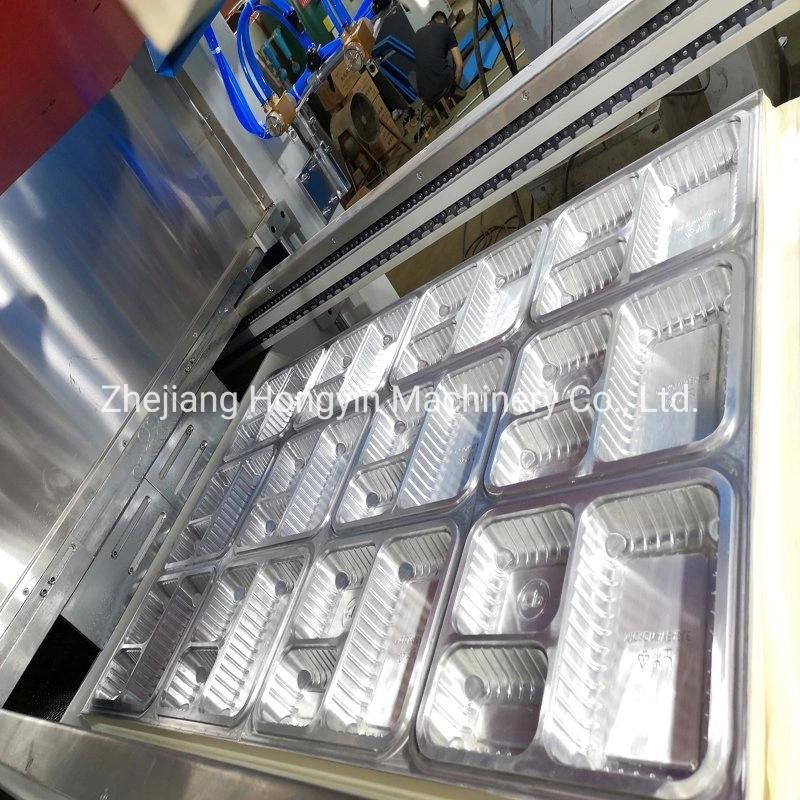

4. Forming station , you could be making different mold with different products,
its could be use copper mold, wooden mold and aluminmum mold on this machine
You could be make mold width of 400-720mm, length of 560-1220mm.

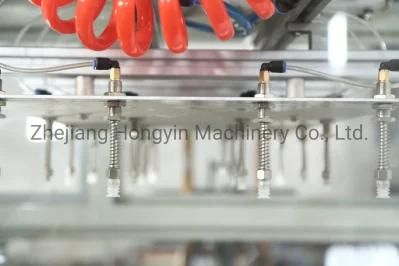

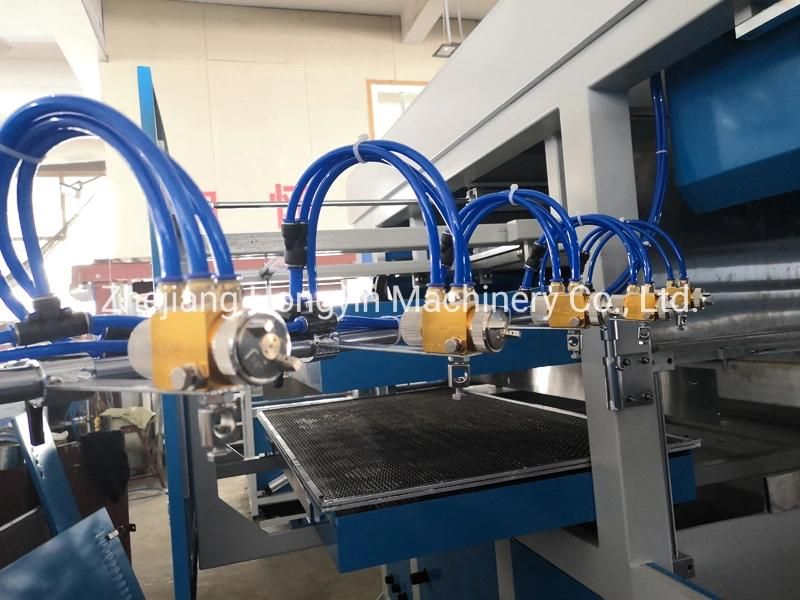

5. cooling spary of vacuum forming machine

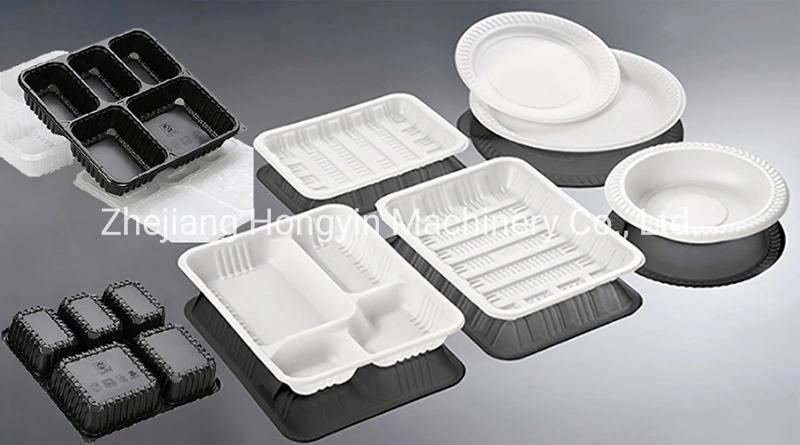

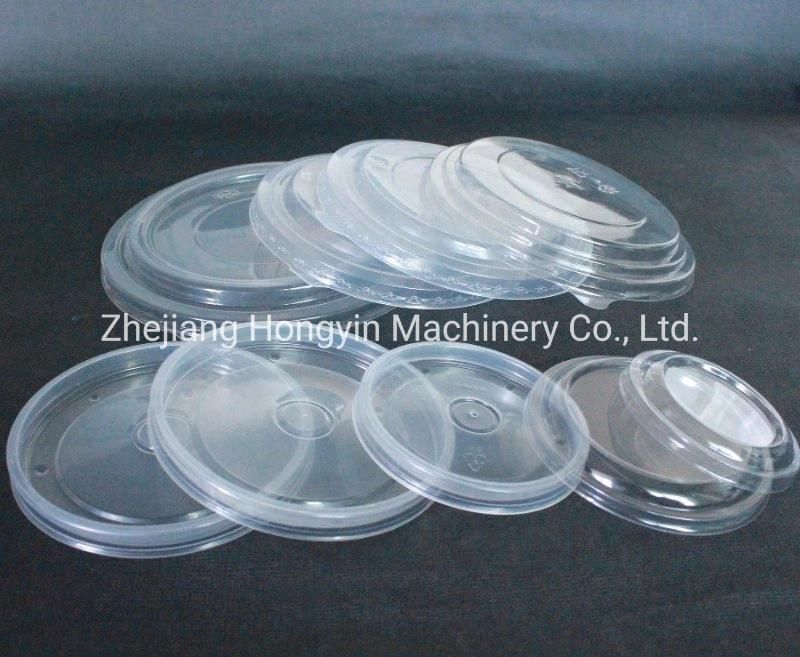

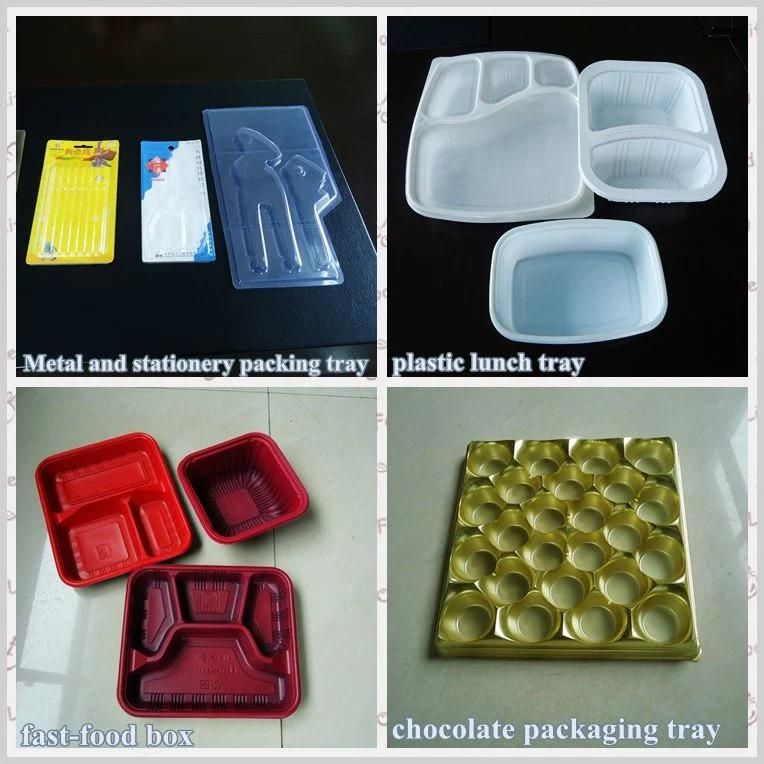

6. which products could be producing on vacuum forming machine , some samples for yoru reference.
V. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.
2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interested in our machine, please feel free and contact me.
Contacter: Michael Rao
