• Model NO.：YCQ-2L-4
• Heating Method：Infrared Tube Heat
• PLC Controller：Mitsubishi
• Full Computer Screen：Winwiew506L
• Pneumatic Components：Parker and Festo
• Color：Orange
• Bottle Material：Pet
• Driven Type：Pneumatic
• Transport Package：Wooen Pallet
• Specification：CE
• Trademark：ECENG
• Origin：Zhangjiagang, China
• HS Code：8477300000
• Production Capacity：5000-5200 Bottle Per Hour

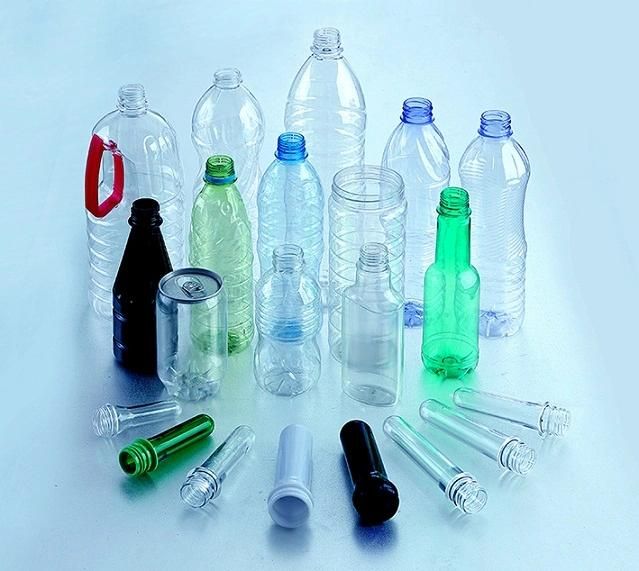

Bottle type specification
 cavity4output(PCS/HR)3000-4500Max. volume (L)2LBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter100mmBottle maximum height330mm
Power specifications
 Light tube quantity32pcsLight tube power1.25kwMaximum heating power40kwAll electric machine installation43kwActual consumption21.5kw
Air pressure specification
 Work pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption4000 Ltr/min
Frozen water specification
 Work pressure5-6 kg/cm2Temperature range10Consumption8000kcal/hrFrozen water flow88Ltr/minMachine specificationSize of the machine4.5x1.6x1.9 (m)Weight of the machine4.5ton

Technology Advantage
l.   Special design,high rigid compound die structure
2.  Wide adaptability, suitable for every type mould thickness
3.  Adjust convenience
4.  No mould rolling out
5.  More energy conservation,no need much air supply
6.  High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8.  All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9.  Hig dead-weigh, ensure the steady during the opeartion


Transportation:
   It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
   PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
   Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
   Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!
