• Model NO.：SJ-55,MB800
• Machine Weight：2500kg
• Certification：CE, ISO9001:2008
• Screw Diameter (mm)：50
• Film Width(mm)：200-600
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：60
• Die Size(mm)：60,120 High Speed Type
• Main Motor：Siemens Brand

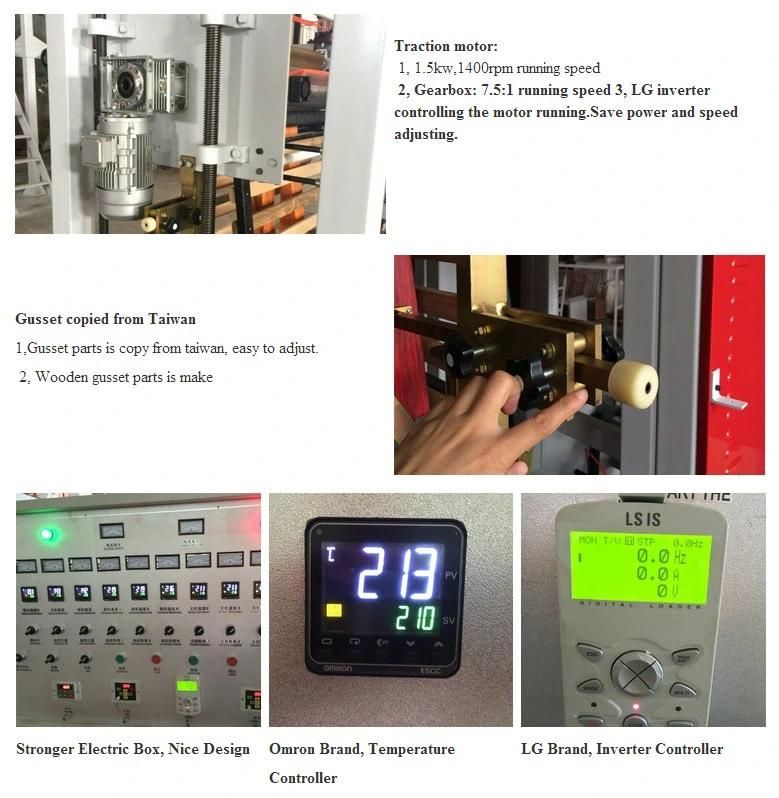

• Inverter：LG Brand
• Temperature Controller：Omron Brand

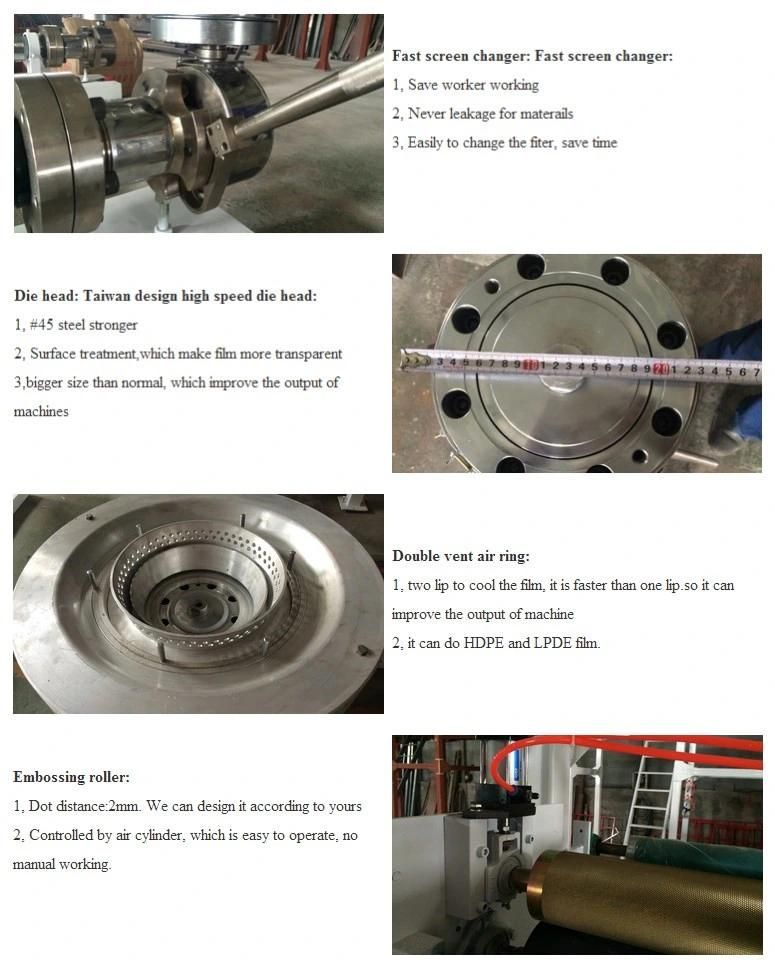

• Screen Changer：Yes
• Air Ring：Double Vent Air Ring
• Transport Package：Wooden Plate
• Specification：600mm
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ-55/MB800 Machine Weight 2500kg Certification CE, ISO9001:2008 Screw Diameter (mm) 50 Film Width(mm) 200-600 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 60 Die Size(mm) 60/120 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Screen Changer Yes Air Ring Double Vent Air Ring Transport Package Wooden Plate Specification 600mm Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

Taiwan Quality Plastic Sj Film Blow Machine

Machine Introduction

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones

 Machine Parameters

Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	60	70	80	90
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Cylinder Cooling (Kw)	0.25	0.25X1	0.25X2	0.25X2
Driving Motor(kw)	15	18.5	22	30
Total power(kw)	28	36	42	48
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5
Weight of Machine(kg)	2000kg	2500	2800	3000

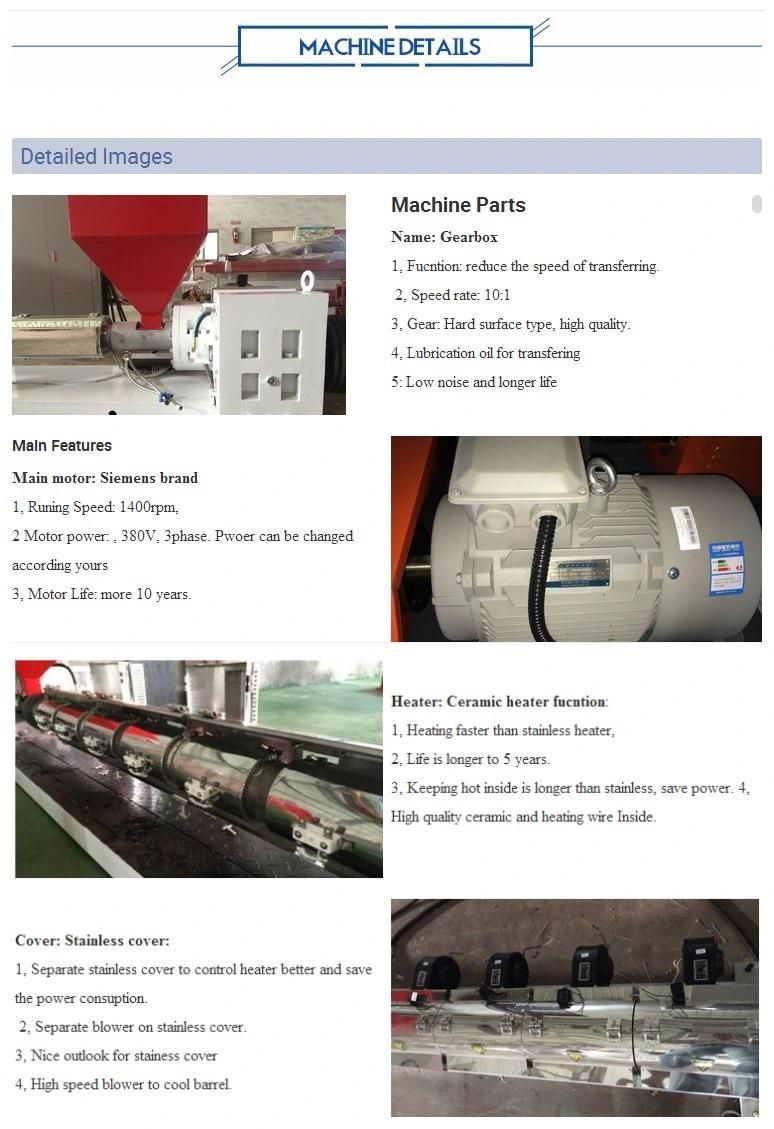

Machine Details








Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
